SS304L Wedge Wire screen casing pipe for oil well

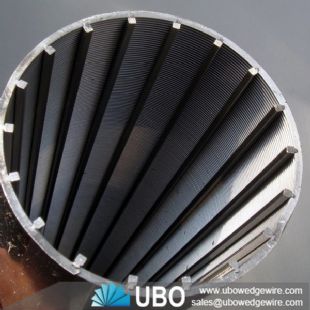

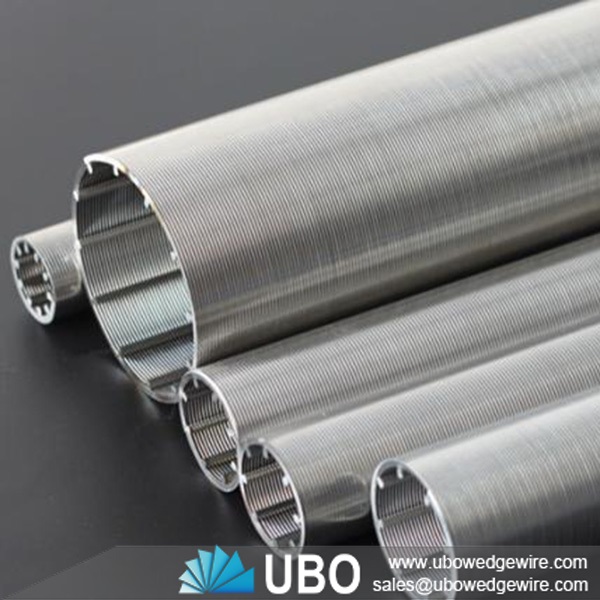

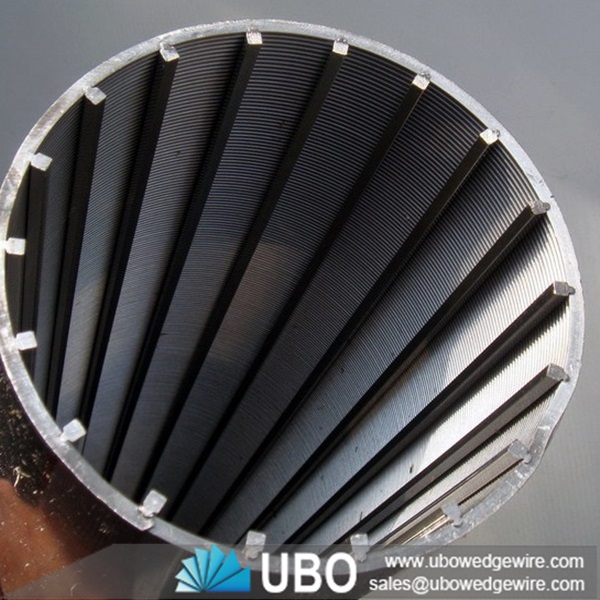

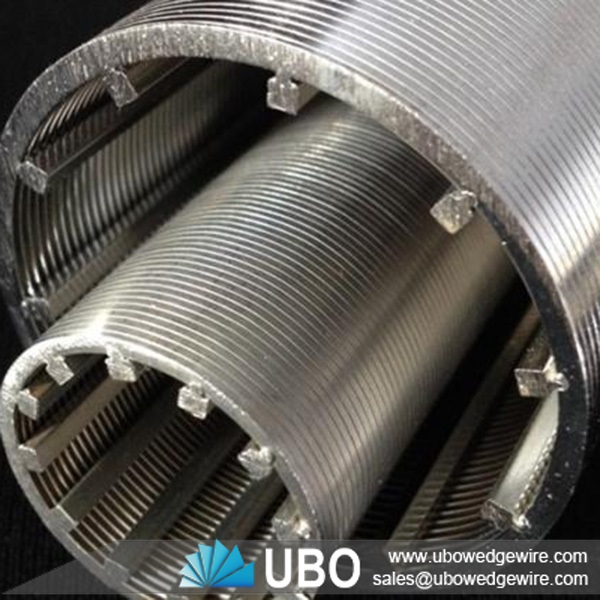

More Views

SS304L Wedge Wire screen casing pipe for oil wellSS304L Wedge Wire screen casing pipe for oil wellSS304L Wedge Wire screen casing pipe for oil well

SS304L Wedge Wire screen casing pipe for oil well

Category:Wedge Wire Application
Material:stainless steel302, 304, 316, 316L
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS304L Wedge Wire screen casing pipe for oil well

Wedge wire Wedge Wire screen consists of wedge-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded. so water well screen has sturdy constriction and good mechanical property. The wedge-shape section plane can avoid blockage, and make sure of the unimpeded water.the consecutive slot have more open area, and water well screen can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure, so wedge wire water well screen pipes can filter sand better. Meanwhile, the slot can change according to the real condition of the earth

SS304L Wedge Wire screen casing pipe for oil well

Applications for SS304L Wedge Wire screen casing pipe for oil well:

Wedge Wire screens are widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Features for SS304L Wedge Wire screen casing pipe for oil well:

-- Reduced costs, since wedge wire screens have a very long life.

-- Greater resistance to stresses of different pressure and temperature.

-- Maximum effective flow area & operating efficiency is maintained.

-- Costly downtime for cleaning plugged screens is minimize.

Technical Characteristics for SS304L Wedge Wire screen casing pipe for oil well:

-- High thread bonding strength with good anti-thread gluing ability.

-- The steel yield strength is bigger than API standard.

-- Big OD size, high steel grade with full size available

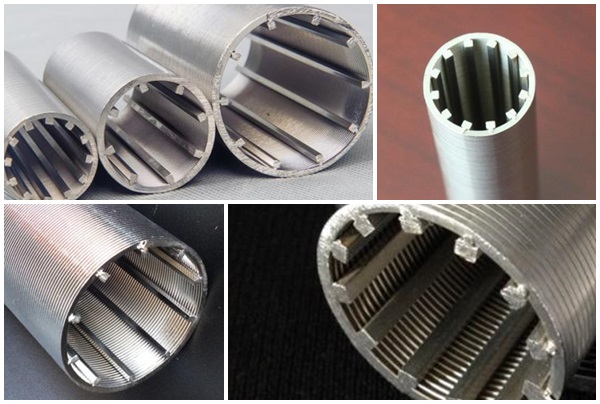

SS304L Wedge Wire screen casing pipe for oil well

Specifications of SS304L Wedge Wire screen casing pipe for oil well:

SS304L Wedge Wire screen casing pipe for oil well



SS304L Wedge Wire screen casing pipe for oil well



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

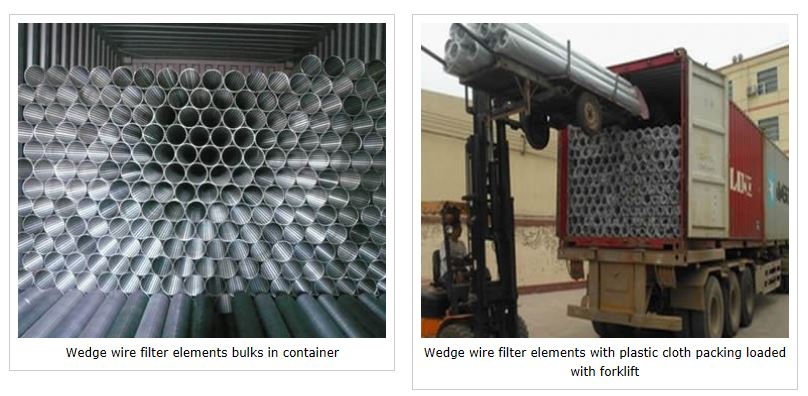

Packaging and Transportation of SS304L Wedge Wire screen casing pipe for oil well:

SS304L Wedge Wire screen casing pipe for oil well



SS304L Wedge Wire screen casing pipe for oil well



SS304L Wedge Wire screen casing pipe for oil well
