SS304 flanged profile wedge wire screen for industry

More Views

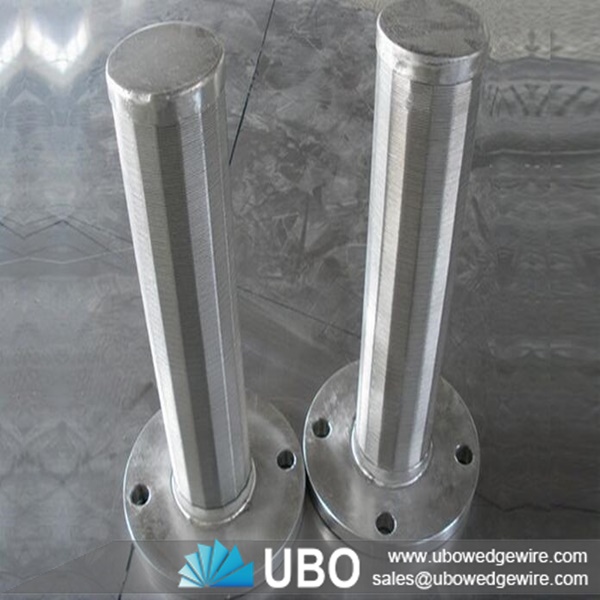

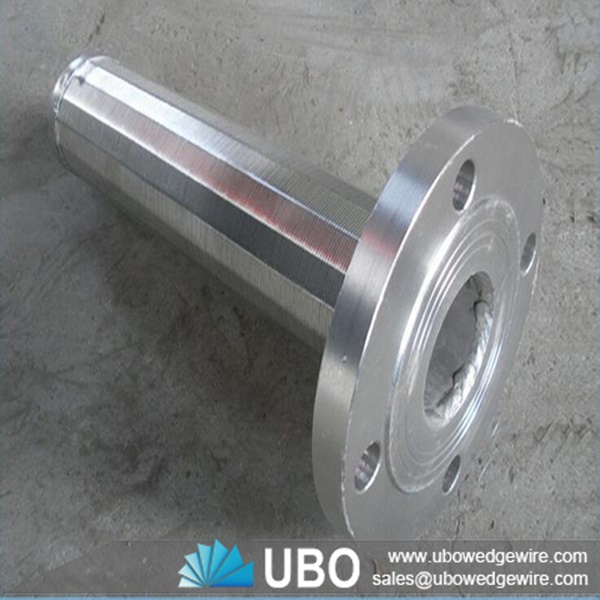

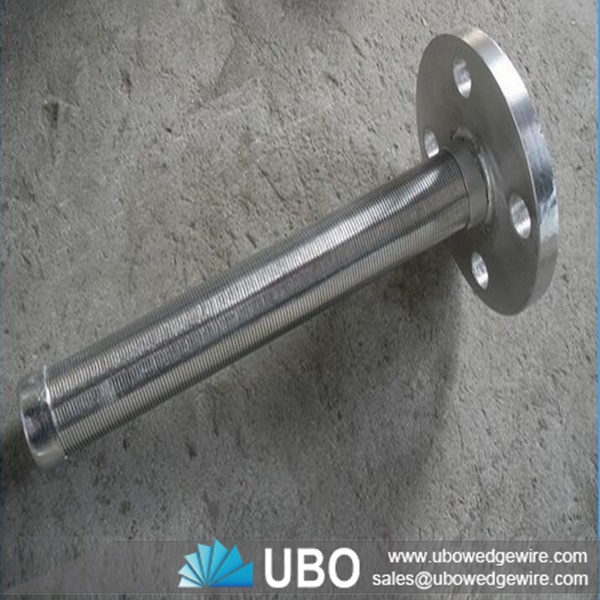

SS304 flanged profile wedge wire screen for industrySS304 flanged profile wedge wire screen for industrySS304 flanged profile wedge wire screen for industry

SS304 flanged profile wedge wire screen for industry

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:Liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS304 flanged profile wedge wire screen for industry

SS304 flanged profile wedge wire screen is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Resin Trap to keep the resin does not pass the filter if there is a leak from the filter / strainer / nozzle. So it can be detected / maintained so that the resin is not wasted.

Applications of SS304 flanged profile wedge wire screen

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features of SS304 flanged profile wedge wire screen

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation.

3) Reduce the abrasion of the pump.

         SS304 flanged profile wedge wire screen

Specifications of SS304 flanged profile wedge wire screen for industry:

Material: Metal

Hole Shape: Round

Filter Rating: more than 90%

Thickness: as per your need

Length: customer's requirement

Width: based on contract

profile wire: 1.5*2mm, 2*3 (mm)

support rod: 2*3mm 3*5mm 4*6mm

slot gauge: 0.05, 0.1, 0.2, 0.3, 0.5, 1.0.......

connection: flange or thread



Type

Slots mm

A mm

Flange DN

L1 mm

AM1

0.05, 0.1, 0.2,

 0.3, 0.5, 1.0

45, 57, 76, 89,

108, 133, 159, 219

40, 50, 65, 80,

 100, 125, 150, 200

442, 496, 547,

 600, 654, 705,

758, 812, 863,

916, 970, 1021

 1074, 1128, 1179,

 1232, 1286聽

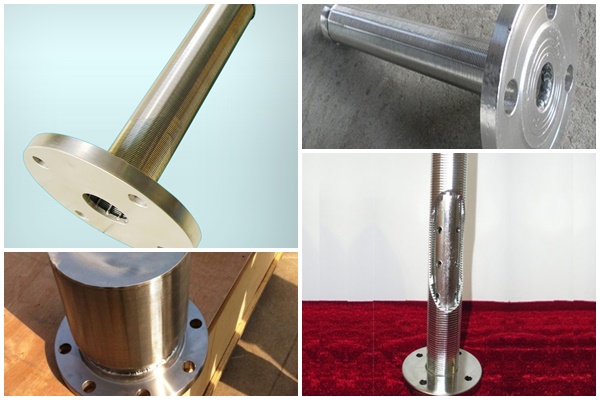

SS304 flanged Profile Wire Screen for remaining media

Packaging and Transportation of SS304 flanged profile wedge wire screen for industry:

transport
