SS304 all welded wedge wire wrapped screen drilling pipe

More Views

SS304 all welded wedge wire wrapped screen drilling pipeSS304 all welded wedge wire wrapped screen drilling pipeSS304 all welded wedge wire wrapped screen drilling pipe

SS304 all welded wedge wire wrapped screen drilling pipe

Category:Wedge Wire Application
Material:stainless steel
Properties:Stainless Steel Pipe
Application:oil well , water well ,deep well , geothermal well,control sand,liquid solids separation,water treatment,waste water treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

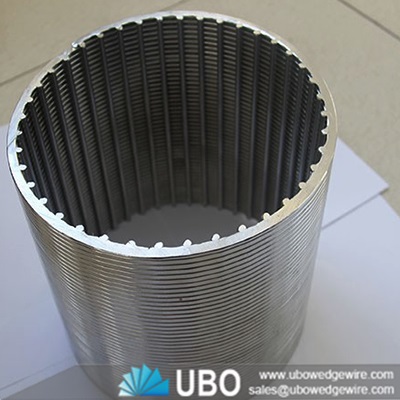

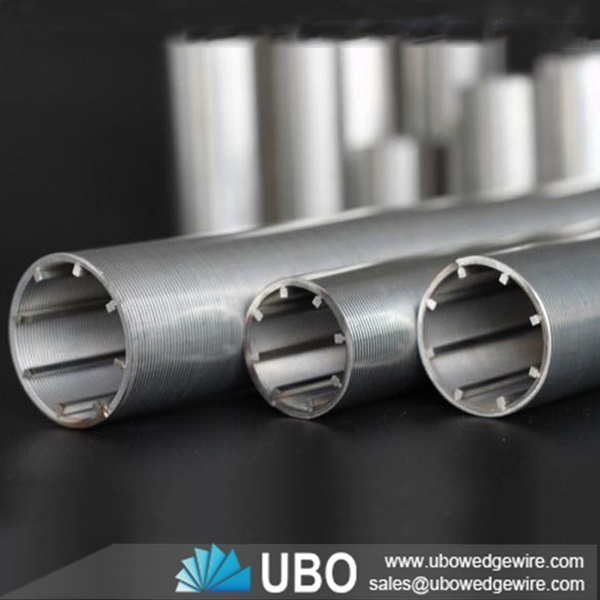

Details of SS304 all welded wedge wire wrapped screen drilling pipe

     Wedge Wire screen consist of V-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded. So Wedge Wire screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile ,the slot size can be changed according to the real condition of the earth.

SS304 all welded wedge wire wrapped screen drilling pipe

Use for SS304 all welded wedge wire wrapped screen drilling pipe:

oil well , water well ,deep well , geothermal well,control sand,liquid solids separation,water treatment,waste water treatment,filter element,the industrial wastewater treatment plants,dewatering equipment,power plant,chemical plant,dehydrate ,steel plant,nuclear power plant ,Pharmaceutical factory ,coal mine, waste water treatment system, Sea Water Desalination ,industrial and municipal Water ,Wastewater Treatment plants,drinking water treatment,potable water treatment,purified water treatment,boiler water conditioning,resin water treatment,Softening water treatment equipment ,wastewater treatment,sewage treatment,Composite ion exchanger.

Advantage for SS304 all welded wedge wire wrapped screen drilling pipe:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2.A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

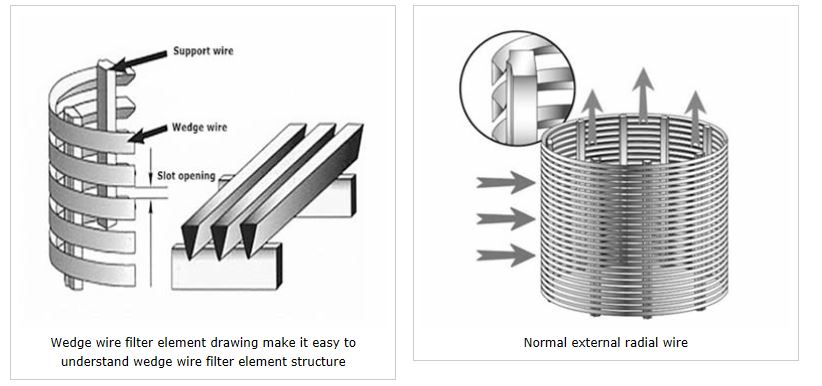

Construction for wedge wire wrapped screen:

1. We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.
2. The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3. After work for a period of time, the filter can be back flush. It can use for many times.


SS304 all welded wedge wire wrapped screen drilling pipe

SS304 all welded wedge wire wrapped screen drilling pipe

SS304 all welded wedge wire wrapped screen drilling pipe

Specifications of SS304 all welded wedge wire wrapped screen drilling pipe:

SS304 all welded wedge wire wrapped screen drilling pipe

Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

Packaging and Transportation of SS304 all welded wedge wire wrapped screen drilling pipe:

Package:

SS304 all welded wedge wire wrapped screen drilling pipe

SS304 all welded wedge wire wrapped screen drilling pipe

SS304 all welded wedge wire wrapped screen drilling pipe

Shipping:

SS304 all welded wedge wire wrapped screen drilling pipe
