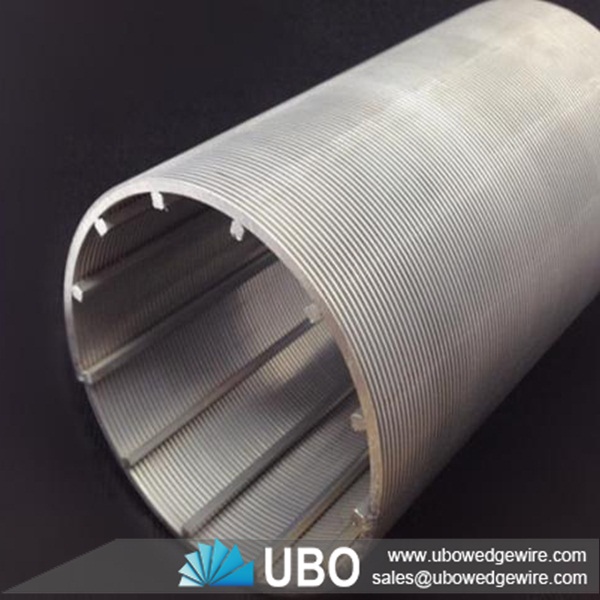

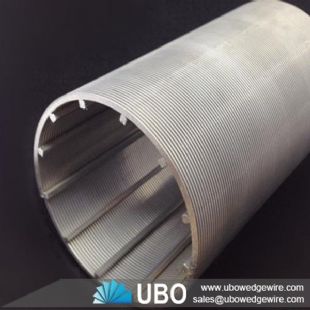

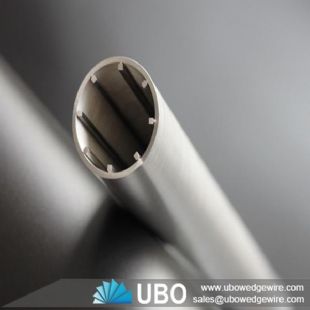

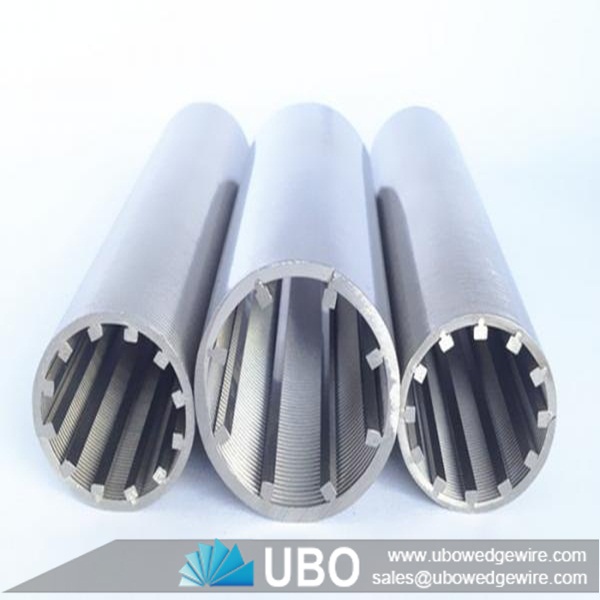

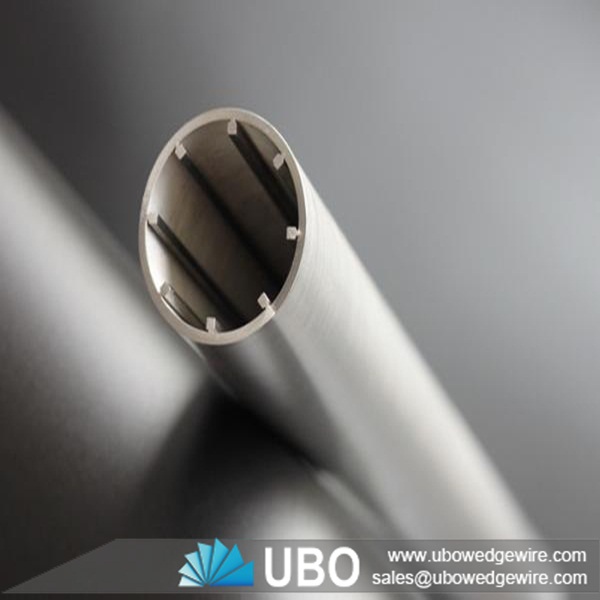

SS wedge wire filter screen pipe for industry filtration

More Views

SS wedge wire filter screen pipe for industry filtrationSS wedge wire filter screen pipe for industry filtrationSS wedge wire filter screen pipe for industry filtration

SS wedge wire filter screen pipe for industry filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire filter screen pipe for industry filtration

SS wedge wire filter screen pipes has a delicate structure and high open area, as well as accurate slot dimension. At the same time, it has characteristics of heat-resisting, anti-corrosive, good machine capability, long service life, safety and reliability and so on. It can be used in many kinds of medium filtering. Such as oil, chemical acid, the alkali liquid filters, the ethyl alcohol, etc.

Advantages of ss wedge wire filter screen pipe

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Usages of ss wedge wire filter screen pipe for industry filtration

The johnson screen pipe is a kind of filtered water tubing with the perforation. It can be used with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

              SS wedge wire filter screen pipe for industry filtration

Specifications of SS wedge wire filter screen pipe for industry filtration:

SS wedge wire filter screen pipe for industry filtration


Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded
