Quality Wedge Wire Screen Manufacturer in China

SS wedge wire circular sieve panel for filteration

More Views

SS wedge wire circular sieve panel for filterationSS wedge wire circular sieve panel for filterationSS wedge wire circular sieve panel for filteration

SS wedge wire circular sieve panel for filteration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

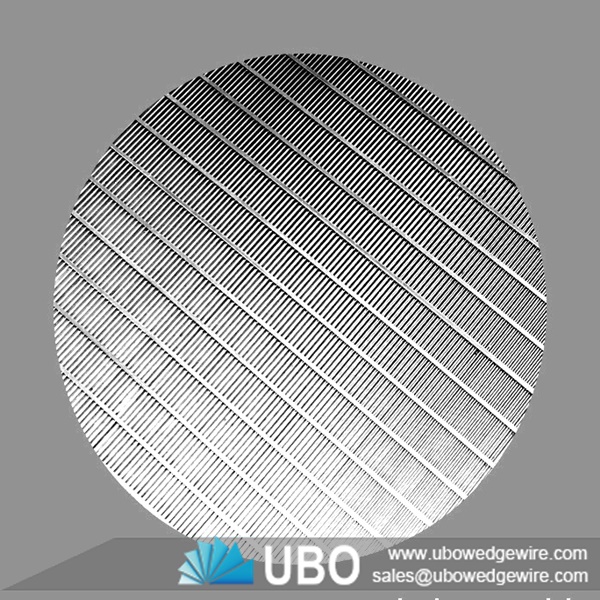

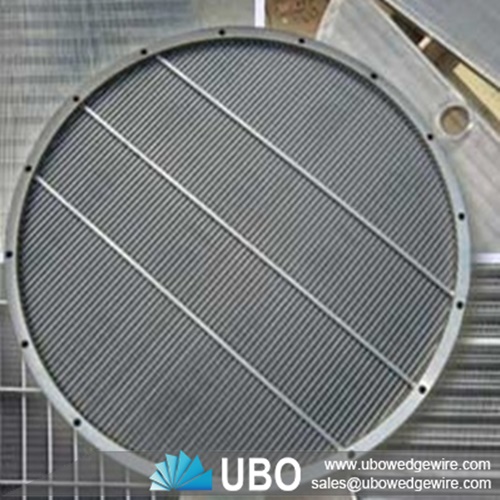

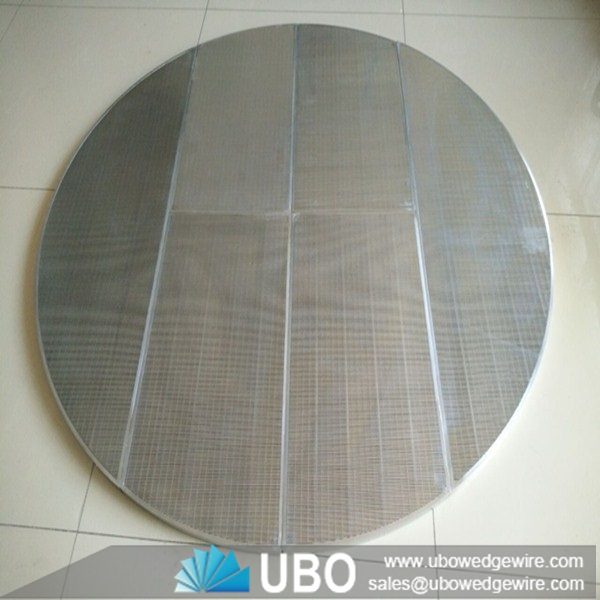

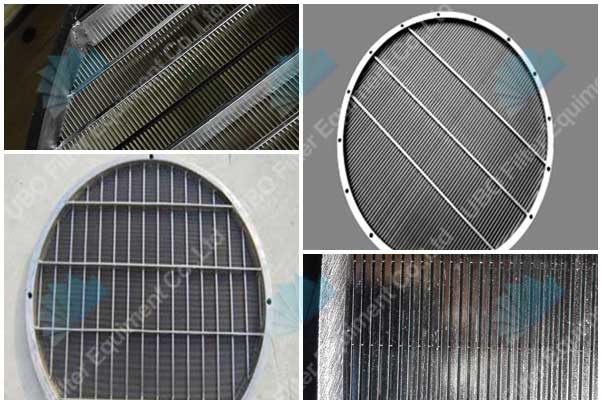

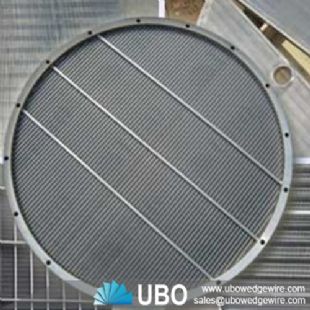

Details of SS wedge wire circular sieve panel for filteration

stainless steel wedge wire circular sieve panel  can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.


stainless steel wedge wire circular sieve panel can be designed to optimize the open area, strength and wear life for each application. The sieve plates are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

Features of SS wedge wire circular sieve panel for filteration

-- Smooth surface finish

-- Cut to any custom-made shape and designed to cater for your special needs

-- Designed to maximize the open area, strength and wear life to suit any application

-- Cost effective

Usages of SS wedge wire circular sieve panel for filteration

This johnson screen panel is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.

SS wedge wire circular sieve panel for filteration

Specifications of SS wedge wire circular sieve panel for filteration:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Thickness

as your request

Diameter

from 25mm to 1500mm.

End connection

 flanged or as your request

Packaging and Transportation of SS wedge wire circular sieve panel for filteration:

transportation
