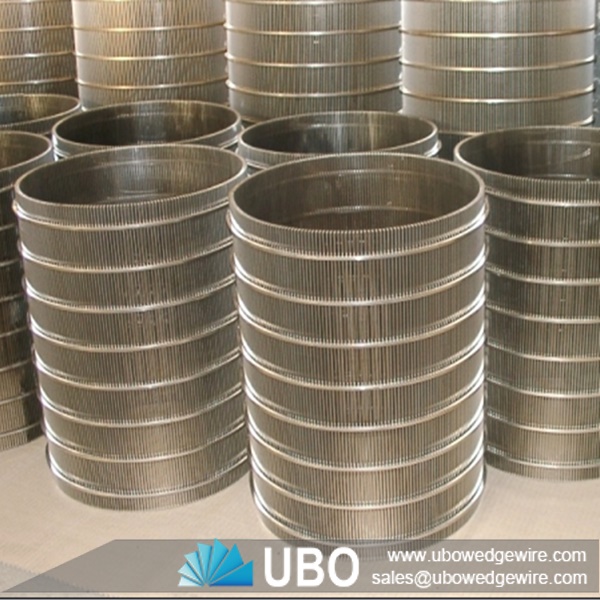

SS pressure screen basket for filtration

We are into supplying a wide range of pressure screen baskets, which is specially designed keeping in mind the requirements of paper industries. Pressure screen basket is the heart of the approach system of the modern paper machine with its special design and high precision in processing. The pre-net screen achieves its non-pulse operation. It can disperse both fiber filler and paper making aid and further fluidize them. It can also screen out remaining impurities in the stock and impurities from the broke system. It reaches its function of guaranteeing the quality of the stock. It can also meet all the operational requirements of the paper machine headbox.

Features of SS pressure screen basket for filtration

-- The wire shape is inverse triangle,it makes the pulp flows out amoothly,and decreases the resistance.

-- The two sharp angles of the wire like sharp knife,they can separate the fiber from the liquid.Thereby the capability and screening efficiency can be improved greatly.

-- The minimum wire width is 0.5mm,which can help to obtain the maximum open area.

Applications of SS pressure screen basket for filtration

1) Remove tiny fibers and impurities from the blak liquor.

2) Remove white water,recycle fibers.

Materials :SS 304,316,316L, Stainless steel and carbon steel.

Minmum slot : 20 mm

Length: max 6 meter

Diameter: 25mm-600mm

Wire diameter: 1.5x2mm,2x3mm,2.2x3.0mm,2.3x3.0mm,2.3x3.5mm......3.0x5.0mm

Support rod: 3.0x4.0mm........3.8x4.3mm, 5.0x8.0mm

Application: application in water treatment, oilfield,mining, food industry, chemical industry, papermaking industry, decoration.

Surface treatment: polishing, chroming

Characteristics: High filtering accuracy, High strengh and durability
