SS Resin Traps Collectors for Vacuum Infusion

More Views

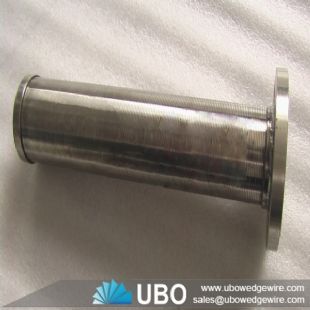

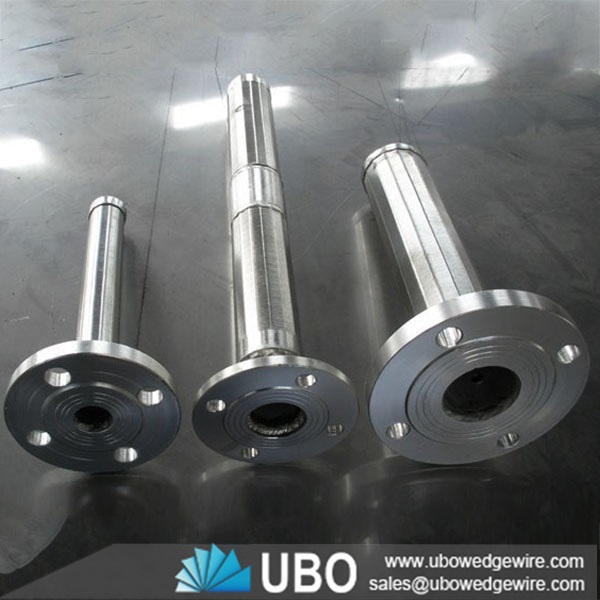

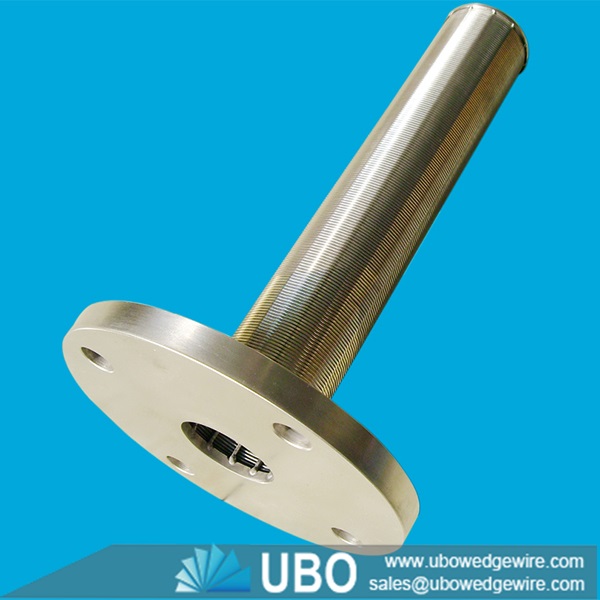

SS Resin Traps Collectors for Vacuum InfusionSS Resin Traps Collectors for Vacuum InfusionSS Resin Traps Collectors for Vacuum Infusion

SS Resin Traps Collectors for Vacuum Infusion

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Resin Traps Collectors for Vacuum Infusion

SS316 Resin Trap Screen is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Application for SS Resin Traps Collectors for Vacuum Infusion:

Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. Haixing offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Description for SS Resin Traps Collectors for Vacuum Infusion:

1) Resin Trap to keep the resin does not pass the filter if there is a leak from the filter / strainer / nozzle. so it can be detected / maintained so that the resin is not wasted.
2) Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems. Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.


The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.


In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

SS Resin Traps collectors for vacuum infusion

Specifications of SS Resin Traps Collectors for Vacuum Infusion:

Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2

0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150, 200

442,496,547, 600,654,705,

758,812,863, 916,970,1021,

1074,1128,1179, 1232, 1286


Packaging and Transportation of SS Resin Traps Collectors for Vacuum Infusion:

SS Resin Traps collectors for vacuum infusion
