SS 316L media traps for remaining media in ion exchangers

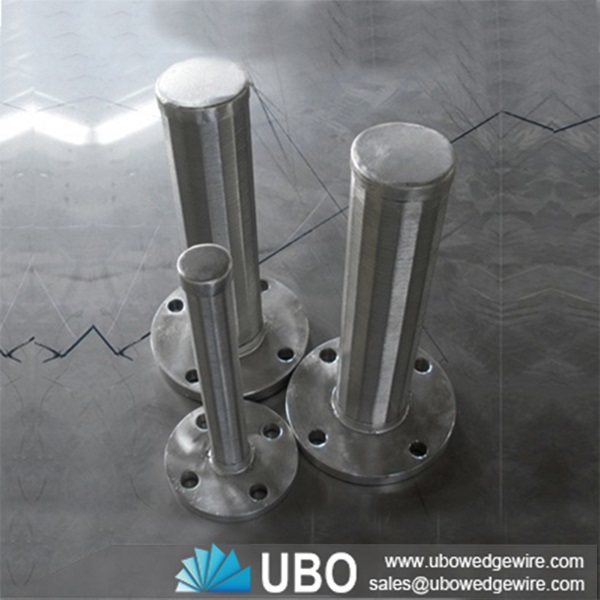

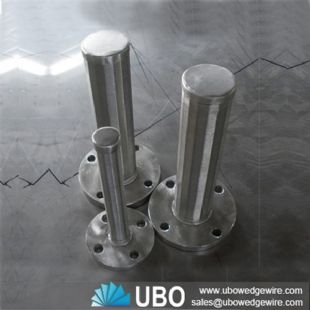

A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Applications for SS 316L media traps for remaining media in ion exchangers:

wedge wire candle filter trap used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Features for SS 316L media traps for remaining media in ion exchangers:

wedge wire candle filter trap predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

Pressure loss:0.01-0.03Mpa
Working power supply:380v,AC 50HZ
Filtration precision:less than 6mm
Water volume for back-washing:less than 3% design flow
Hole shape:round
Length:R1 R2 R3,up to 6m
Wire type:wedge wire
Filter rating:60% up
Slot size:0.1min
Width:1000mm
Thickness:10mm
Diameter:25-1500mm
Surface treatment:polishing,chroming
