Quality Wedge Wire Screen Manufacturer in China

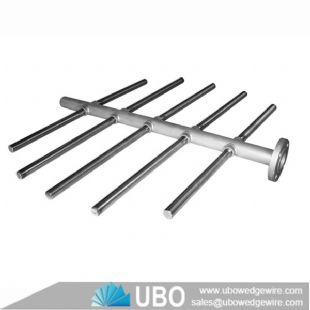

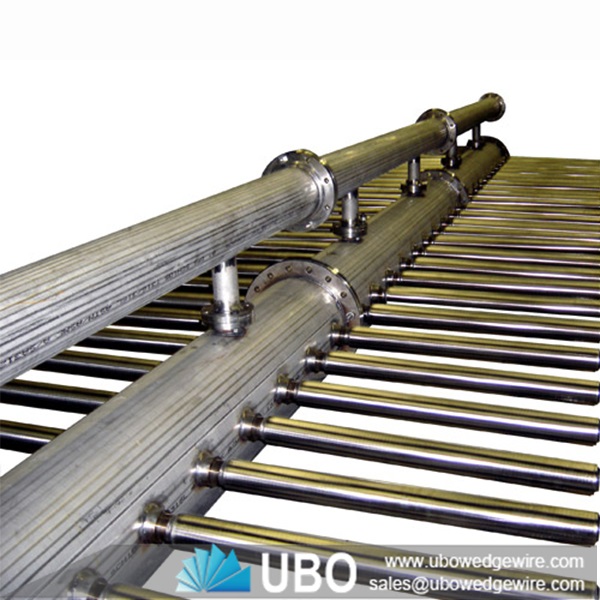

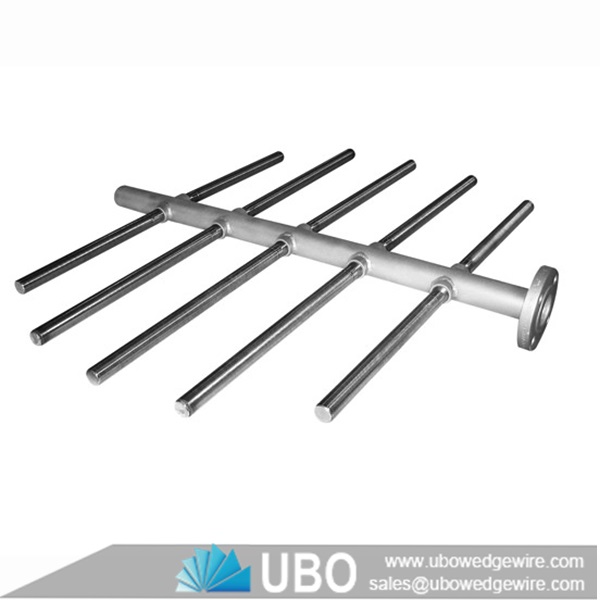

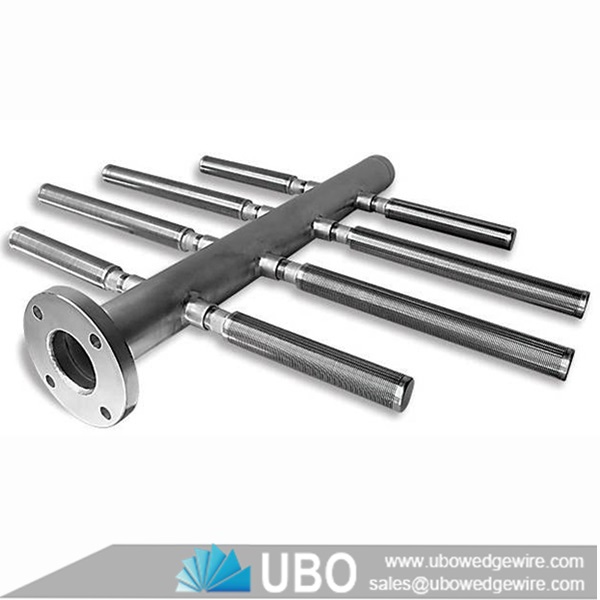

SS 304L Hub and Header Lateral for Water Treatment

More Views

SS 304L Hub and Header Lateral for Water TreatmentSS 304L Hub and Header Lateral for Water TreatmentSS 304L Hub and Header Lateral for Water Treatment

SS 304L Hub and Header Lateral for Water Treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS 304L Hub and Header Lateral for Water Treatment

stainless seel header lateral can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.


Application of SS 304L Hub and Header Lateral for Water Treatment

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantage of SS 304L Hub and Header Lateral for Water Treatment

Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

SS 304L Hub and Header Lateral for water treatment

Specifications of SS 304L Hub and Header Lateral for Water Treatment:


Header pipe
Diameter
50,53,57,60,65,70,75,80,100,125,200,245,300,320,360,400,450,500,550,600mm
Slot
0.1,0.15, 0.2,0.25,0.3,0.5…..15 mm
Length
50~6000mm
Material
Stainless steel or low carbon galvanized steel (LCG)
Connection Flange or screw thread

Packaging and Transportation of SS 304L Hub and Header Lateral for Water Treatment:
