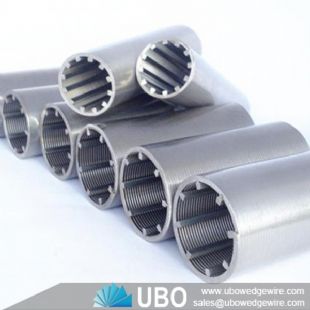

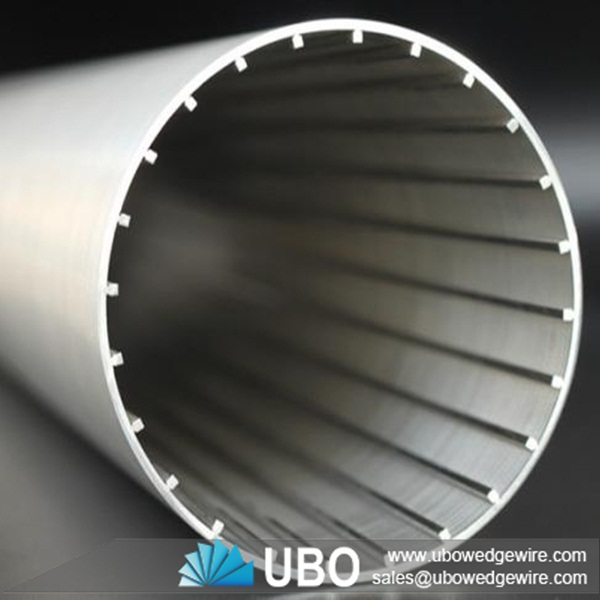

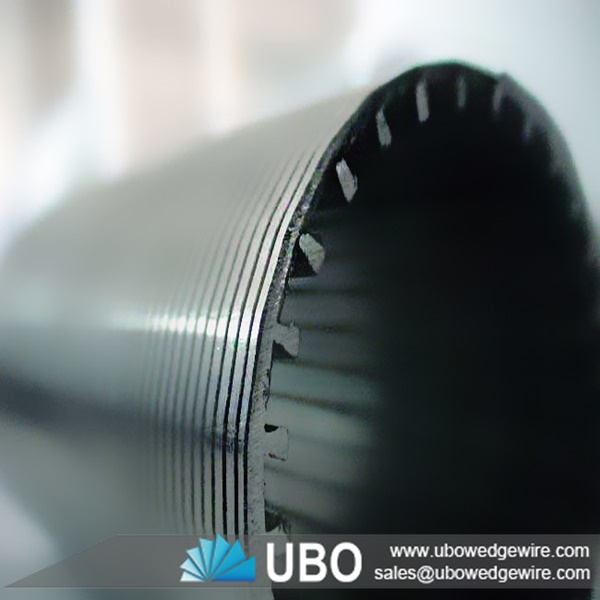

SS 304 wire screen tube for filtration

More Views

SS 304 wire screen tube for filtrationSS 304 wire screen tube for filtrationSS 304 wire screen tube for filtration

SS 304 wire screen tube for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, liquid filtration, industry filtration.etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS 304 wire screen tube for filtration

SS 304 wire screen tube is a kind of filtered water tubing with the perforation, it can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantages of SS 304 wire screen tube for filtration

1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5) Long live: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

Application of SS 304 wire screen tube for filtration

With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metal and wedge wire tube outside filter.

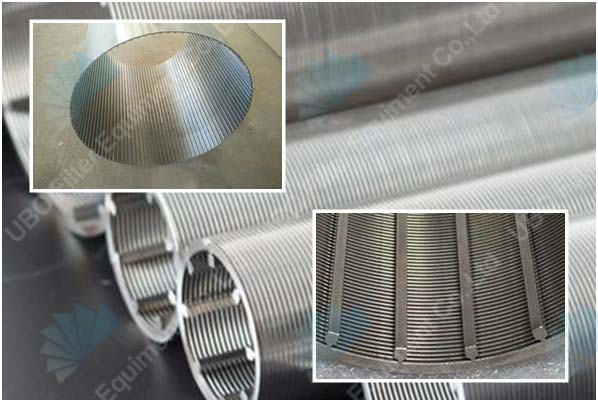

SS 304 wire screen tube for filtration

Specifications of SS 304 wire screen tube for filtration:

Specification(wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

from 25mm to 1200mm.

SS 304 wire screen tube for filtration

Packaging and Transportation of SS 304 wire screen tube for filtration:

SS 304 wire screen tube for filtration
