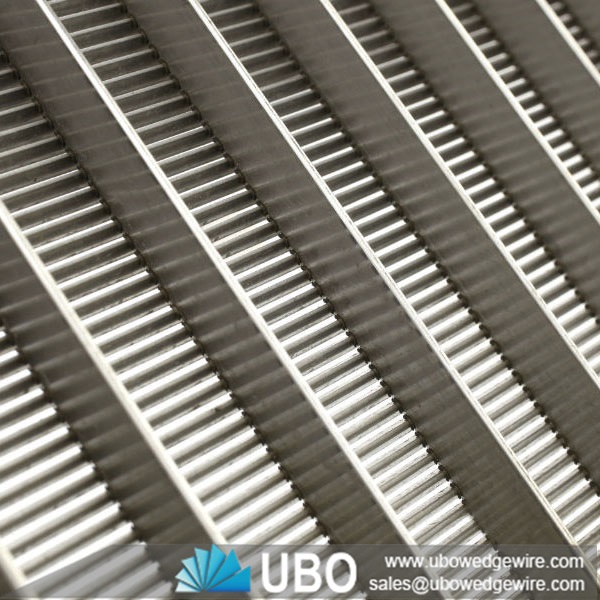

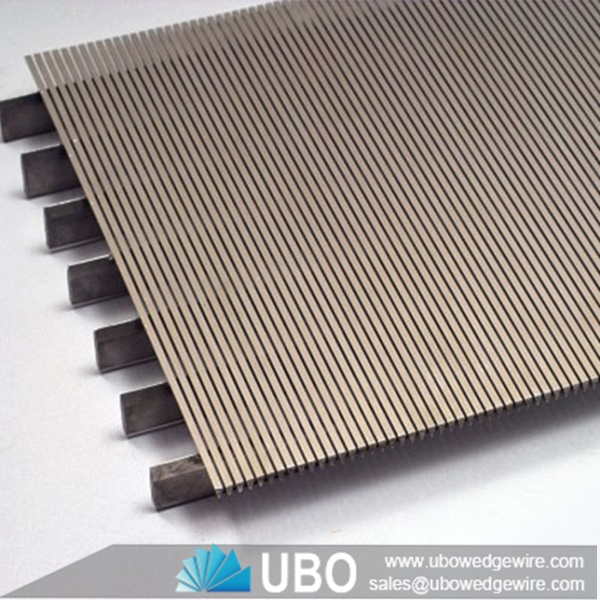

SS 304 deep water well flat wedge wire screen panel

More Views

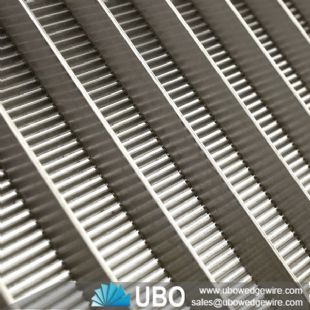

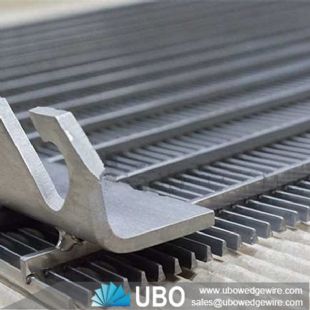

SS 304 deep water well flat wedge wire screen panelSS 304 deep water well flat wedge wire screen panelSS 304 deep water well flat wedge wire screen panel

SS 304 deep water well flat wedge wire screen panel

Category:Wedge Wire Application
Material:stainless steel
Properties:Wedge wire screen
Application:he water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS 304 deep water well flat wedge wire screen panel

     Wedge wire screen, another name mine screen mesh. According to the shape of the profile wire is also called wedge wire screen, v wire mine screen mesh, triangular ore screen mesh, trapezoidal wire screen mesh. It’s a kind of metal wire mesh structure components used in sieving and filter.

SS 304 deep water well flat wedge wire screen panel

Application for SS 304 deep water well flat wedge wire screen panel:

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Characteristics for SS 304 deep water well flat wedge wire screen panel:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Technical patameter for SS 304 deep water well flat wedge wire screen panel:

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

SS 304 deep water well flat wedge wire screen panel

SS 304 deep water well flat wedge wire screen panel

Specifications of SS 304 deep water well flat wedge wire screen panel:

SS 304 deep water well flat wedge wire screen panel

Surface profiles
Support profiles
Min.diam. in mm
Min. slot width in mm
10S
Q25
21
0.10
11S
22S or Q35
23
0.03
12S
22S
30
0.05
12S
Q25
23
0.03
12S
Q35
30
0.05
18S
22S or Q35
30
0.05
18S
Q25
25
0.03
18S
D45
300
0.20
18S
10x3
300
0.20
22S
22S or Q35
45
0.10
22S
D45 or 10x3 or 25x3
300
0.20
28S
Q35
215
0.20
28S
D45 or 10x3 or 25x3
300
0.20
34S
Q35
300
0.20
34S
D45
300
0.20
34S
10x3 or 25x3
300
0.20
42S
Q35 or D45
300
0.20
42S
10x3 or 25x3
300
0.20

Packaging and Transportation of SS 304 deep water well flat wedge wire screen panel:

SS 304 deep water well flat wedge wire screen panel
