Pulp And Paper Use Stainless Steel Wire Wrapped Screen

More Views

Pulp And Paper Use Stainless Steel Wire Wrapped ScreenPulp And Paper Use Stainless Steel Wire Wrapped ScreenPulp And Paper Use Stainless Steel Wire Wrapped Screen

Pulp And Paper Use Stainless Steel Wire Wrapped Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:drum screen
Application:waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Pulp And Paper Use Stainless Steel Wire Wrapped Screen

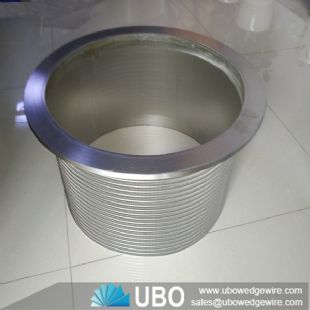

paper pulp wedge wire pressure screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding, easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation etc.

Advantages for Pulp And Paper Use Stainless Steel Wire Wrapped Screen :

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone

2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.



Applications for Pulp And Paper Use Stainless Steel Wire Wrapped Screen:



wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.



Features for Pulp And Paper Use Stainless Steel Wire Wrapped Screen:



Reducing the total cost of screening
We have thoroughly analyzed the costs of screening for a variety of furnishes and how these costs relate to one another.We have the experience and the products to attack the major cost factors helping you reduce the total cost of screening without sacrificing reliability or performance.


Reducing energy
Screen energy consumption is primarily a function of rotor speed and design. Optimization Sinostar wire shape with the existing rotor can significantly reduce the screen Thickening Factor (TF). A lower TF will result in better screen runnability.Often the existing rotor speed can then be reduced, saving energy without diminishing screening efficiency or capacity.


Improving capacity
Reducing wire width increases the open area of the screen cylinder without reducing slot size. The result is a screen with significantly higher capacity and no loss in efficiency. We have the largest selection of narrow wires available.
Increasing efficiency


Both the wire width and profile shape can be optimized to improve efficiency, based upon the contaminant that is targeted for removal. The screen cylinder's open area determines the passing velocity, which influences the removal of deformable debris(stickies). Smaller debris is more effectively screened out by utilizing smaller slots.

Pulp And Paper Use Stainless Steel Wire Wrapped Screen

Specifications of Pulp And Paper Use Stainless Steel Wire Wrapped Screen:

Pulp And Paper Use Stainless Steel Wire Wrapped Screen

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of Pulp And Paper Use Stainless Steel Wire Wrapped Screen:

Pulp And Paper Use Stainless Steel Wire Wrapped Screen
