Profile wire slotted tube

More Views

Profile wire slotted tubeProfile wire slotted tubeProfile wire slotted tube

Profile wire slotted tube

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Profile wire slotted tube

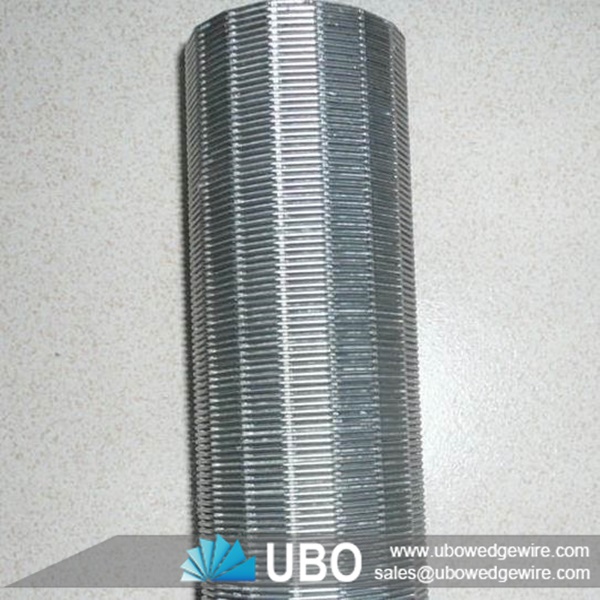

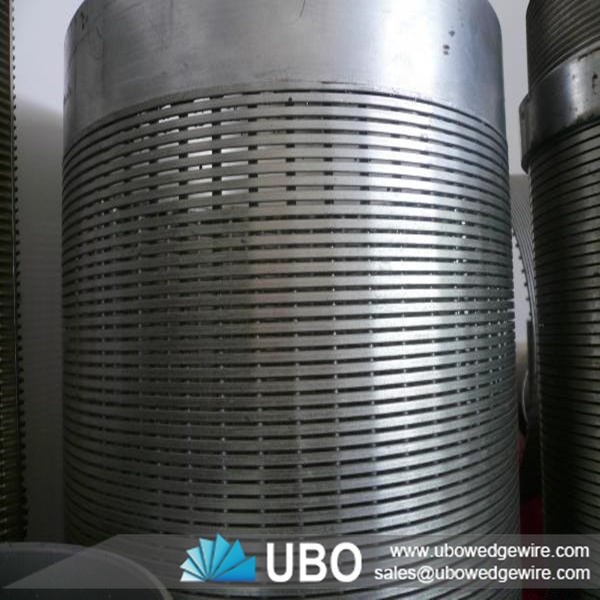

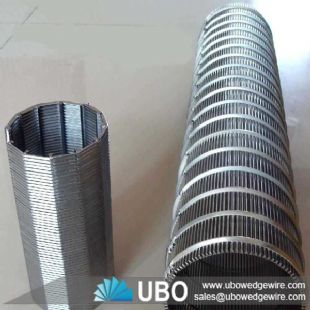

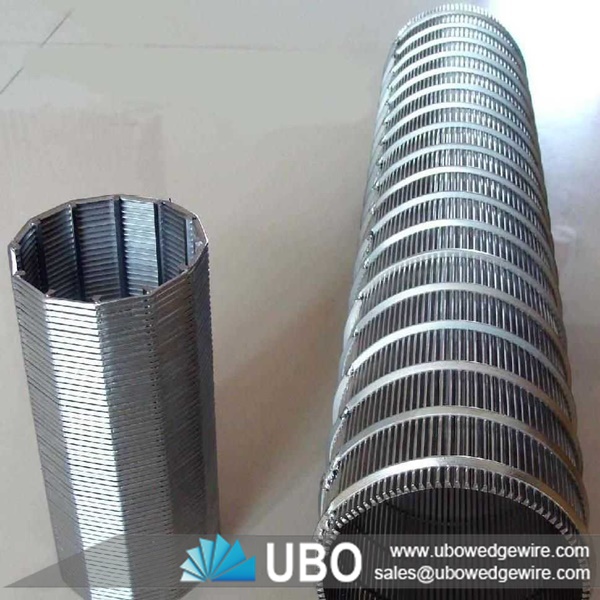

Profile wire slotted tubes are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.

Slot Tubes are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments and/or reinforcements.

Features of Profile wire slotted tube

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

Avoids clogging and ensures uninterrupted flow.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Styles of connection: by welding or by threaded male/female coupling.

Standard length: 1m-5.85m

Uses of Profile wire slotted tube

Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

        Profile wire slotted tube

Specifications of Profile wire slotted tube:



Surface Profiles Support Profiles Min. diam. mm Min. slot width mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35 30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10 × 3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10 × 3 or 25 × 3 300 0.20
28S Q35 215 0.20
28S D45 or 10 × 3 or 25 × 3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10 × 3 or 25 × 3 300 0.20
42S Q35 or D45 300 0.20
42S 10 × 3 or 25 × 3 300 0.20

Diameters

Outside diameter in mm Number of support profiles
30 8
45 10
57 12
70 18
85 18
97 20
110 24
137 30
164 36
215 48
268 48
305 40
380 48
460 60
510 64
625 80
914 180

Standard tolerances (tighter tolerances are possible on request through the use of special techniques).

Slot Size: ± 0.030mm
(max. ± 0.030)
± 0.1mm
(max. ± 0.2)
for O.D. ≤ 300mm

for O.D. > 300mm
Diameter ± 0.3mm
± 0.5mm
± 2.5mm
Ø < 164mm
164 < Ø < 300mm
Ø > 300mm
Length ± 2mm
± 4mm
Ø ≤ 300mm
Ø > 300mm

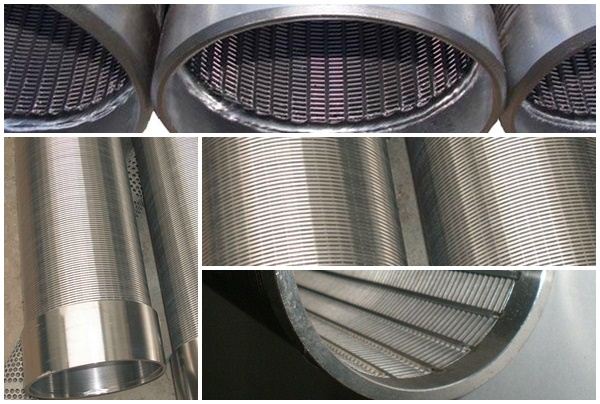

Profile wire slotted tube

Packaging and Transportation of Profile wire slotted tube:

Profile wire slotted tube
