Parabolic Curve Filter Screen for Paper Machine

More Views

Parabolic Curve Filter Screen for Paper MachineParabolic Curve Filter Screen for Paper MachineParabolic Curve Filter Screen for Paper Machine

Parabolic Curve Filter Screen for Paper Machine

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, food, beer euipment, papermaking industry etc.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Parabolic Curve Filter Screen for Paper Machine

Parabolic Curve Filter Screen can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer line to capturing solids from effluents.

A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

Features of Parabolic Curve Filter Screen for Paper Machine

-- Energy efficient--operate with no moving parts and with no energy input

-- Space effficient-- treats up to 122 liters per second per square meter of floor space

-- Quite operation--no moving parts mean no mechanical or electrial vibrations

-- Accurate size-- can be used for sizing solid particles down to 0.2mm

Applications of Parabolic Curve Filter Screen for Paper Machine

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

Used for fiber removal in Starch industry.

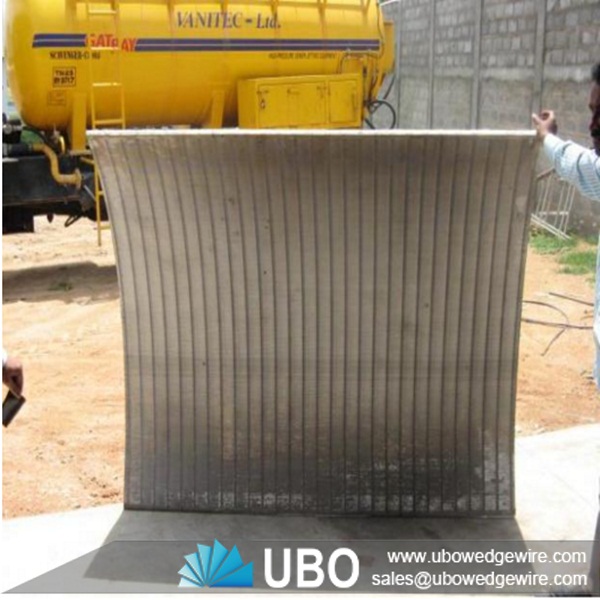

Parabolic curve filter screen for paper machine

Specifications of Parabolic Curve Filter Screen for Paper Machine:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º,30º,45º,60º or as your requirement

End connection

Plain beveled ends, flanged or threaded couplings

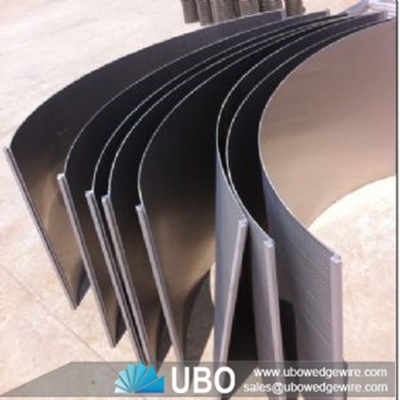

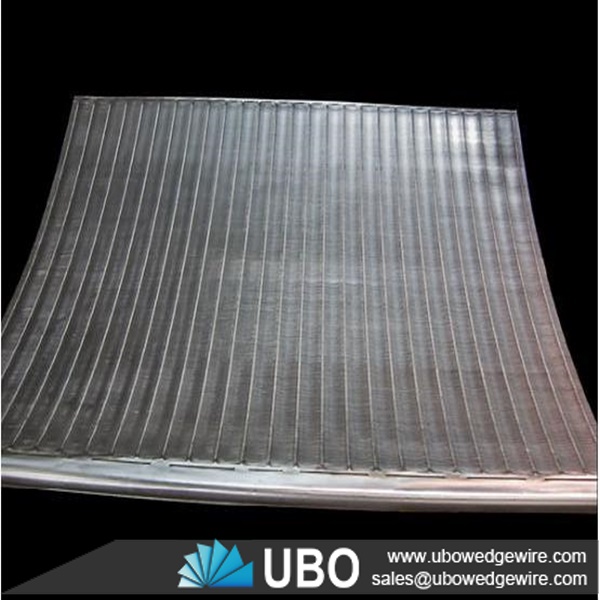

Parabolic curve filter screen for paper machine

Packaging and Transportation of Parabolic Curve Filter Screen for Paper Machine:

Package: in wood case

Delivery Time: 5-25 days
