Quality Wedge Wire Screen Manufacturer in China

Paper Pressure Screens at Best Price

More Views

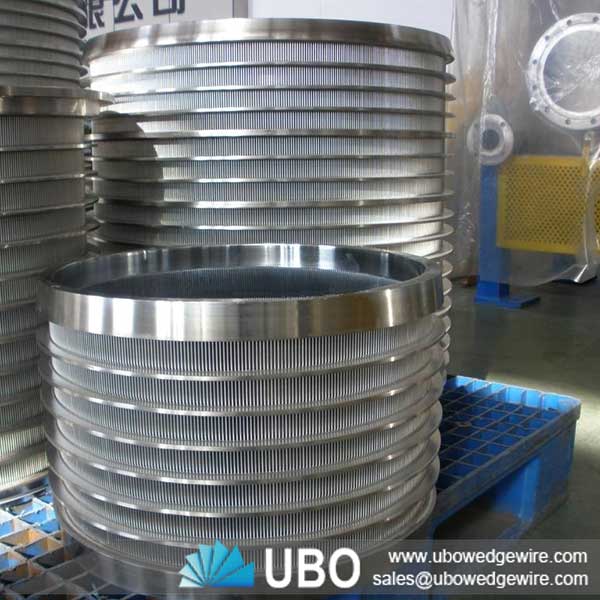

Paper Pressure Screens at Best Price

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:paper processing,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Paper Pressure Screens at Best Price

The function of a pressure screen in a paper machine thin-stock recirculation system is to remove shives (fiber bundles) and other large, hard contaminants from the furnish.

Paper mill pressure screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

Characteristic of Paper Mill Pressure Screens

1.) No easy to be blocked;
2.) High filtering accuracy, high strengh and durability;
3.) Special type could be customed.



Conventional pressure screens use baskets with either slots or holes to admit the fibrous "accepts" flow and reject the contaminants. Slotted screens usually have a sculptured pattern that helps fibers to become aligned and pass through the screen. Pressure screens are equipped with various types of rotors to continuously redisperse any fibers that start to accumulate on the screen surface. Because fibers can pass through a slotted screen individually, but not as fiber flocs, papermakers sometimes choose to add retention aids ahead of pressure screens in order to achieve a favorable balance of formation uniformity and adequate retention of fine particles.

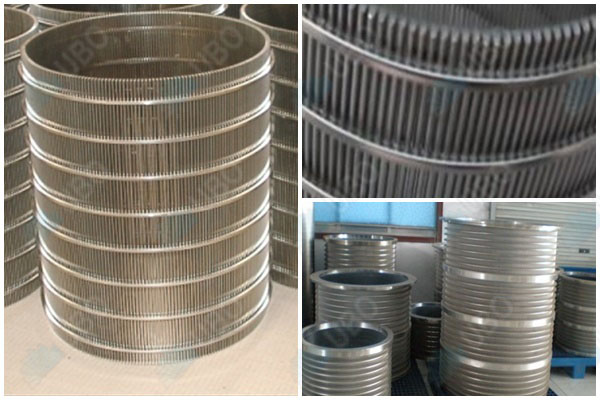

       Paper mill pressure screens

Specifications of Paper Pressure Screens at Best Price:

Type:Filter Elements
Material:Metal
Hole Shape:Square
Filter Rating:more than 98%
Thickness:0.3mm-30mm
Length:0.5-6m
Width:25mm--600mm
lfxs:Paper Mill Pressure wedge wire Screens
slot:0.05,.01 0.2 0.3 0.5 1.0.....60mm
wire diameter:1.5x2mm,2x3mm,2.2x3.0mm,2.3x3.0mm,2.3x3.5mm......3.0x5.0mm
support rod:3.0x4.0mm........3.8x4.3mm, 5.0x8.0mm
Technique:welded
Coating:Galvanized/Polishing
shape:tubeless

Packaging and Transportation of Paper Pressure Screens at Best Price:

packing
