Nozzle Assembly for Environmental Water Treatment Technology

More Views

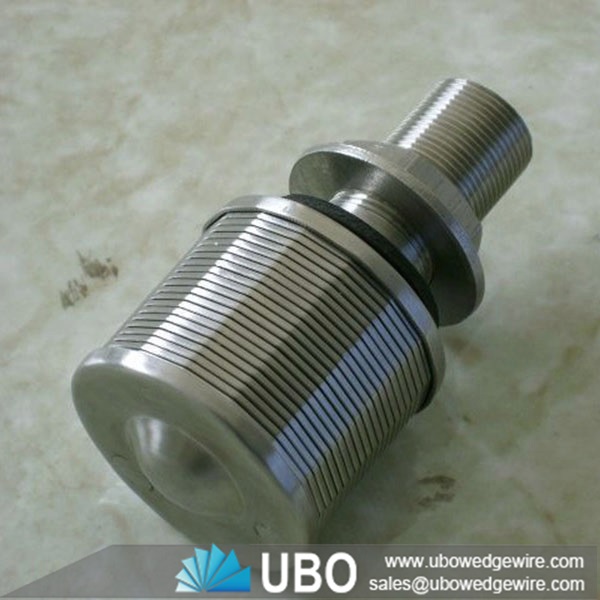

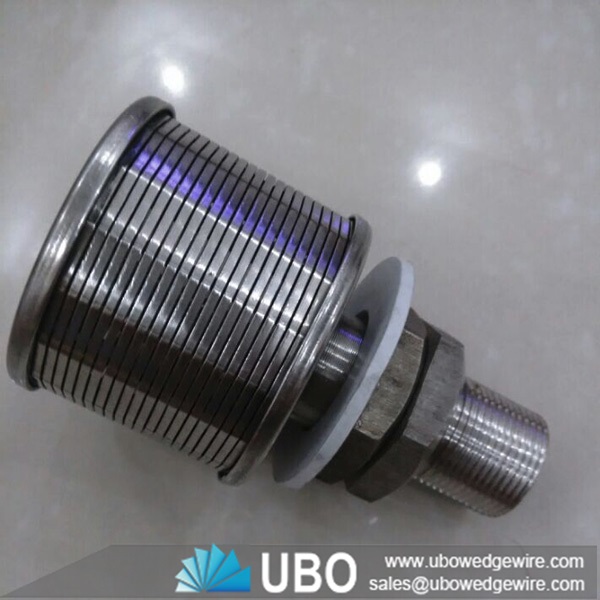

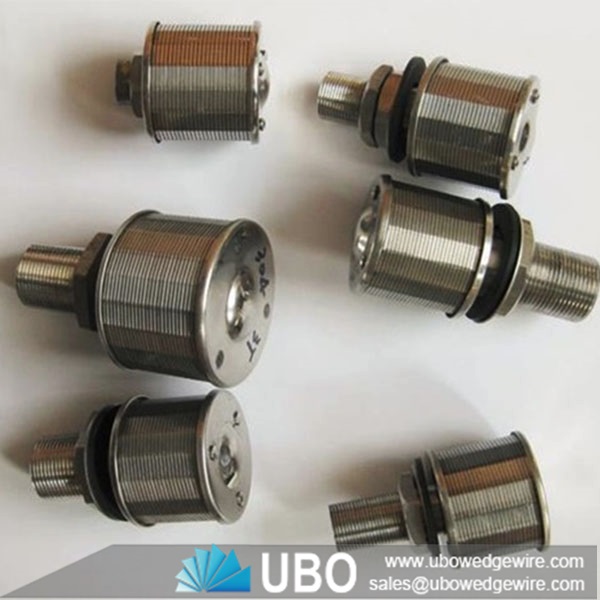

Nozzle Assembly for Environmental Water Treatment TechnologyNozzle Assembly for Environmental Water Treatment TechnologyNozzle Assembly for Environmental Water Treatment Technology

Nozzle Assembly for Environmental Water Treatment Technology

Category:Wedge Wire Application
Material:Stainless steel 302,304,304L,316,316L
Properties:filter nozzles
Application:power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Nozzle Assembly for Environmental Water Treatment Technology

water filter nozzles manufacture for Process circulating water is made up of stainless steel or Hastelloy C wedge wire screen. It has a structure and high open area, as well as accurate slot dimension.

The wedge wire element in a nozzle is a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.

Application for Nozzle Assembly for Environmental Water Treatment:

Stainless steel filter nozzle are widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment. The filter nozzle is the key components of the water distribution and water device in water treatment equipment . The stainless steel filter nozzle applies to the ion exchanger, ion exchange resin, etc.

Advantages for Nozzle Assembly for Environmental Water Treatment:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Features for Nozzle Assembly for Environmental Water Treatment:

-- Great mechanical strength
-- Highly resistant to abrasivity and vibration.
-- It can hold more pressure and temperature compared to the perforated sheet screen.
-- Longer screen life.
-- Larger useful area than that of the standard perforated sheet screen.
-- The wedge wire screen can be used in any of INOXPA filters.
-- The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick -disassembling for cleaning.
-- It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Technology for Nozzle Assembly for Environmental Water:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.

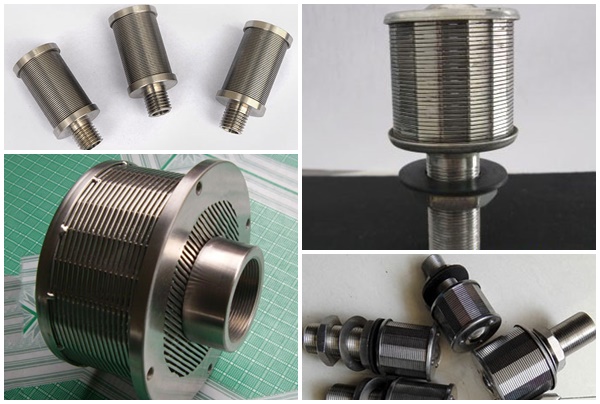

Nozzle Assembly for Environmental Water Treatment Technology

Specifications of Nozzle Assembly for Environmental Water Treatment Technology:

Nozzle Assembly for Environmental Water Treatment Technology

Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5...

Packaging and Transportation of Nozzle Assembly for Environmental Water Treatment Technology:

Nozzle Assembly for Environmental Water Treatment Technology
