Media wedge wire screen for Resin Traps factory

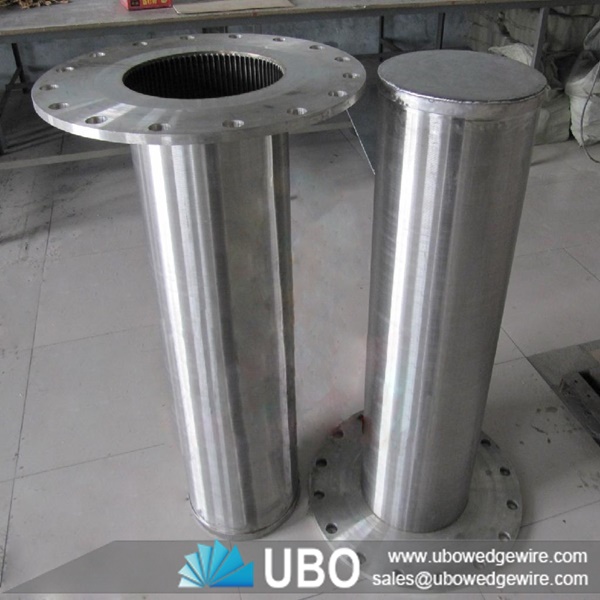

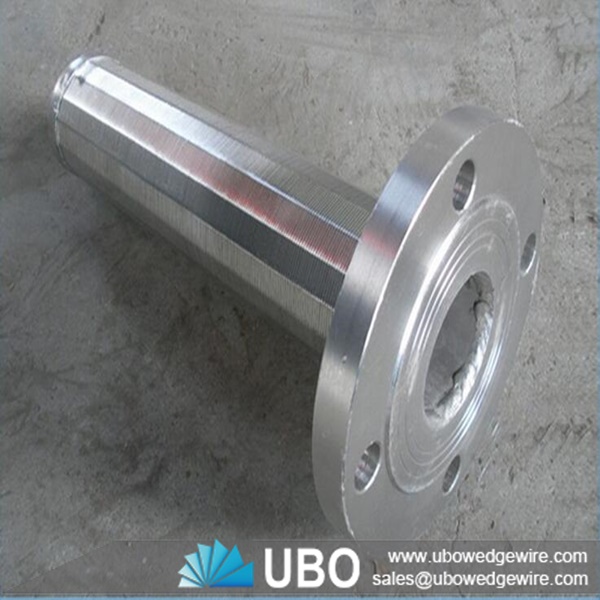

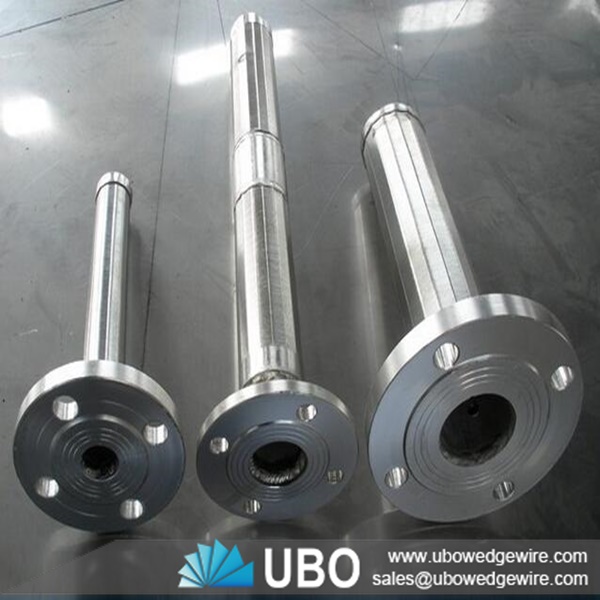

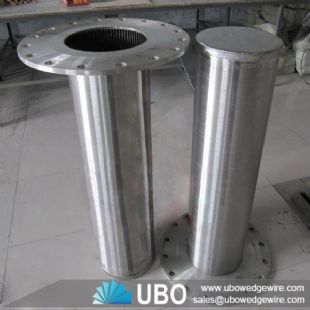

The wedge wire element in a Resin Trap/ Strainer is normally a slot tube, but can also be a cylinder. A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.

Advantages of media wedge wire screen for Resin Traps

-- Very precise slots for perfect particle retention combined with minimum obstruction of the process flow.

-- Flexibility in design.

-- Strong construction (self supporting).

-- Large open area.

-- Plug-resistant slot design

Usages of media wedge wire screen for Resin Traps

To capture expensive resin that escapes from a treatment vessel by accident

To protect equipment further downstream

A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment.

Cleaning is carried out by removing the strainer from the tube.

Material: stainless steel

Surface treatment: polishing ,chroming

Product structure : resin trap

Wire diameter: 1.5x2mm,2x3mm

Length: 0.5meters or as per your request

Diameter: 80mm

Slot size: 1mm also achieved upon request.

Flange: as your request
