Wedge Wire Screen Resin Trap Strainer Factory

More Views

Wedge Wire Screen Resin Trap Strainer FactoryWedge Wire Screen Resin Trap Strainer FactoryWedge Wire Screen Resin Trap Strainer Factory

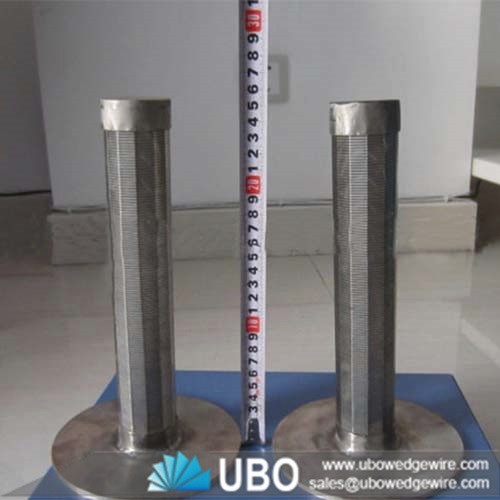

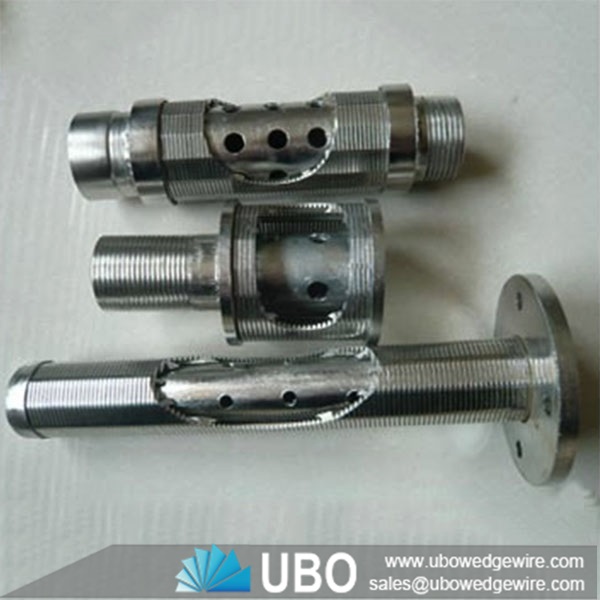

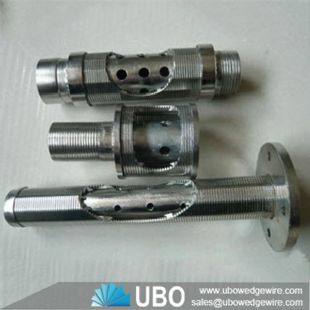

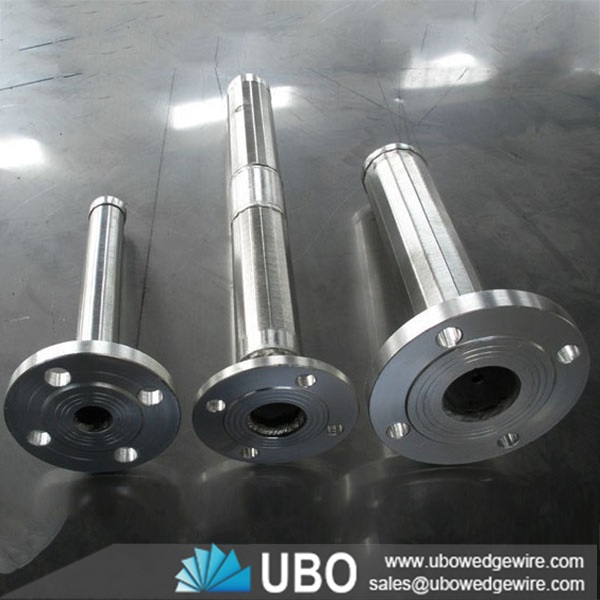

Wedge Wire Screen Resin Trap Strainer Factory

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Resin Trap Strainer Factory

Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. Haixing offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Application for Resin trap strainer & media wedge wire screen:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Features for Resin trap strainer & media wedge wire screen:

The wedge wire element in a Resin Trap/ Strainer is normally a slot tube, but can also be a cylinder. A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.

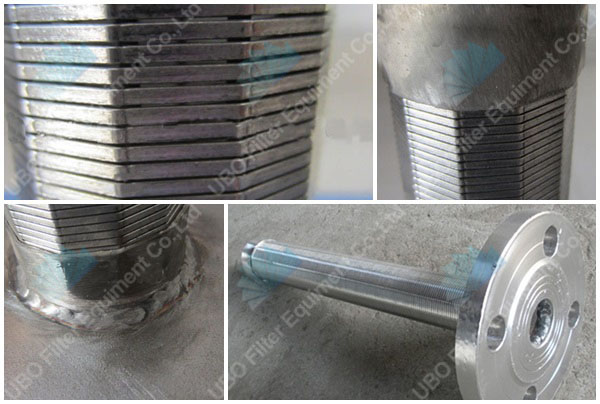

Resin trap strainer & media wedge wire screen factory

Specifications of Wedge Wire Screen Resin Trap Strainer Factory:

Resin trap strainer & media wedge wire screen factory

Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

Packaging and Transportation of Wedge Wire Screen Resin Trap Strainer Factory:

Resin trap strainer & media wedge wire screen factory
