Low Carbon Steel water well screen pipes for filtration

More Views

Low Carbon Steel water well screen pipes for filtrationLow Carbon Steel water well screen pipes for filtrationLow Carbon Steel water well screen pipes for filtration

Low Carbon Steel water well screen pipes for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Low Carbon Steel water well screen pipes for filtration

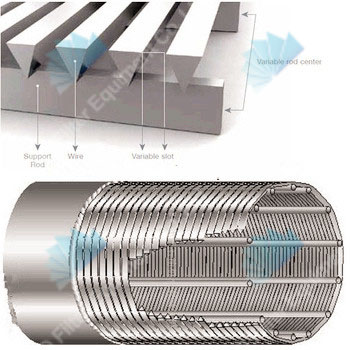

Low Carbon Steel water well screen pipes of rod strips and V shaped wires through manufacturing on specialized welding machine.
The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

Usages of Low Carbon Steel Water Well Screen Pipes

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantages of Low Carbon Steel Water Well Screen Pipes

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost

Features of Low Carbon Steel Water Well Screen Pipes

1) Custom Designed and Engineered
Each project is specifically designed to ensure complete satisfaction. We provide guidance and support from project concept to completion.

2) Longer lasting.
Johnson Screens, whose manufacturing standards are the most stringent in the industry, are extremely durable and have high resistance to abrasion, corrosion and impact damage.

3) Lower Maintenance.
The rugged construction and high quality of materials make possible a product that lasts longer and requires less maintenance.

4) Less Costly.
Superior operating efficiency, extended service life and reduced main-tenance needs combine to reduce the true cost of Johnson screens to plant operators.

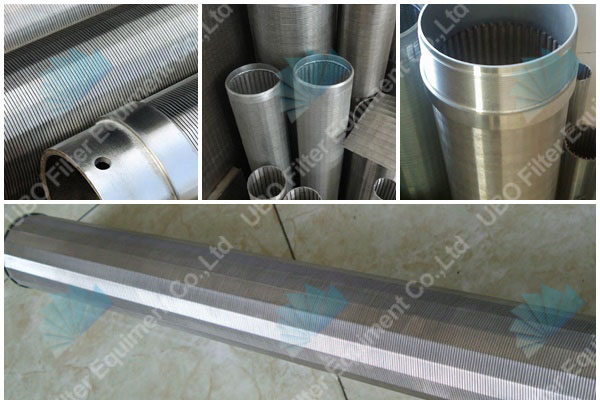

Low Carbon Steel water well screen pipes for filtration

Specifications of Low Carbon Steel water well screen pipes for filtration:

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50



Low Carbon Steel water well screen pipes for filtration

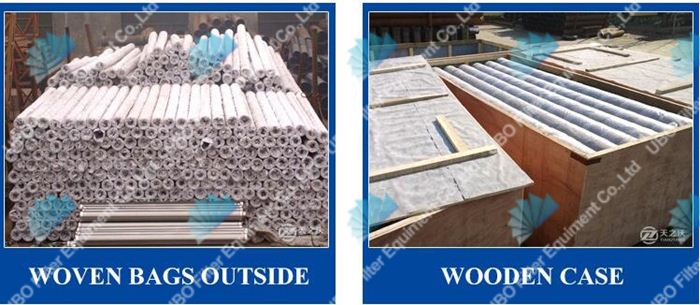

Packaging and Transportation of Low Carbon Steel water well screen pipes for filtration:

transportation

transportation
