Intake Screen Stainless Steel supplier

More Views

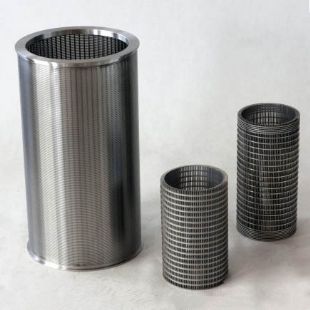

Intake Screen Stainless Steel supplier

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Liquid filter,water filter,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Intake Screen Stainless Steel supplier

Intake screens allow to withdraw water uninterruptedly from lakes, rivers and oceans at a low, uniform velocity. Oasis can design the intake screens according to customers’requirements. Various stainless steel alloys and Z-Alloy can be used to construct intake screens for fresh and sea water applications. The intake screens cost less to install and operate and requires less maintenance.

Wedge wire screen is the widely using screen for filtration and separation in liquid/gas , mining , food , water wasting , and so on.Wedge wire screen have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.

Advantages of stainless steel intake screens

1. Reliable water delivery
2. Lower cost
3. Lower maintenance cost
4. Very low slot velocity and uniform flow.
5. Environment friendly
6 . Bio-fouling resistant screen material

Application of Intake Screen Stainless Steel supplier

Wedge wire screen have a lot of applications like using in oil , gas , chemical , food or beverage , mining , waste water management or coal separation .

Intake screens .

Specifications of Intake Screen Stainless Steel supplier:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

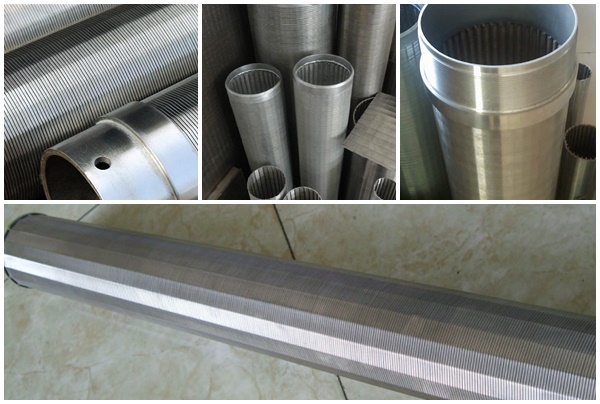

Intake Screen Stainless Steel supplier

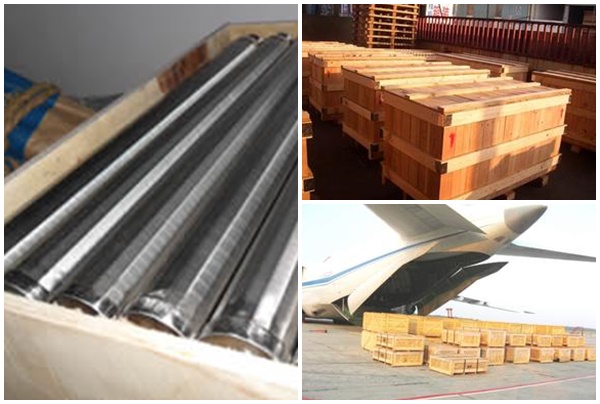

Packaging and Transportation of Intake Screen Stainless Steel supplier:

packing
