Industry filtration of filter screen

More Views

Industry filtration of filter screenIndustry filtration of filter screenIndustry filtration of filter screen

Industry filtration of filter screen

Category:Wedge Wire Application
Material:stainless steel302,304,304L,316,316L
Properties:wedge wire screen
Application:water,food,industry,oil filtration,pharmaceutical industry etc.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Industry filtration of filter screen

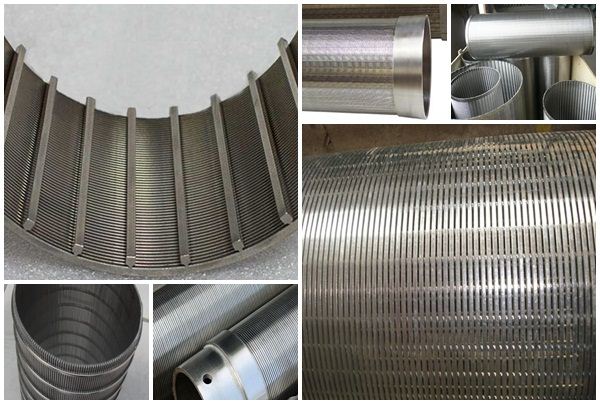

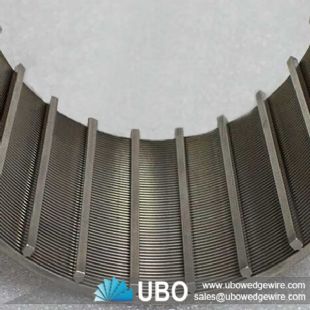

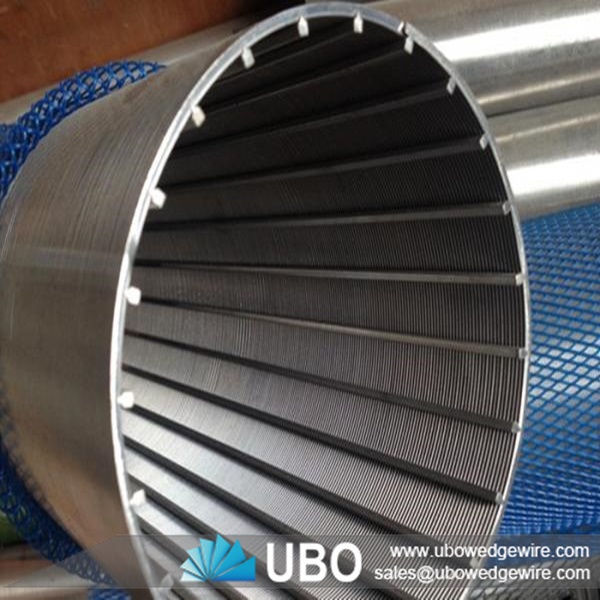

UBO Factory produce filter screen is made by winding cold-rolled wire, approximately triangular in cross section,
around a circular array of the longitudinal rods.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size.

All slots should be clean and free of burrs and cuttings.

Advantages of Industry filtration of filter screen

Maximizing flow rates

When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing

Non-clogging slot
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.

Reductions in operating cost
By using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.

Applications of Industry filtration of filter screen

With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metel and reverse wedge wire tube outside filter.

Industry filtration of filter screen

Specifications of Industry filtration of filter screen:

Industry filtration of filter screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton steel (LCG),

stainless steel (201, 304/304L,316/316L etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

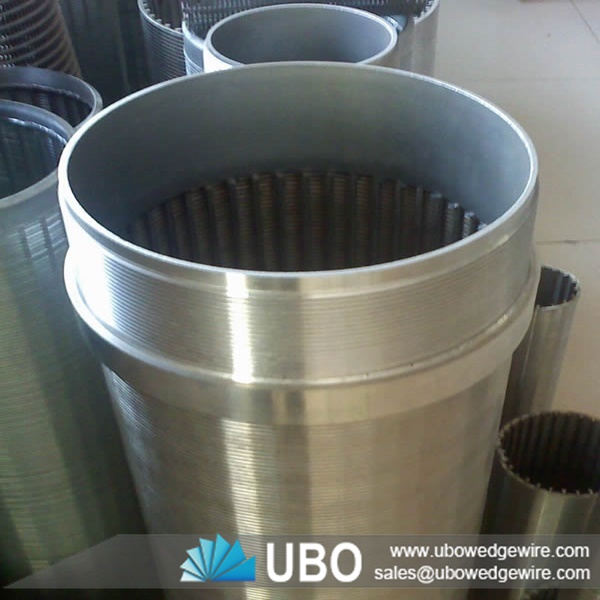

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Industry filtration of filter screen:

packing and transportation
