Industrial waste water disposal of filtration

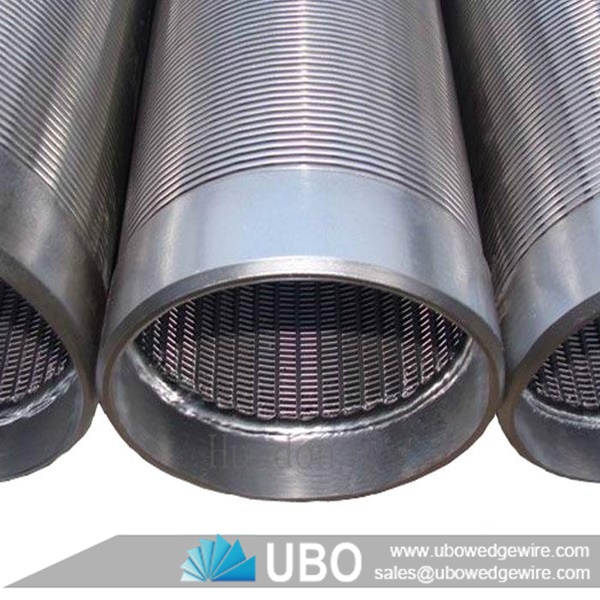

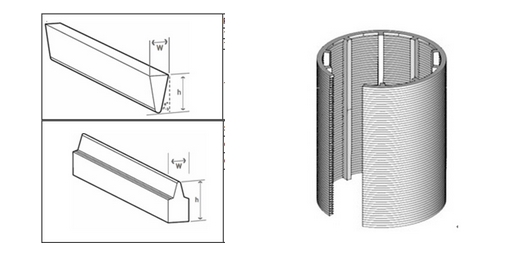

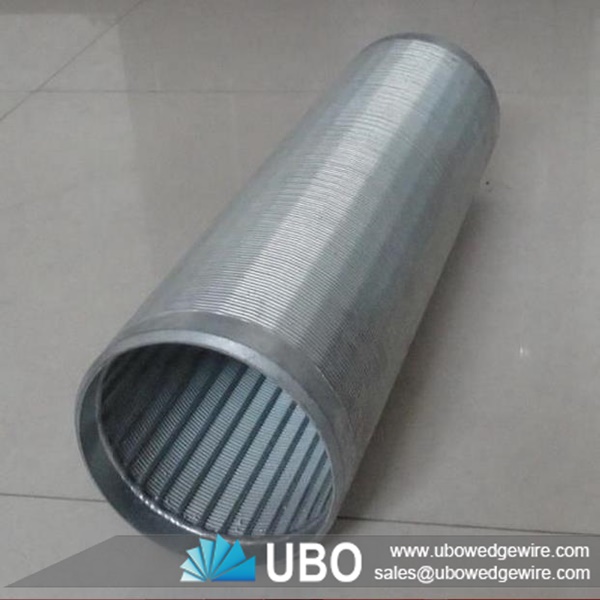

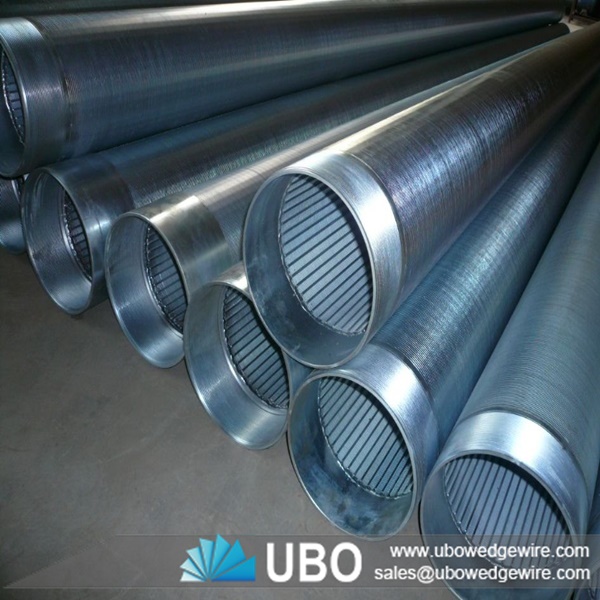

Industrial waste water disposal of filtration or V-shape profile wire and the longitudinal support rods together forms a pipe filter for well screen. The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So wedge wire pipe well screen has sturdy constriction and good mechanical property. It is used to prevent sands from entering the water.

The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.

Advantages of wedge wire screen pipe for industrial waste water disposal of filtration

1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5) Long live: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

Applications of wedge wire screen pipe for industrial waste water disposal of filtration

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.


Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.

Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”.

Open area: up to 60%.

Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).

Lengths up to 6 meters.

Diameter: ranging from 25 to 2000mm.

End connection: plain beveled ends for butt welding or threaded.
