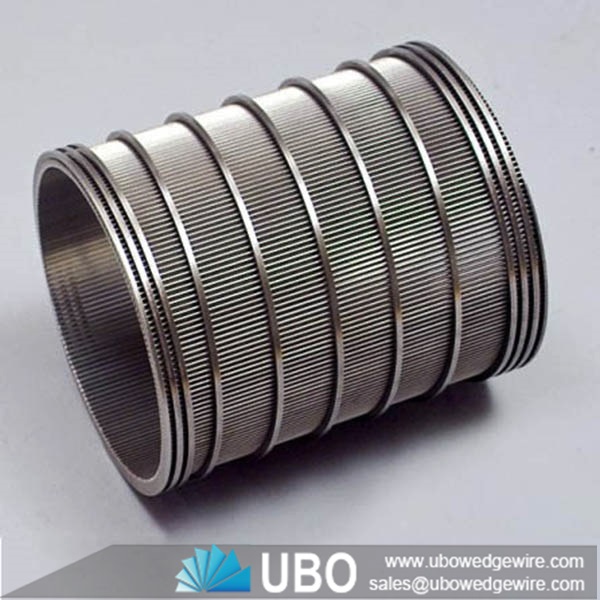

Industrial Wedge Wire Screens stainless filter
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Screens |
Application: | Food & Beverage Screens;Mineral & Aggregate Processing;OEM Screen Components;Pulp & Paper Screens;Refining & Petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Industrial Wedge Wire Screens stainless filter

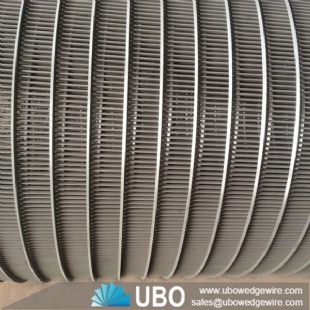

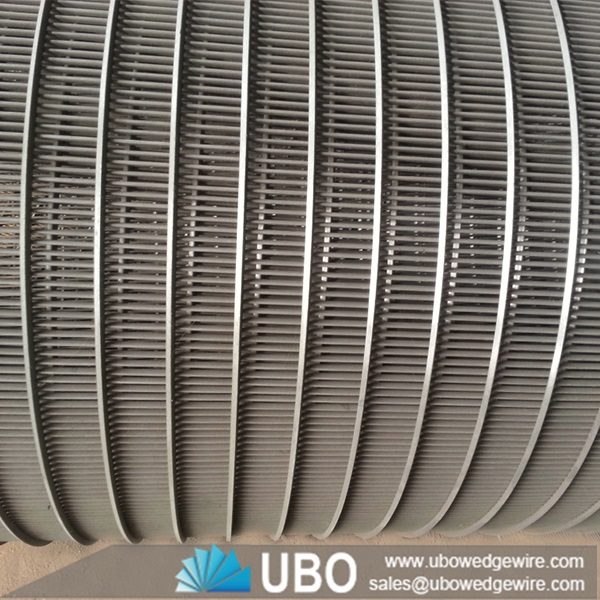

Wedge wire filter are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.
Our wedge wire filter are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one.
Applications for Industrial Wedge Wire Screens stainless filter:
Food & Beverage Screens;Mineral & Aggregate Processing;OEM Screen Components;Pulp & Paper Screens;Refining & Petrochemical;Water Process & Fluid Treatment;Water/oil Well
Features for Industrial Wedge Wire Screens stainless filter:
1) It has high mechanical strength, can bear large pressure drop.
2) The wedge type slot can improve backflushing and regeneration performance.
3) Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4) Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
Advantages for Industrial Wedge Wire Screens stainless filter:
-- It has high mechanical strength, can bear large pressure drop.
-- It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
-- The wedge type slot can improve backflushing and regeneration performance.
-- It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Construction for Industrial Wedge Wire Screens stainless filter:

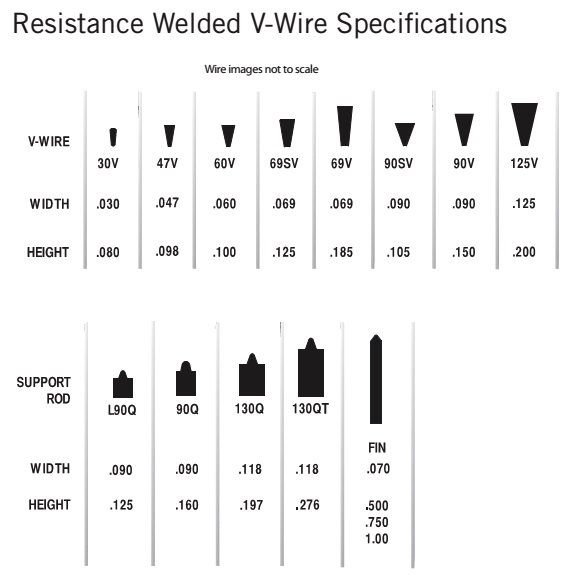

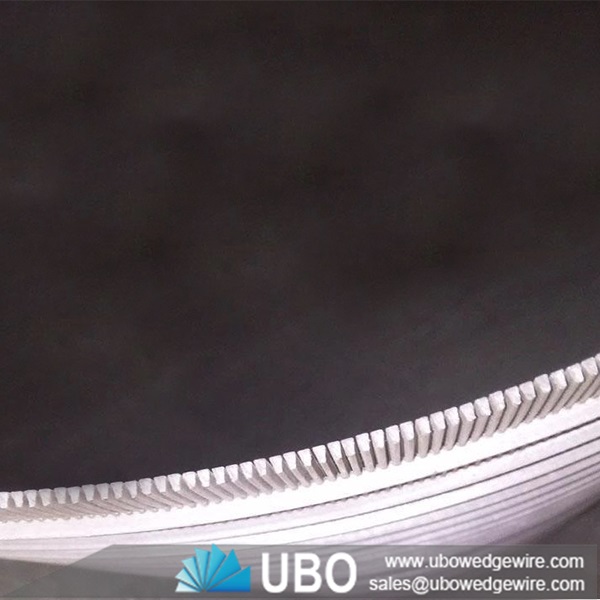

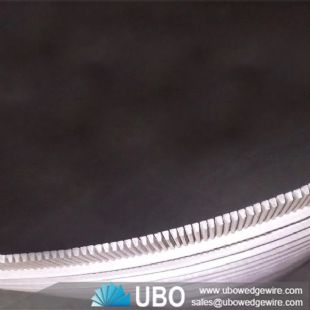

1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3) After work for a period of time, the filter can be back flush.It can use for many times.

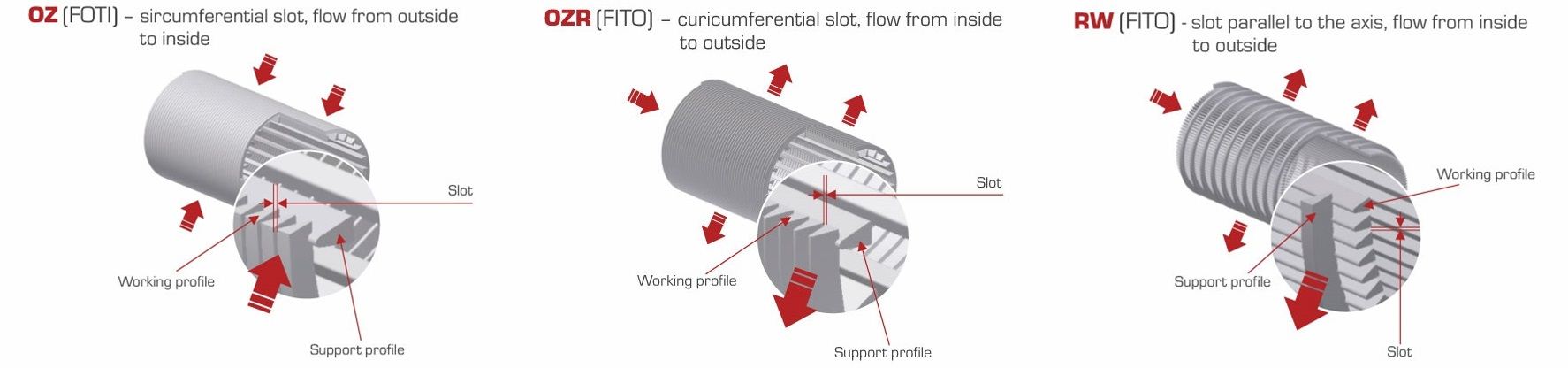

Filtrations Direction for Industrial Wedge Wire Screens stainless filter:
The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)
Specifications of Industrial Wedge Wire Screens stainless filter:
Outside diameter in mm
|
Number of support profiles
|
30
|
8
|
45
|
10
|
57
|
12
|
70
|
18
|
85
|
18
|
97
|
20
|
110
|
24
|
137
|
30
|
164
|
36
|
215
|
48
|
268
|
48
|
305
|
40
|
380
|
48
|
