Industrial Water Softener System nozzles filter
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Filter Nozzle |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Industrial Water Softener System nozzles filter

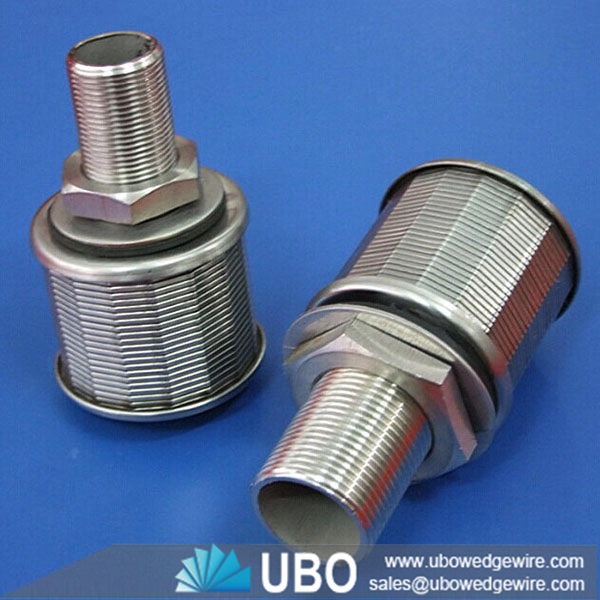

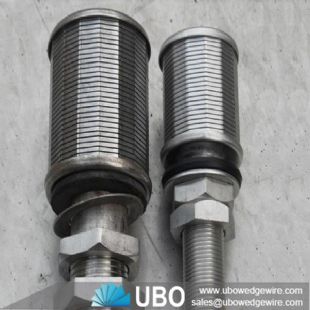

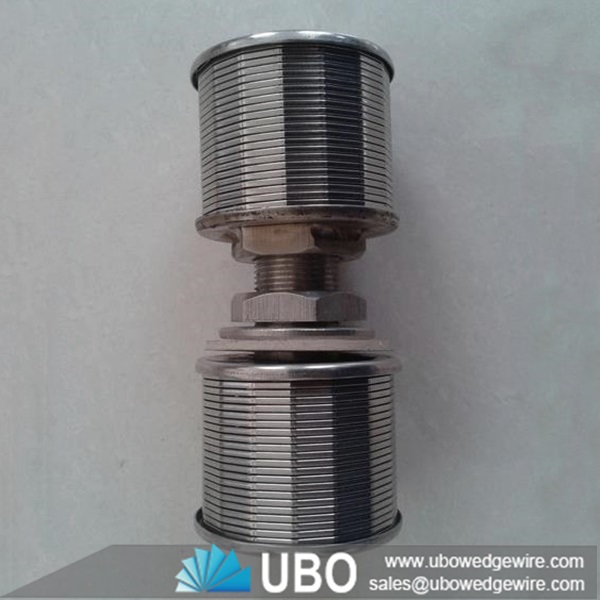

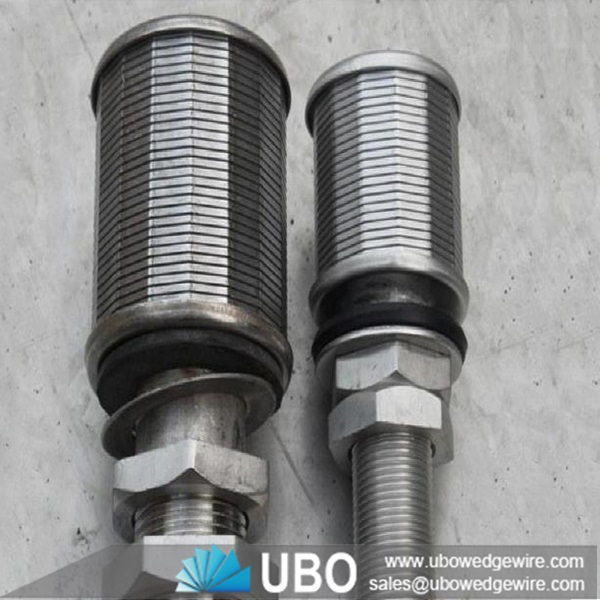

Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Uses for Industrial Water Softener System nozzles filter:
Stainless Steel wedge wire water treatment filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Features for Industrial Water Softener System nozzles filter:
Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained
Costly downtime for cleaning plugged screens is minimize.
Technology for Industrial Water Softener System nozzles filter:
Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.
Specifications of Industrial Water Softener System nozzles filter:
No. |
Slot |
Dimension |
Flow area/mm2
(Slot:0.2mm) |
||||
D |
H |
L |
M |
L1 |
|||
1 |
0.2-0.5 |
45 |
30 |
180 |
25 |
According to custom’s request |
330 |
2 |
45 |
40 |
190 |
25 |
450 |
||
3 |
53 |
40 |
190 |
30 |
500 |
||
4 |
53 |
50 |
200 |
30 |
630 |
||
5 |
53 |
40 |
235 |
32 |
500 |
||
6 |
57 |
40 |
190 |
32 |
605 |
||
7 |
57 |
50 |
200 |
32 |
750 |
