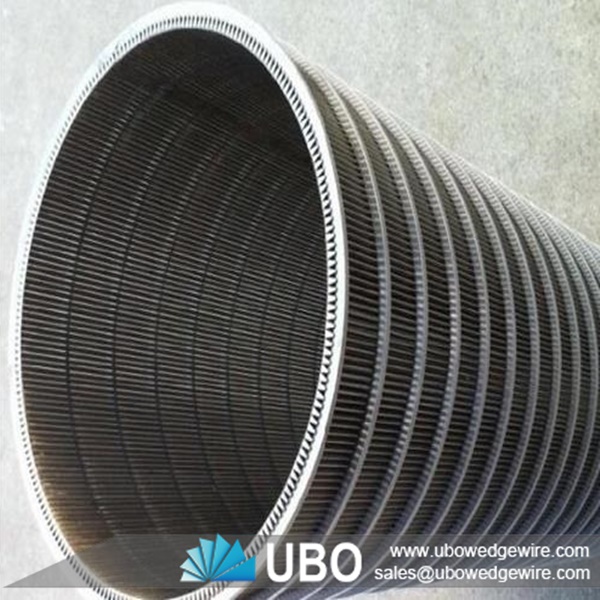

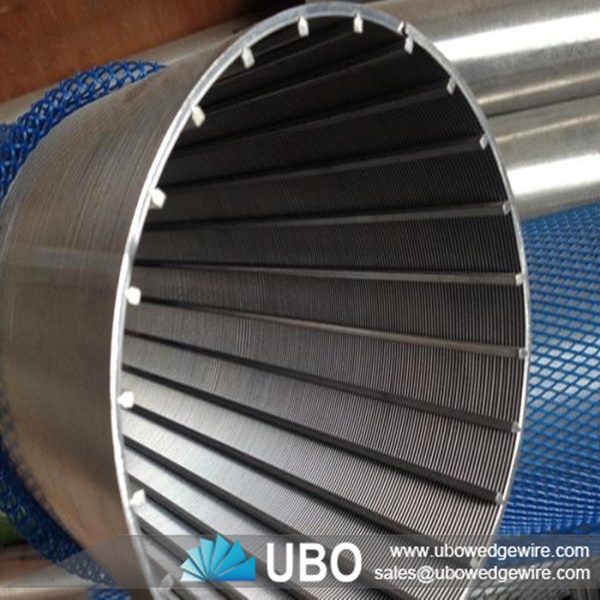

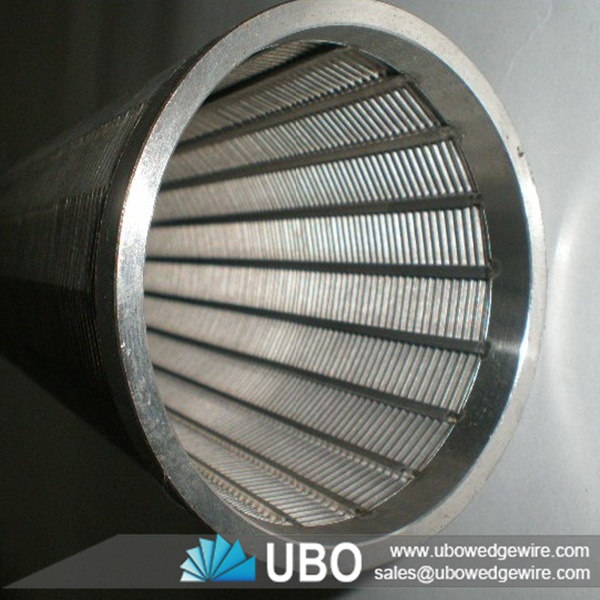

High quality stainless steel wedge wire screen cylinder

More Views

High quality stainless steel wedge wire screen cylinderHigh quality stainless steel wedge wire screen cylinderHigh quality stainless steel wedge wire screen cylinder

High quality stainless steel wedge wire screen cylinder

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application: solid / liquid and solid / gas separation, sizing, dewatering, Oil & Gas wells, water wells

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of High quality stainless steel wedge wire screen cylinder

Stainless steel wedge wire screens are made of SS "V" shaped and SS "V" shaped or SS "V" shaped and SS rod or SS "V" shaped and SS "Convex "shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The Cylinder Screen have a perfectly flat and smooth surface with rectangular openings , also named SS wedge wire screen, SS wedge profile wire screen Cylinder or SS wedge Cylindrical Screen .

screen pipe

Advantages of High quality stainless steel wedge wire screen cylinder

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Applications of High quality stainless steel wedge wire screen cylinder

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

High quality stainless steel wedge wire screen cylinder

Specifications of High quality stainless steel wedge wire screen cylinder:

Wedge Wire Screens For Liquid / Solids Separation

Application: Screen

Material:stainless  steel

Wire Gauge: 2-3mm

Mesh Size: 0.5-2mm

Hole Shape: Square

Surface Treatment: Galvanized

Technique: Welded

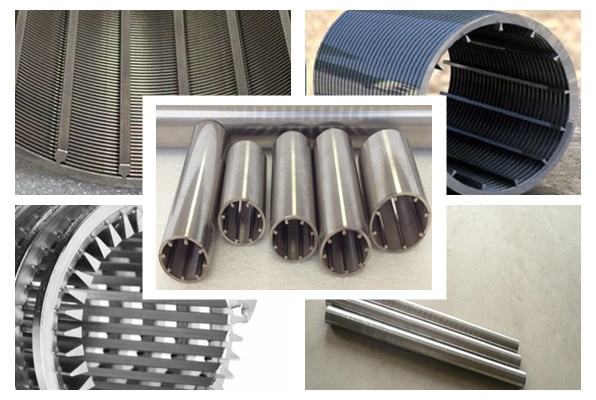

screen pipe

No.
(mm)TYPE
OD
(mm)
ID
(mm)
Support wire Number
Filter direction
1
SRD25.4
25.4
18.6
12
FOTI
2
SRD 33
33
24
8
FOTI
3
SRD 37
37
28
8
FOTI
4
SRD 40
40
31
8/10
FOTI/FITO
5
SRD 45
45
36
10/12
FOTI/FITO
6
SRD 48
48
38
12
FOTI/FITO
7
SRD 60
60
51
12
FOTI/FITO
8
SRD 70
70
61
12/18
FOTI/FITO
9
SRD 85
85
76
18
FOTI/FITO
10
SRD 110
110
101
24
FOTI/FITO
11
SRD120
120
111
24
FOTI/FITO


Packaging and Transportation of High quality stainless steel wedge wire screen cylinder:

packing
