High Quality Wedge Wire Screen Filter Nozzle for Filtration

More Views

High Quality Wedge Wire Screen Filter Nozzle for FiltrationHigh Quality Wedge Wire Screen Filter Nozzle for FiltrationHigh Quality Wedge Wire Screen Filter Nozzle for Filtration

High Quality Wedge Wire Screen Filter Nozzle for Filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedgewire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

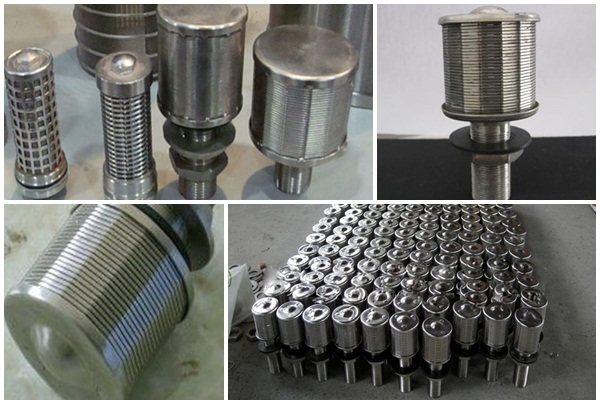

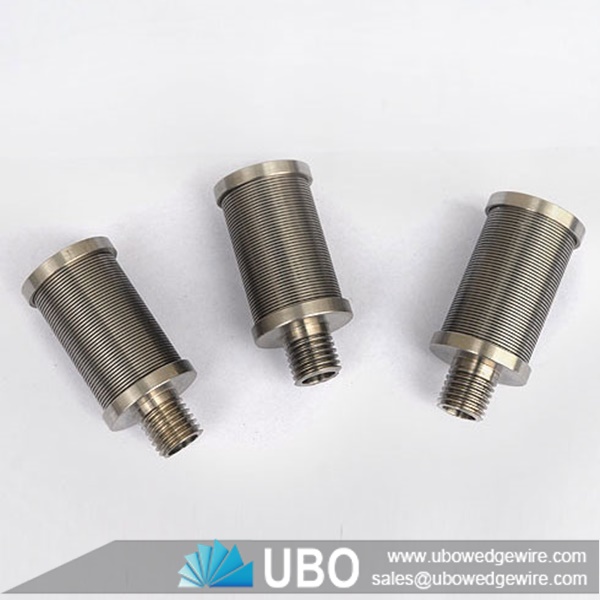

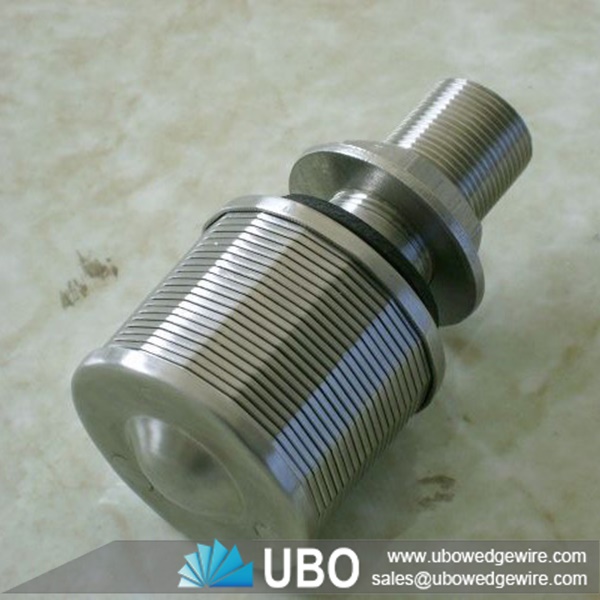

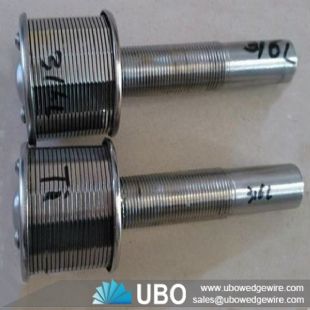

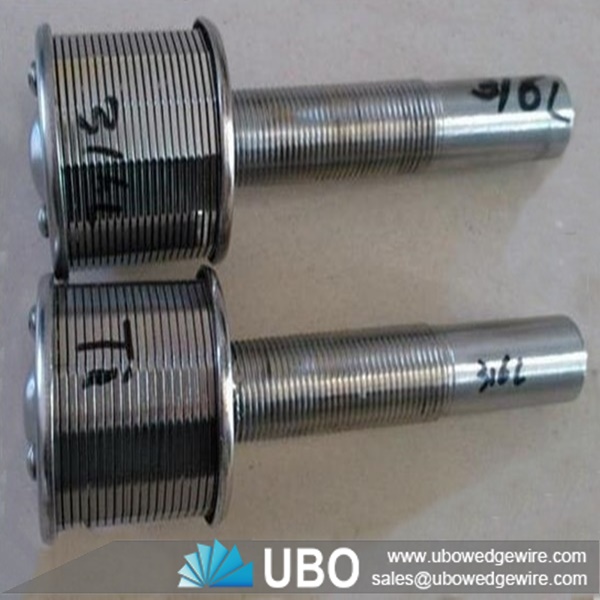

Details of High Quality Wedge Wire Screen Filter Nozzle for Filtration

The wedge wire screen filter nozzle as the important parts used in the water treatment equipment for power plant, waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm. We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.

Features of High Quality Wedge Wire Screen Filter Nozzle

  • Great flow area
  • Long service time
  • Good pressure resistance

Usage of High Quality Wedge Wire Screen Filter Nozzle

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

          High quality wedge wire screen filter nozzle for filtration


Specifications of High Quality Wedge Wire Screen Filter Nozzle for Filtration:

wedge wire filter nozzle

D L L1 Slot Size d Flow Area mm2
45 98 34 0.2-0.25 M20 380-493
45 100 44 0.2-0.25 M24 551-690
53 100 34 0.2-0.25 M24 453-597
53 100 44 0.2-0.25 M27 680-710
53 105 50 0.2-0.25 M32 800-920
57 115 34 0.2-0.25 M30 560-670
57 120 55 0.2-0.25 M32 780-905
60 120 55 0.2-0.25 G1" 905-1100
82 130 50 0.2-0.25 M33 1170-1280
108 200 100 0.2-0.25 G2" 3050-4600

Packaging and Transportation of High Quality Wedge Wire Screen Filter Nozzle for Filtration:

packing

transportation
