Continuous-slot Wedge Wire screen
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel |
Properties: | wedge wire screen |
Application: | water filtration,oil filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Continuous-slot Wedge Wire screen

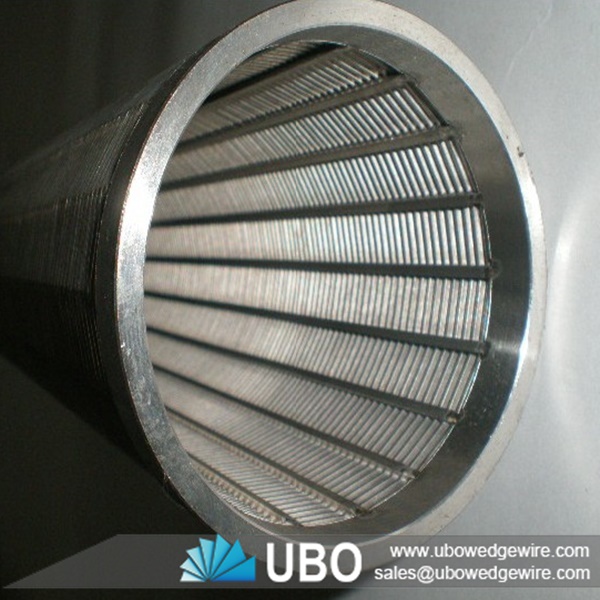

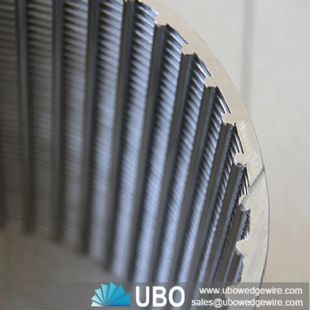

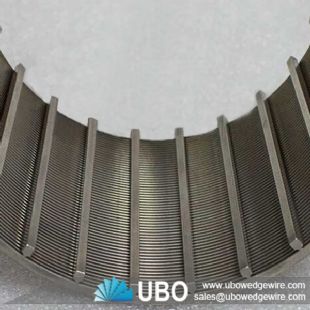

Continuous-Slot Wedge Wire Screen is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.
Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter.
The entire process is completed on fully computerized machines.
Features of Continuous-slot Wedge Wire screen
1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
Application of Continuous-slot Wedge Wire screen
V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.
Specifications of Continuous-slot Wedge Wire screen:
Wedge wire |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Support rod |
Width(mm): 2.30 3.00 3.30 3.70 |
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6m |
Diameter | from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
