Chip Wringer Oil Screens for Food Processing

More Views

Chip Wringer Oil Screens for Food ProcessingChip Wringer Oil Screens for Food ProcessingChip Wringer Oil Screens for Food Processing

Chip Wringer Oil Screens for Food Processing

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Chip Wringer Oil Screens for Food Processing

Chip wringer oil screens are used in chip processing centrifuges to separate residual machining fluids (coolants and oils) from metal chip waste (swarf). Significant cost reduction results from reclaiming machining fluids.

Screens are made using UBO’s custom wedge profile bar wire in a variety of screen sizes and slot openings. Our precision laser cut support rods provide for consistent slot openings. Our MIG welded construction makes our chip wringer screens the most durable screens on the market.

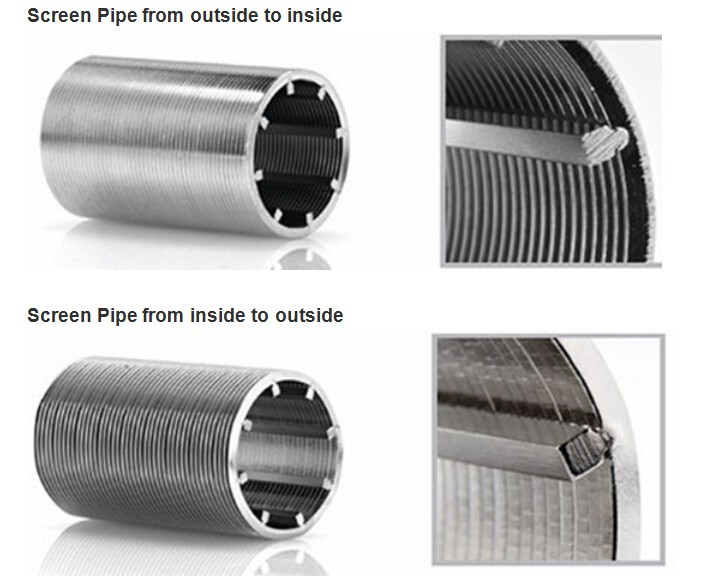

Construction of Chip Wringer Oil Screens

1) We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

3) After work for a period of time, the filter can be back flush.It can use for many times.

Features of Chip Wringer Oil Screens

1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Application of Chip Wringer Oil Screens

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

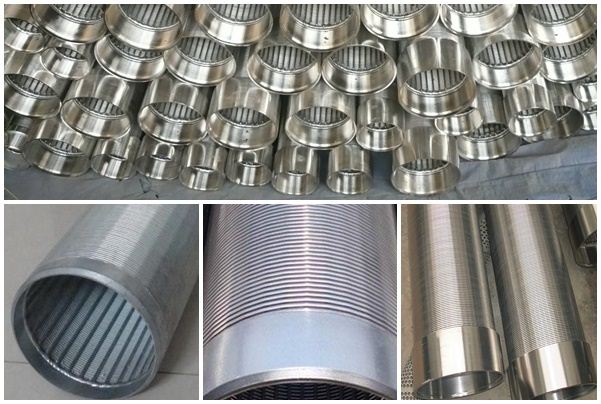

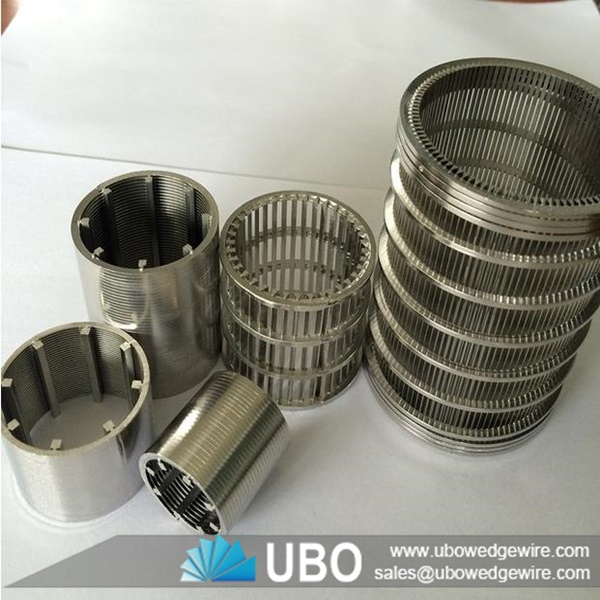

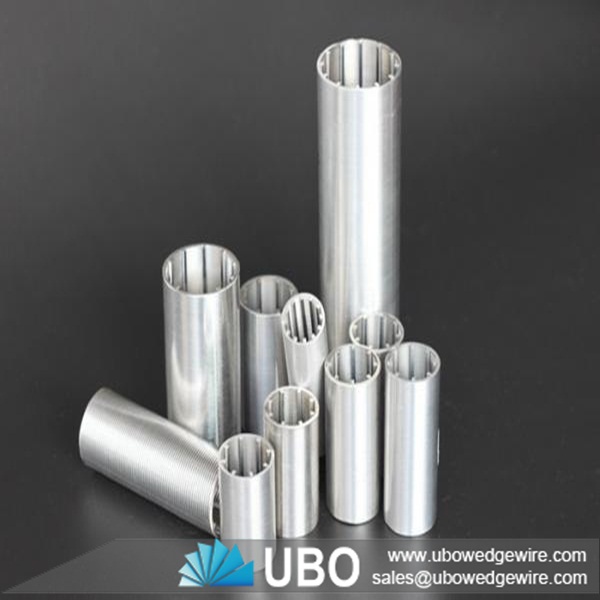

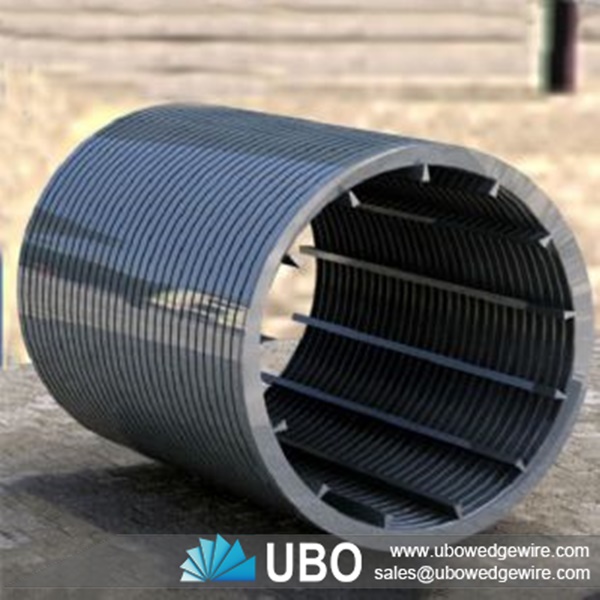

Chip wringer oil screens screen for food processing

Specifications of Chip Wringer Oil Screens for Food Processing:

Chip wringer oil screens screen for food processing


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Chip Wringer Oil Screens for Food Processing:

packing
