ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

More Views

ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial waterASTM 316 Reverse Rolled V Wire Water Well Screen for industrial waterASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

Category:Wedge Wire Application
Material:stainless steel
Properties:stainless steel wedge wire
Application:Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

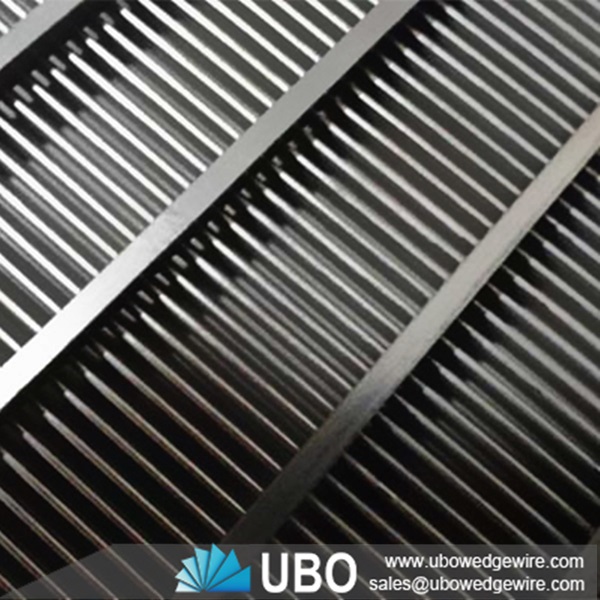

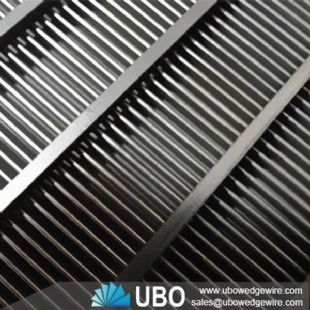

Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

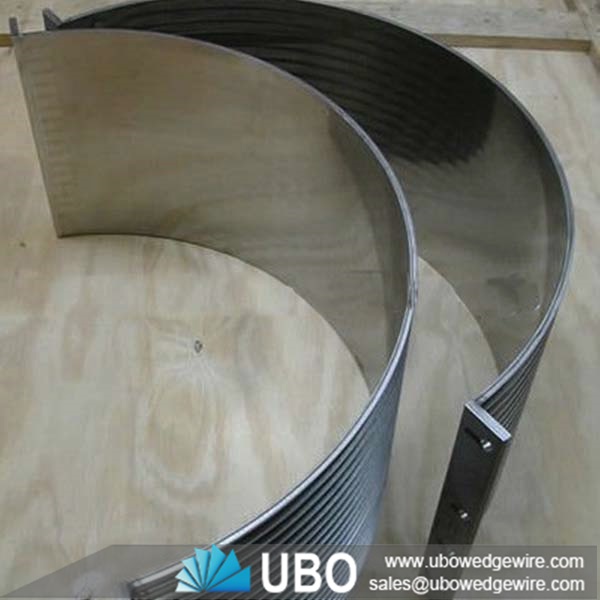

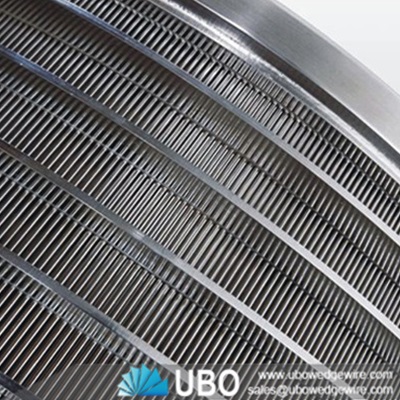

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed

Application for ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water:

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

Advantage for ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water:

-- High strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Fairly well precision and roundness;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap.

Characteristics for ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

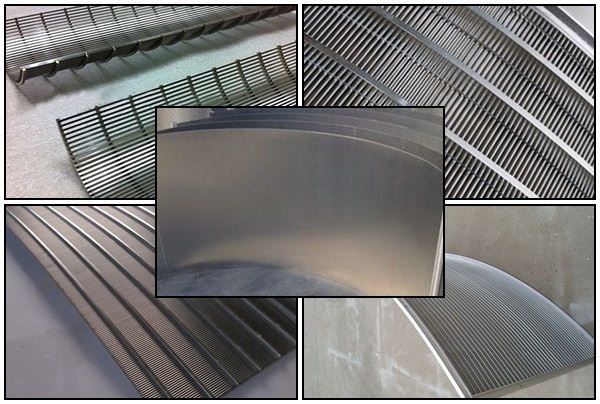

ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

Specifications of ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water:

ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water

Profile combinations:

Surface profiles
Support profiles
Min.diam. in mm
Min. slot width in mm
10S
Q25
21
0.10
11S
22S or Q35
23
0.03
12S
22S
30
0.05
12S
Q25
23
0.03
12S
Q35
30
0.05
18S
22S or Q35
30
0.05
18S
Q25
25
0.03
18S
D45
300
0.20
18S
10x3
300
0.20
22S
22S or Q35
45
0.10
22S
D45 or 10x3 or 25x3
300
0.20
28S
Q35
215
0.20
28S
D45 or 10x3 or 25x3
300
0.20
34S
Q35
300
0.20
34S
D45
300
0.20
34S
10x3 or 25x3
300
0.20
42S
Q35 or D45
300
0.20
42S
10x3 or 25x3
300
0.20

Diameters:

Outside diameter in mm
Number of support profiles
30
8
45
10
57
12
70
18
85
18
97
20
110
24
137
30
164
36
215
48
268
48
305
40
380
48

Packaging and Transportation of ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water:

ASTM 316 Reverse Rolled V Wire Water Well Screen for industrial water
