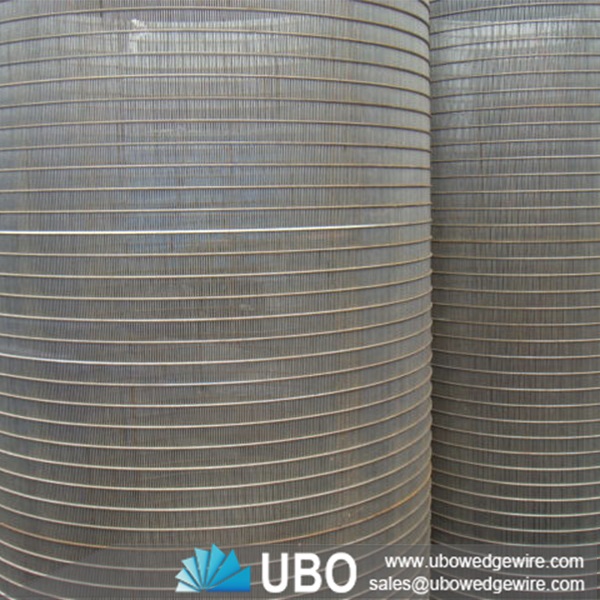

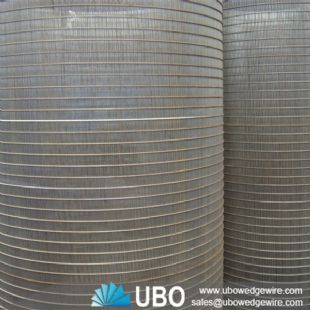

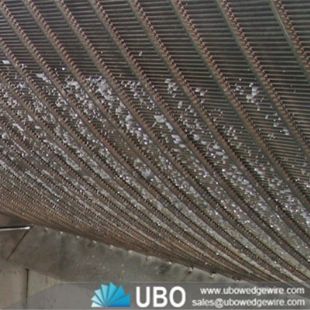

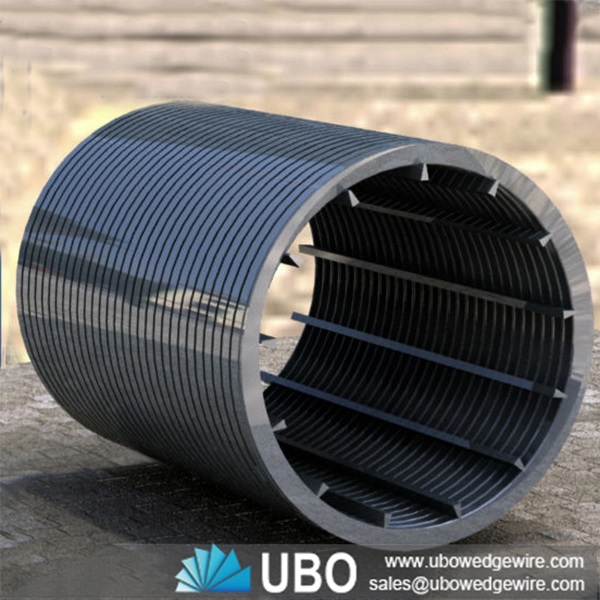

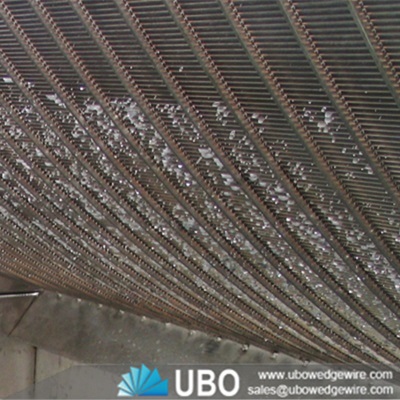

AISI304 rotary drum screen cylinder screen for water clarification

More Views

AISI304 rotary drum screen cylinder screen for water clarificationAISI304 rotary drum screen cylinder screen for water clarificationAISI304 rotary drum screen cylinder screen for water clarification

AISI304 rotary drum screen cylinder screen for water clarification

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:drum screen
Application:water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI304 rotary drum screen cylinder screen for water clarification

    Metal wedge wire filter cartridge is formed by welding wire(cross section is wedge)through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.

Applications for AISI304 rotary drum screen cylinder screen for water clarification:

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries

Features for AISI304 rotary drum screen cylinder screen for water clarification:

High mechanical strength, can withstand greater pressure
Uniform aperture, form uniform filter cake, beneficial backwash regeneration
Wedge-shaped filter gap, improve backwash regeneration capacity
High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.

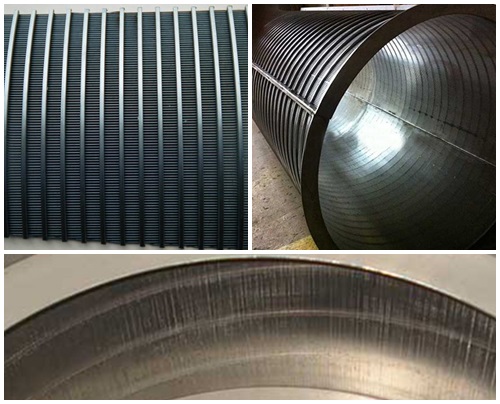

Construction for AISI304 rotary drum screen cylinder screen for water clarification:

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the filter can be back flush.It can use for many times.

AISI304 rotary drum screen cylinder screen for water clarification

Specifications of AISI304 rotary drum screen cylinder screen for water clarification:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of AISI304 rotary drum screen cylinder screen for water clarification:

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
