Quality Wedge Wire Screen Manufacturer in China

AISI304 Wedge Wire Screen Filter Nozzle manufactuer

More Views

AISI304 Wedge Wire Screen Filter Nozzle manufactuerAISI304 Wedge Wire Screen Filter Nozzle manufactuerAISI304 Wedge Wire Screen Filter Nozzle manufactuer

AISI304 Wedge Wire Screen Filter Nozzle manufactuer

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI304 Wedge Wire Screen Filter Nozzle manufactuer

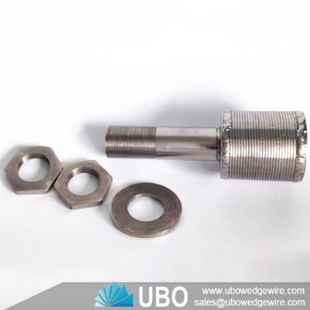

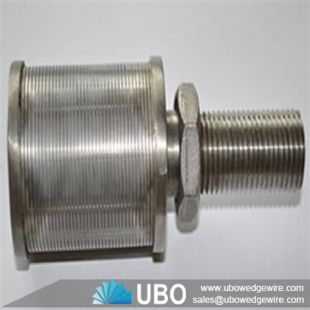

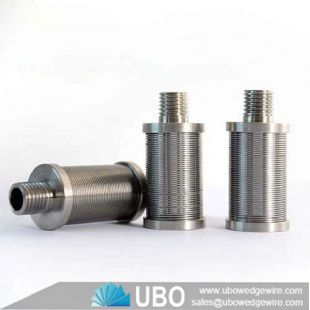

AISI304 Wedge Wire Screen Filter Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

AISI304 Wedge Wire Screen Filter Nozzle manufactuer

Advantages of AISI304 Wedge Wire Screen Filter Nozzle manufactuer

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of AISI304 Wedge Wire Screen Filter Nozzle manufactuer

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.



AISI302 Wedge Wire Screen Filter Nozzle manufactuer

Specifications of AISI304 Wedge Wire Screen Filter Nozzle manufactuer:

Material:stainless steel

Type:filter nozzle

AISI304 Wedge Wire Screen Filter Nozzle manufactuer


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000



Packaging and Transportation of AISI304 Wedge Wire Screen Filter Nozzle manufactuer:

transportation
