Quality Wedge Wire Screen Manufacturer in China

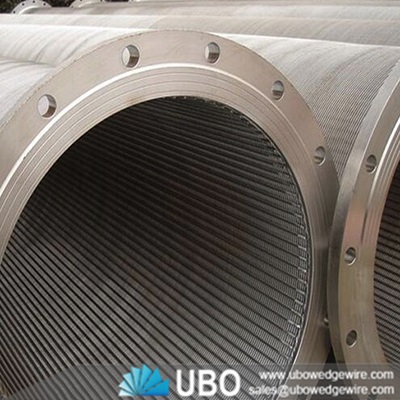

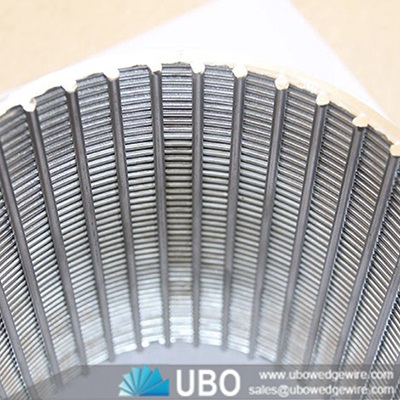

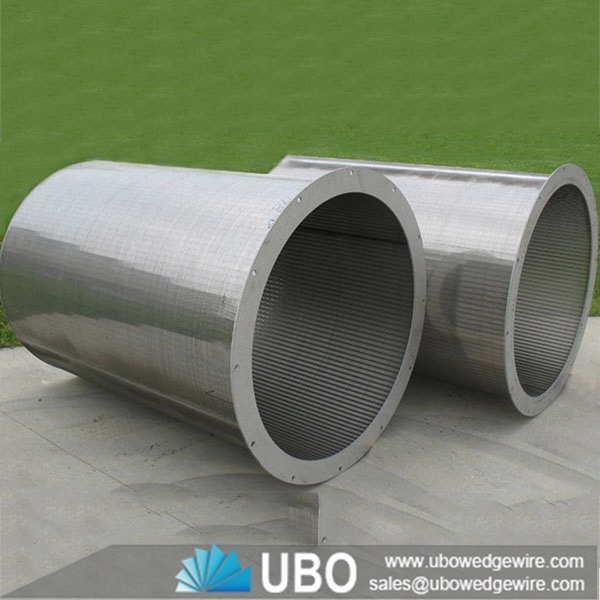

AISI 304 Industrial Screw Press Screens for industrial and municipal water

More Views

AISI 304 Industrial Screw Press Screens for industrial and municipal waterAISI 304 Industrial Screw Press Screens for industrial and municipal waterAISI 304 Industrial Screw Press Screens for industrial and municipal water

AISI 304 Industrial Screw Press Screens for industrial and municipal water

Category:Wedge Wire Application
Material:stainless steel
Properties:Screw Press Screens
Application:he water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI 304 Industrial Screw Press Screens for industrial and municipal water

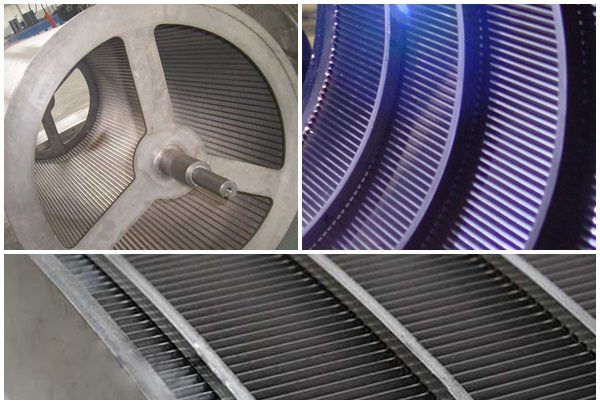

The screw press is a simple, slow moving mechanical device. Dewatering is continuous and is accomplished by gravity drainage at the inlet end of the screw and then by reducing the volume as the material being dewatered is conveyed from the inlet to the discharge end of the screw press.

AISI 304 Industrial Screw Press Screens for industrial and municipal water

Application for AISI 304 Industrial Screw Press Screens for industrial and municipal water:

Screw press screens are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.
Screw presses are used in a wide variety of dewatering applications, often in the same applications as belt presses, centrifuges, and filter presses.

Advantage for AISI 304 Industrial Screw Press Screens for industrial and municipal water:

1) High strength through resistance to twisting, compressive, and tensile forces

2) A smooth bore that does not impede the passage of probes, tools, etc.

3) The special structure of the slot makes it difficult for particles to get stuck in the slot, thus bettering its discharge capacity.

4) The special bridge slot of screens helps improving their mechanic strength.

5) Application of Anticorrosive coasting will prolong the span life of wells.

6) Slots and the diameter of bridge slot screens can be custom made to satisfy your needs.

7) Convenient to operate owing to various connecting methods between screens

AISI 304 Industrial Screw Press Screens for industrial and municipal water

Specifications of AISI 304 Industrial Screw Press Screens for industrial and municipal water:

AISI 304 Industrial Screw Press Screens for industrial and municipal water

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of AISI 304 Industrial Screw Press Screens for industrial and municipal water:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
