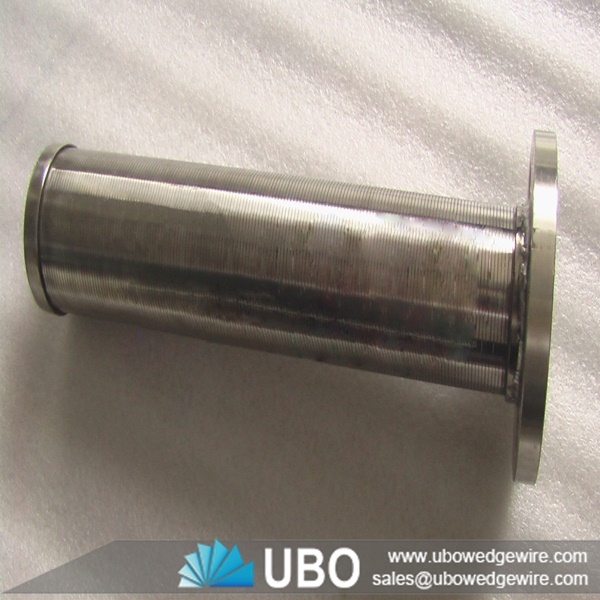

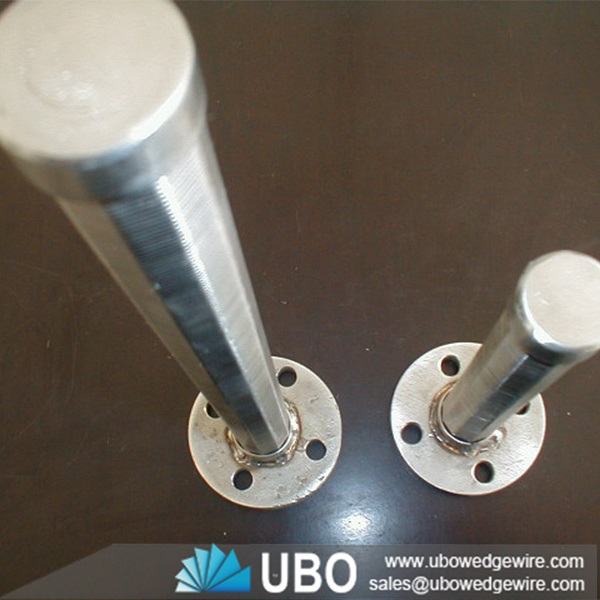

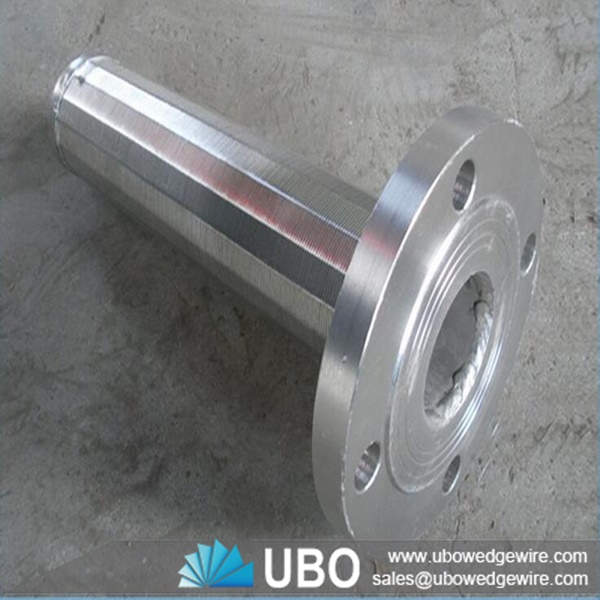

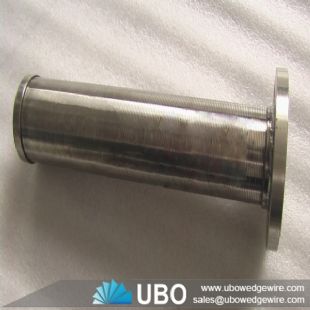

304 wedge wire resin trap screen for filtration

More Views

304 wedge wire resin trap screen for filtration304 wedge wire resin trap screen for filtration304 wedge wire resin trap screen for filtration

304 wedge wire resin trap screen for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water,food,industry,oil filtration,pharmaceutical industry etc.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 304 wedge wire resin trap screen for filtration

The 304 wedge wire resin trap screens are placed in a housing, inline with the flow to capture expensive media from traveling downstream. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly thus minimizing pressure loss through the system.
Your resin trap can be designed to suit either new or existing strainer bodies.

Features of 304 wedge wire resin trap screen for filtration

Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained.
Costly downtime for cleaning plugged screens is minimize.

Application of 304 wedge wire resin trap screen for filtration

Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Water Process & Fluid Treatment
Water/oil Well

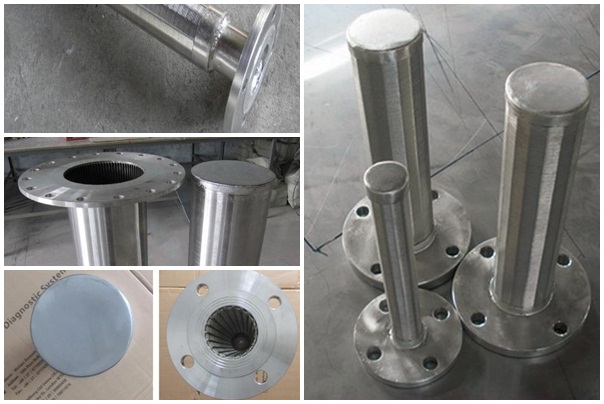

304 wedge wire resin trap screen for filtration

Specifications of 304 wedge wire resin trap screen for filtration:

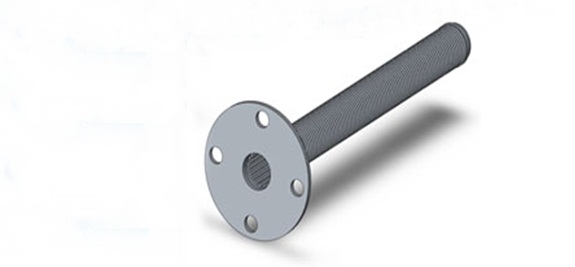

304 wedge wire resin trap screen for filtration

Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2  0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150,

200

442,496,547,

600,654,705,

758,812,863,

916,970,1021,

1074,1128,1179,

1232, 1286
