stainless steel wedge wire water well screen pipe

More Views

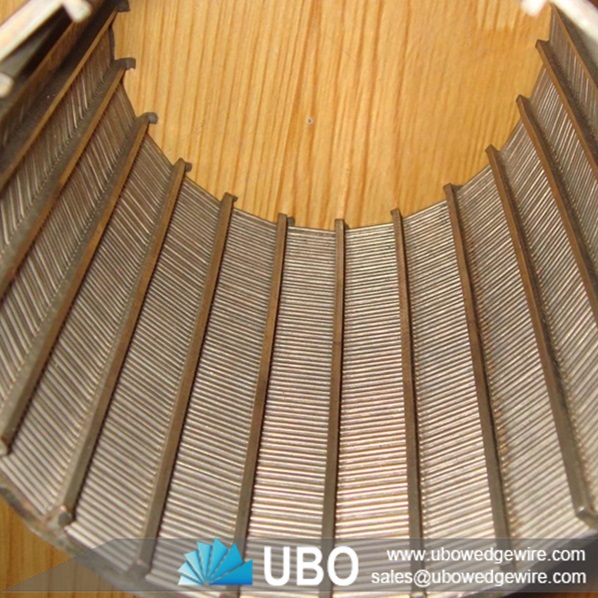

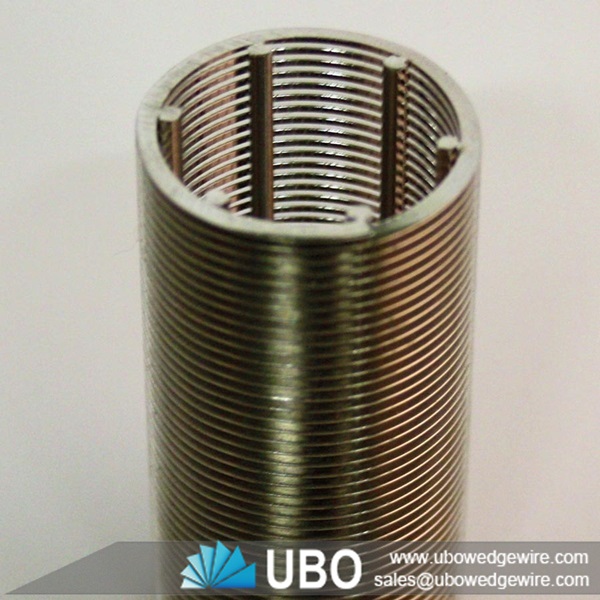

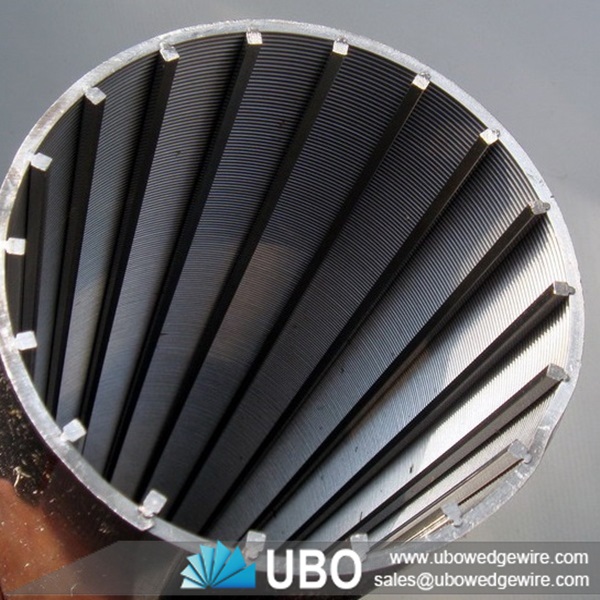

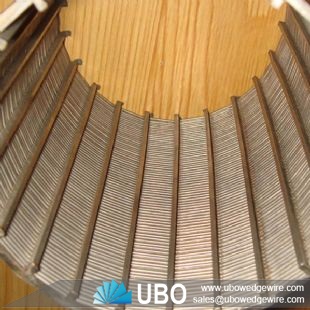

stainless steel wedge wire water well screen pipestainless steel wedge wire water well screen pipestainless steel wedge wire water well screen pipe

stainless steel wedge wire water well screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:carbon steel and stainless steel (302,304,304L,316,316L etc).
Properties:stainless steel wedge wire
Application:deep well , water well , geothermal well , tube well , oil and gas exploration well , irrigation well

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire water well screen pipe

The Wire Wrapped Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

stainless steel wedge wire water well screen pipe

Features for stainless steel wedge wire water well screen pipe:

1) Up to 60% or more free open entry area

2) Installation possible to depths of 2000 m

3) Smaller diameters can be drilled as gravel packing is not necessarily required

4) The slogs can't be clogged due to wedgeshaped surface wires

5) high quality , lower price , fastest delivery

Application for stainless steel wedge wire water well screen pipe:

deep well , water well , geothermal well , tube well , oil and gas exploration well , irrigation well , resident and industrial using well

Specification/Models for stainless steel wedge wire water well screen pipe:

The well point screen for dewatering is an incorporate.
These incorporate a self Jetting head with a non-return ball valve, a stainless steel slotted filter screen, a G.I inner drain pipe and a top coupling which threads to standard 1 ½" (40 mm) riser pipe.
The serrations on the jet head render penetration, even through hard grounds, easy.
Specially designed slots of stainless steel screen, allows maximum water flow with minimum pressure drop and prevents passage of even fine material.
The screen eliminates clogging due to corrosion or deterioration due to chemical action.
It has a reverse self cleaning design to void choking. If you have interest in our stainless steel well point screen,please feel free to contact us.

Advantages for stainless steel wedge wire water well screen pipe:

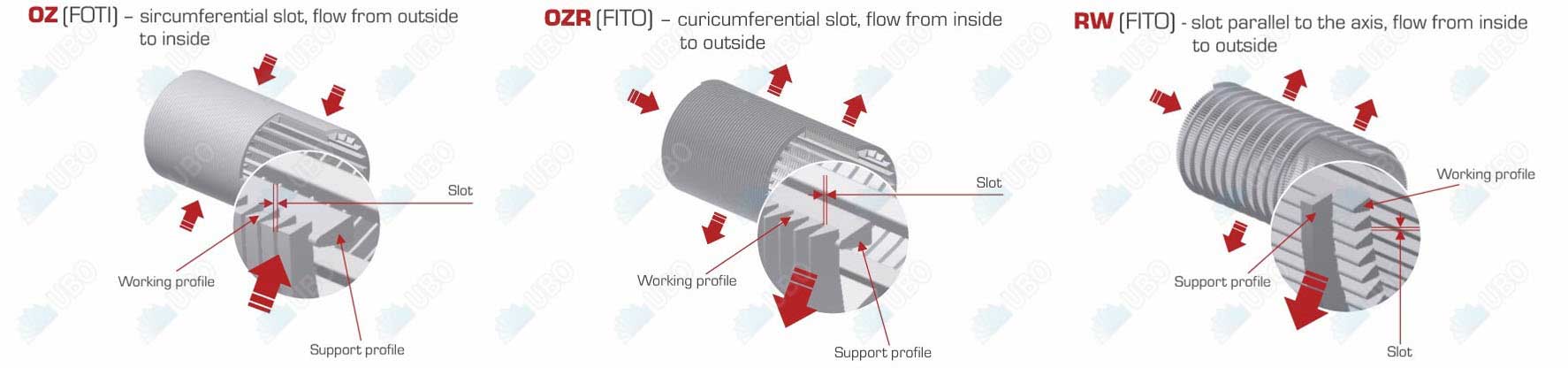

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Specifications of stainless steel wedge wire water well screen pipe:

stainless steel wedge wire water well screen pipe

SLOT
(INCH)
LENGTH
(m)
WIDTH
(m)
COLLAPSE
STERENG
(PSI)
TENSILE
WEIGHT
(TON)
WRAP
(thick*deep)
(mm)
RODS
(mm)
0.04
1-6
0.5-2
395
6
2.2*3.0
3.8mm/22
0.04
1-6
0.5-2
395
6
2.3*3.0
3.8mm/22
0.04
1-6
0.5-2
252
8
2.3*3.5
3.8mm/32
0.01
1-6
0.5-2
399
10.5
3.0*5.0
3.8mm/48
0.02
1-6
0.5-2
370
10.5
3.0*5.0
3.8mm/48
0.04
1-6
0.5-2
323
10.5
3.0*5.0
3.8mm/48
0.01
1-6
0.5-2
206
11
3.0*5.0
3.8mm/50
0.02
1-6
0.5-2
191
11
3.0*5.0
3.8mm/50
0.04
1-6
0.5-2
167
11
3.0*5.0
3.8mm/50



Packaging and Transportation of stainless steel wedge wire water well screen pipe:



Package: in wood case

Delivery: 10-20 days
