rotating trommel screen high strength rotary drum screen

More Views

rotating trommel screen high strength rotary drum screenrotating trommel screen high strength rotary drum screenrotating trommel screen high strength rotary drum screen

rotating trommel screen high strength rotary drum screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen cylinders
Application:petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of rotating trommel screen high strength rotary drum screen

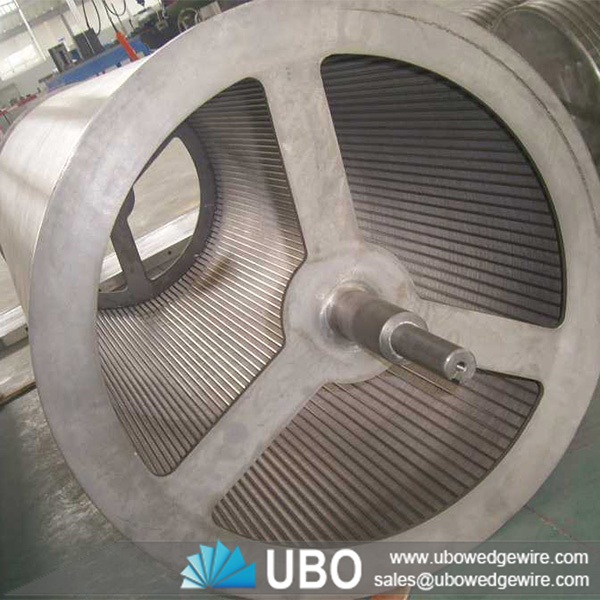

Wedge Wire Drum Screen consist of V-shape profile wire and the longitudinal support rods.The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.So Water Well Screens has sturdy constriction and good mechanical property.

Applications for rotating trommel screen high strength rotary drum screen

a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)

b) Fluid, gas and oil transport

c) Pressure and heat transmission

d) Construction and ornament

e) Boiler heat exchangers

Advantages for rotating trommel screen high strength rotary drum screen

1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5) Long live: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

rotating trommel screen high strength rotary drum screen

Specifications of rotating trommel screen high strength rotary drum screen:

rotating trommel screen high strength rotary drum screen

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings
