Quality Wedge Wire Screen Manufacturer in China

good quality stainless steel welded wedge wire screen mesh filter pipe

More Views

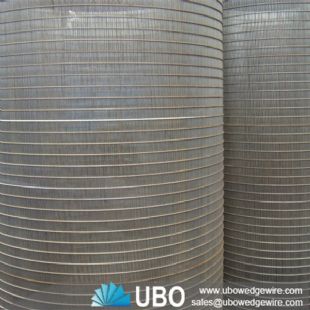

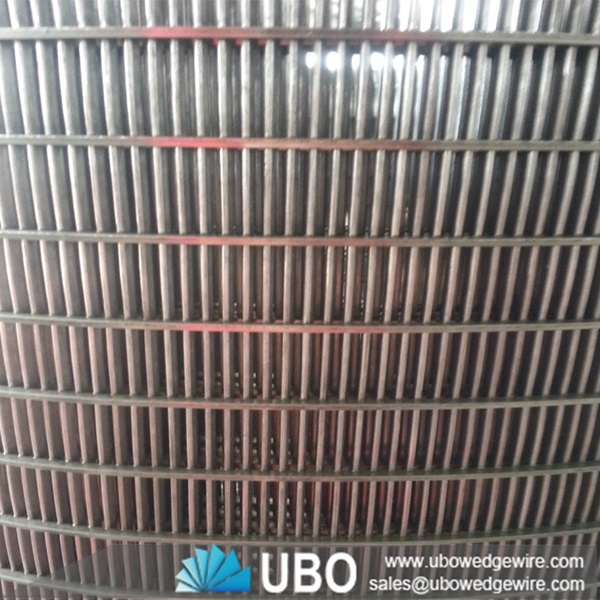

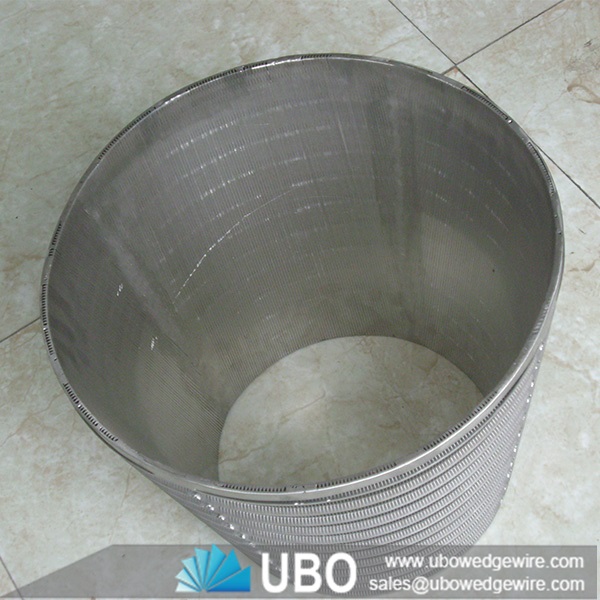

good quality stainless steel welded wedge wire screen mesh filter pipegood quality stainless steel welded wedge wire screen mesh filter pipegood quality stainless steel welded wedge wire screen mesh filter pipe

good quality stainless steel welded wedge wire screen mesh filter pipe

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:welded wedge wire
Application: water, oil, and gas wells, and for environmental well completions

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of good quality stainless steel welded wedge wire screen mesh filter pipe

   Johnson Screen are made from V shaped profile wire , which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process . This spacing gives passage for water to enter . The entire process is completed on fully computerized machines . The pitch of winding gives different spacing between two adjacent turns of wire .

Application for good quality stainless steel welded wedge wire screen mesh filter pipe:

The Johnson water well screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Characteristics for good quality stainless steel welded wedge wire screen mesh filter pipe:

1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Type for good quality stainless steel welded wedge wire screen mesh filter pipe:

Wedge wire screen have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.

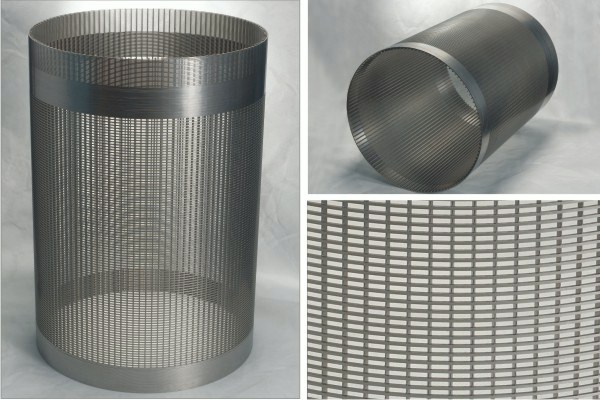

good quality stainless steel welded wedge wire screen mesh filter pipe

Specifications of good quality stainless steel welded wedge wire screen mesh filter pipe:

good quality stainless steel welded wedge wire screen mesh filter pipe

Raw material:SS321,SS304,SS316,SS316L,TaGr2,Low carbon,Hastelloy-C alloy Stainless steel wedge wire screen.
Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,
Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,
Length: 0.05m-6m,
OD: 25mm to 800mm,
Surface treatment: polishing , chroming.

Technical patameter:

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of good quality stainless steel welded wedge wire screen mesh filter pipe:

good quality stainless steel welded wedge wire screen mesh filter pipe
