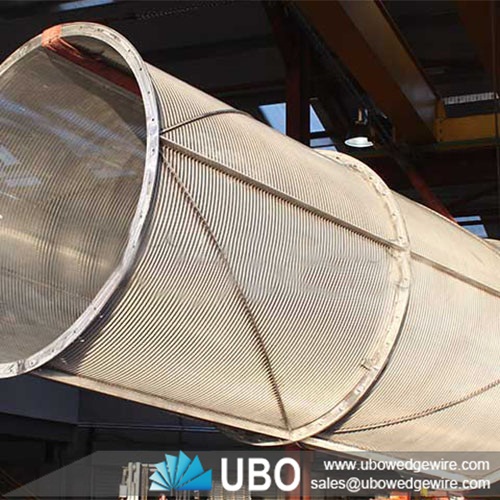

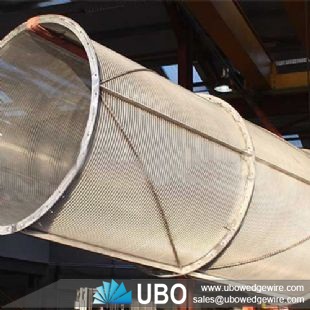

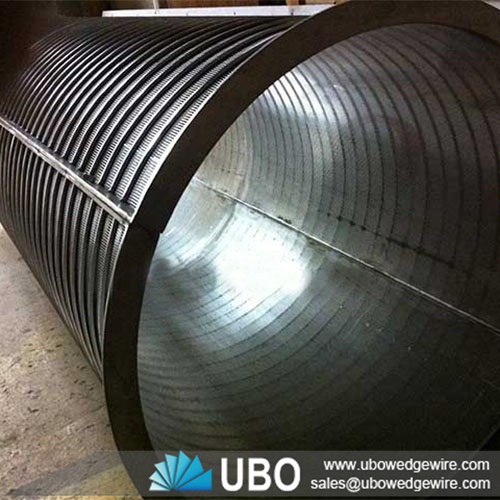

Stainless Steel Wedge Wire Trommel Screen

More Views

Stainless Steel Wedge Wire Trommel ScreenStainless Steel Wedge Wire Trommel ScreenStainless Steel Wedge Wire Trommel Screen

Stainless Steel Wedge Wire Trommel Screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:Food & Beverage Screens;Mineral & Aggregate Processing;OEM Screen Components;Pulp & Paper Screens;Refining & Petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Trommel Screen

The rotating screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Application for Stainless Steel Wedge Wire Trommel Screen:

Food & Beverage Screens;Mineral & Aggregate Processing;OEM Screen Components;Pulp & Paper Screens;Refining & Petrochemical;Water Process & Fluid Treatment;Water/oil Well

Features for Stainless Steel Wedge Wire Trommel Screen:

•Reduced costs, since wedge wire screens have a very long life.

•Greater resistance to stresses of different pressure and temperature.

•Maximum effective flow area & operating efficiency is maintained.

•Costly downtime for cleaning plugged screens is minimize.

Advantages for Stainless Steel Wedge Wire Trommel Screen:

Advantages of the rotating Trommel Screen are that large flows can be pumped over a range of screen drum aperture sizes. The screen surface can also be cleaned as the screen drum rotates presenting a clean surface to the incoming feed.

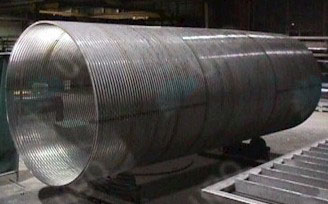

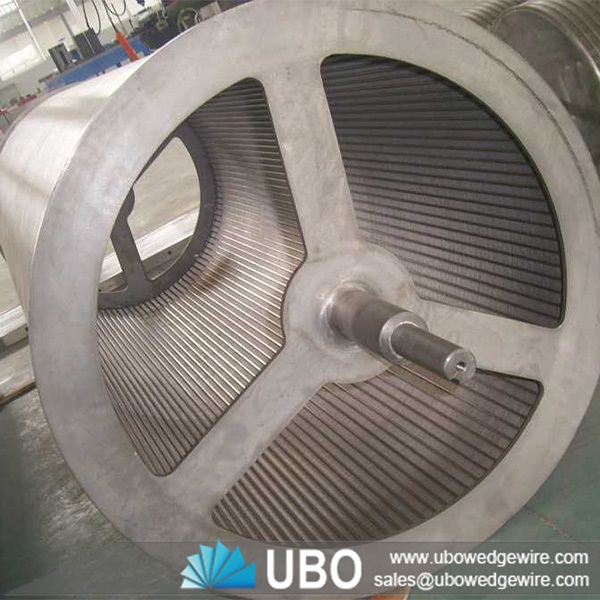

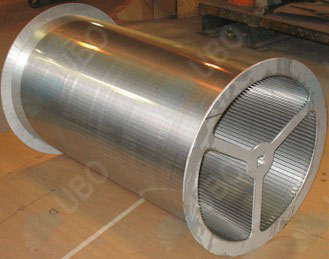

stainless steel wedge wire trommel screen

stainless steel wedge wire trommel screen

Specifications of Stainless Steel Wedge Wire Trommel Screen:

Model
Mixed Juice Capacity (t/hr)
Drum Diameter (mm)
Drum Length (mm)
Drive (KW)
Feed (inlet) Size
Discharge (outlet)Size
Approx. Mass (kg)
WT610
40
600
1000
1.5
DN100
DN150
535
WT615
73
600
1500
1.5
DN100
DN150
650
WT1015
99
1000
1500
2.5
DN150
DN200
1050
WT1018
132
1000
1800
2.5
DN150
DN200
1170
WT1518
165
1500
1800
4.0
DN200
DN250
1775
WT1521
214
1500
2100
4.0
DN250
DN300
1940
WT1824
264
1500
1400
5.5
DN250
DN300
2130

Packaging and Transportation of Stainless Steel Wedge Wire Trommel Screen:

Package: in wood case

Delivery Time:5-25 days.
