Quality Wedge Wire Screen Manufacturer in China

Stainless Steel Wedge Wire Screen Tube for Ground Water

More Views

Stainless Steel Wedge Wire Screen Tube for Ground WaterStainless Steel Wedge Wire Screen Tube for Ground WaterStainless Steel Wedge Wire Screen Tube for Ground Water

Stainless Steel Wedge Wire Screen Tube for Ground Water

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen Tube for Ground Water

Stainless steel Wedge Wire screen tube is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

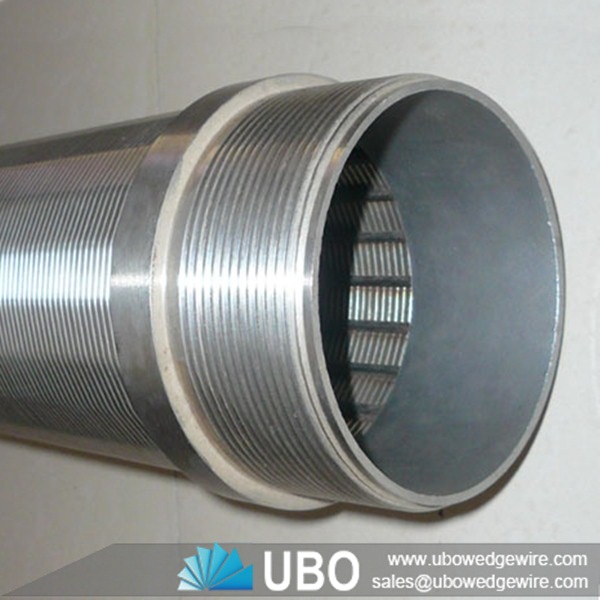

Stainless steel Wedge Wire screen tube for ground water

Application of Stainless Steel Wedge Wire Screen Tube for Ground Water

This filter is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

Advantages of Stainless Steel Wedge Wire Screen Tube for Ground Water

•High mechanical strength to withstand greater pressure difference.

•The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.

•Wedged gap can improve backwash regeneration capacity.

•Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.

•Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

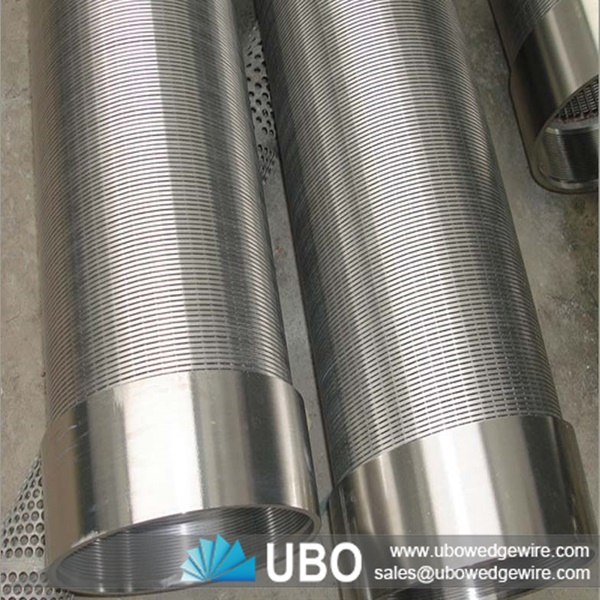

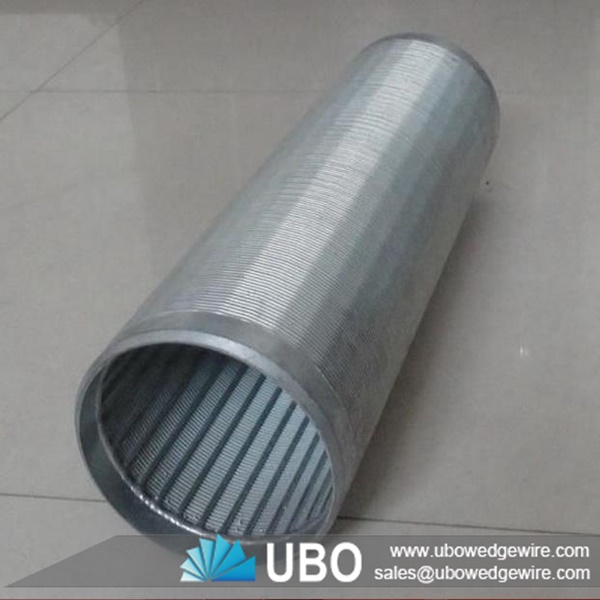

Stainless steel Wedge Wire screen tube for ground water

Specifications of Stainless Steel Wedge Wire Screen Tube for Ground Water:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Wedge Wire Screen Tube for Ground Water:

transportation
