Stainless Steel Vee Wedge Wire Screen Tube

More Views

Stainless Steel Vee Wedge Wire Screen TubeStainless Steel Vee Wedge Wire Screen TubeStainless Steel Vee Wedge Wire Screen Tube

Stainless Steel Vee Wedge Wire Screen Tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Vee Wedge Wire Screen Tube

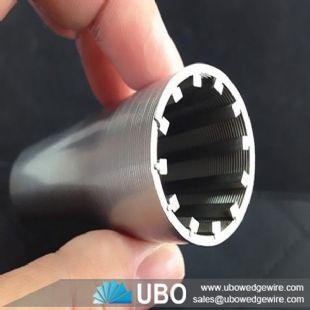

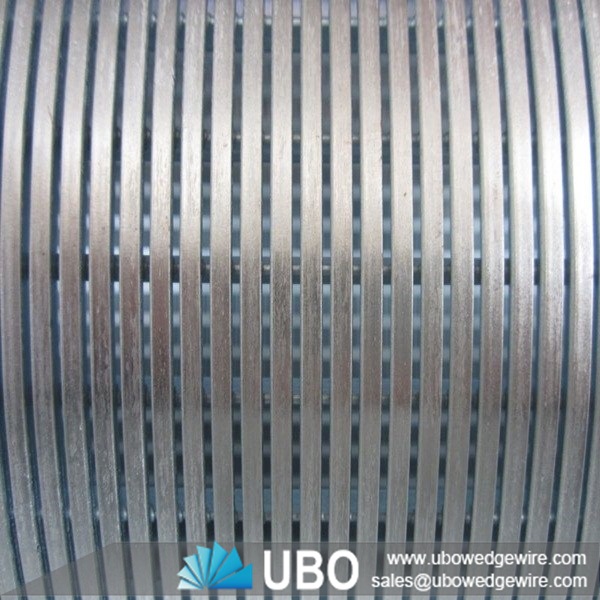

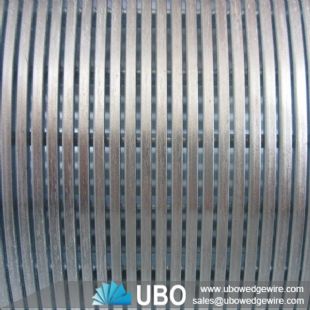

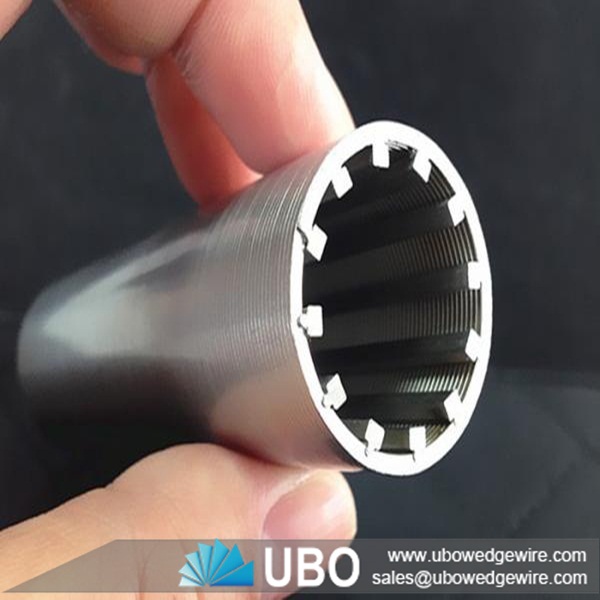

The stainless steel looped wedge wire screen tube consist of V shape profile wire and the longitudinal support rods. Each intersecting point the V shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to these wires is fushion welded, so it has studry construction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better. Meanwhile, the slot can change according to the real condition of the earth. if you are interested in our products, please contact us for accurate information.

Application of Stainless Vee Wedge Wire Screen Tube

The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Wedge Wire screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Wedge Wire screen can be used in many kinds of medium filtering.

Features of Stainless Steel Vee Wedge Wire Screen Tube

1) The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.

2) Even filter pores, high permeability and anti-blocking.

3) Large filtering area, small flow resistance and high oil extraction rate

4) Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.

5) Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

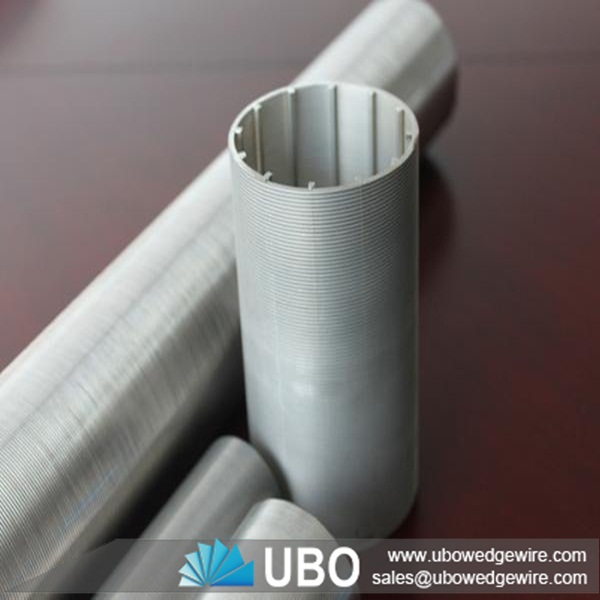

stainless steel looped wedge wire screen tube

Specifications of Stainless Steel Vee Wedge Wire Screen Tube:

stainless steel looped wedge wire screen tube


Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Vee Wedge Wire Screen Tube:

Package: in wood case

Delivery: 5-25 days.
