Stainless Steel 200 micron Wedge Wire Screen
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel 200 micron Wedge Wire Screen

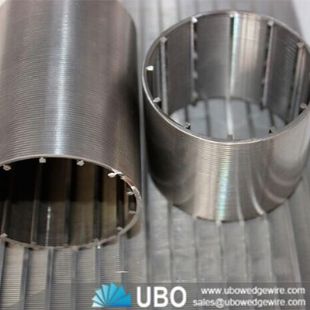

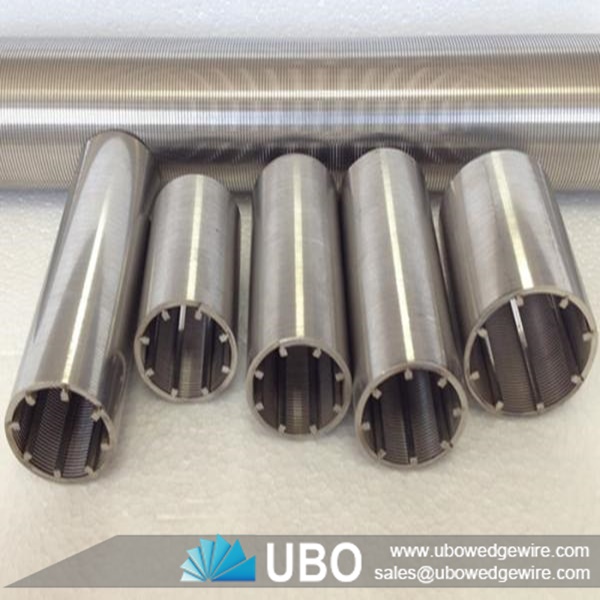

Stainless steel 200 micron wedge wire screen is a pipe base wire wrapped screen available in several designs, customized to well demands.
These screens are used in stand-alone completions with well sorted formations or in combination with gravel pack completions.
The advanced wire wrapped screen technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.
A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.
The result is a reliable and robust solution for sand free production in vertical and horizontal wells with gravel pack or stand alone completions.
Features of Stainless Steel 200 Micron Wedge Wire Screen
The Sand Free Screen design provides;
Tensile, load, collapse strength
Rotating ability during installation
High corrosion resistance
Very accurate slot opening
Minimum risk cementing up
Uncomplicated installation
Customized Design of Stainless Steel 200 Micron Wedge Wire Screen
The design is customized to your demands;
Slot opening from 50 micron up to 2000 micron
All API and ANSI pipe sizes are available
Customized construction:
Lower V-wires for reduced OD
Higher support rods for more standoff
Customized material grades 304/316L/904/Duplex/Alloy 825/625/C276 etc.
Customized end-fittings and threaded connections
Fixation of screen by welding or shrink fitting of end-rings to the base-pipe
Characteristics of Stainless Steel 200 Micron Wedge Wire Screen

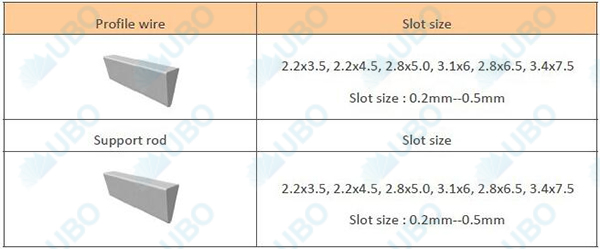

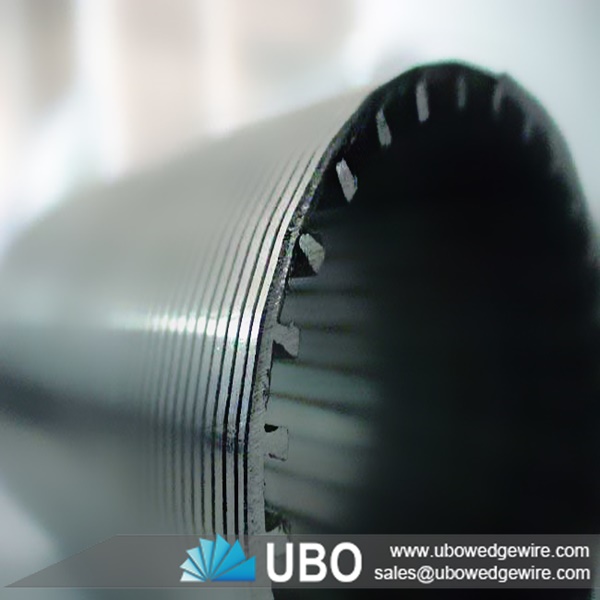

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.
Application of Stainless Steel 200 Micron Wedge Wire Screen
Can also be used for hydro-geological exploration, drilling, drilling, construction, reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources.
Specifications of Stainless Steel 200 micron Wedge Wire Screen:
1) Materials: stainless steel and low carbon steel, such as 304 302 304L 316 316L Q235, and they can be made according to the customers requirement.
2) Diameter:33-600mm (1-20inch)
3) Slot:0.05,0.1,0.2,0.5,0.75,1,1.5,2mm
4) Length:1-10m(5.8m for the 20ft container)
5) Standard: ISO, API
6) Connection: Welding, Thread (STC,LTC,BTC),Flange
