Quality Wedge Wire Screen Manufacturer in China

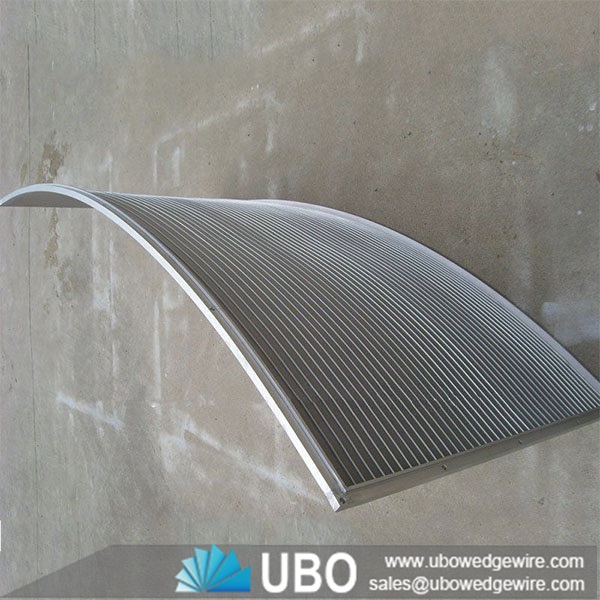

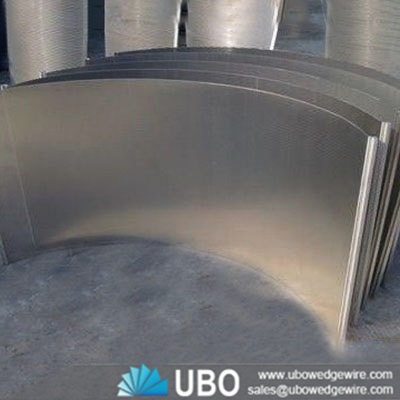

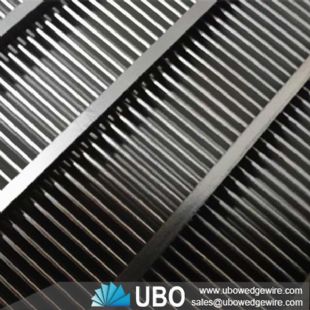

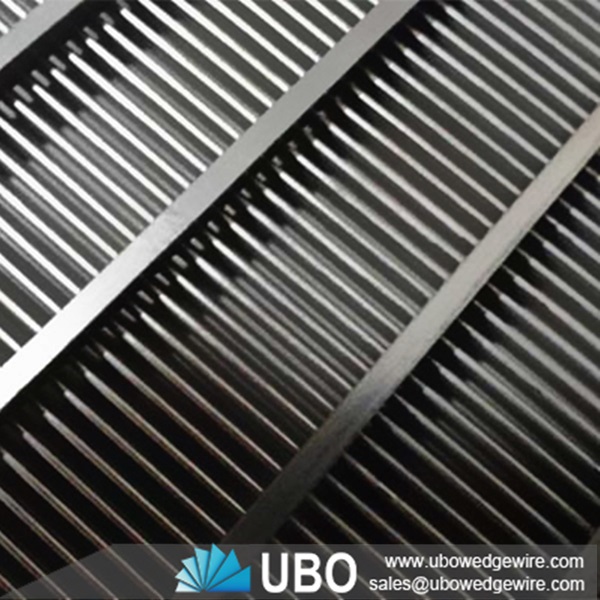

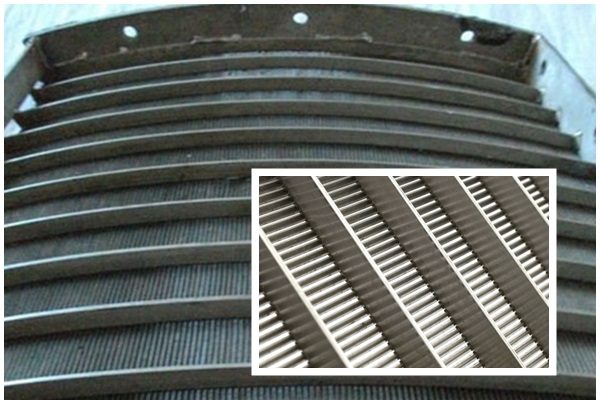

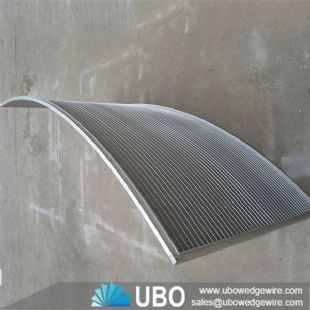

stainless steel wedge wire sieve bend screen

More Views

stainless steel wedge wire sieve bend screenstainless steel wedge wire sieve bend screenstainless steel wedge wire sieve bend screen

stainless steel wedge wire sieve bend screen

Category:Sieve Bend Screen
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:sieve bend screen
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment;

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire sieve bend screen

    Sieve plate is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Usages of stainless steel wedge wire sieve bend screen :

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Characteristic of stainless steel wedge wire sieve bend screen :

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Advantage of stainless steel wedge wire sieve bend screen :

1 Excellent roundness
2 Very good slot width precision
3 High mechanical load capacity
4 No form closure connection that would allow vibration of the profiled bars
5 Automated welding process for high-precision manufacturing
6 Perfectly adjusted screen basket profiles
7 Available for all screens
8 Surface finishing as required

stainless steel wedge wire sieve bend screen

Specifications of stainless steel wedge wire sieve bend screen:

stainless steel wedge wire sieve bend screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of stainless steel wedge wire sieve bend screen:

stainless steel wedge wire sieve bend screen
