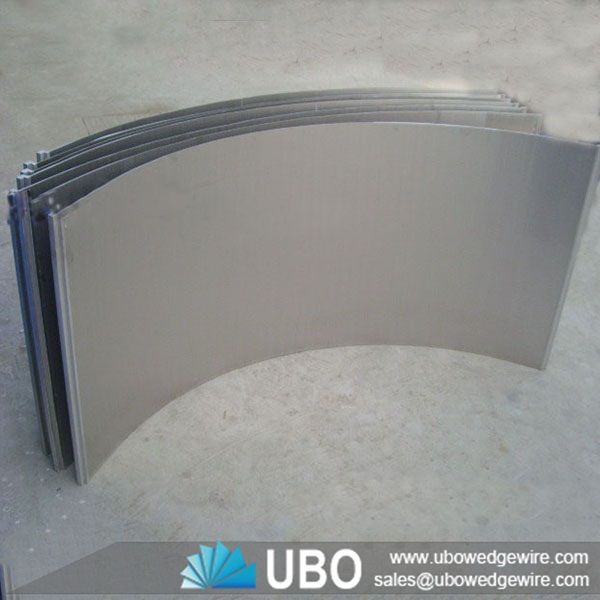

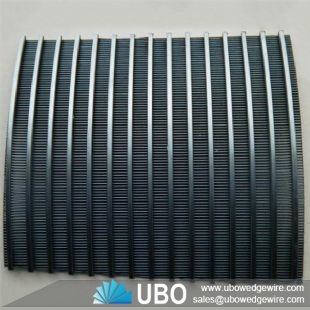

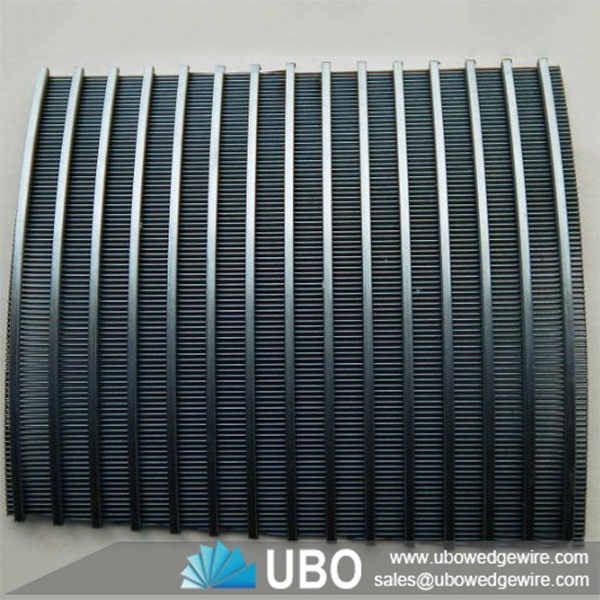

stainless steel Wedge Wire sieve bend screen for coal
Category: | Sieve Bend Screen |
---|---|
Material: | Galvanized low carton (LCG), Stainless steel(SS) |
Properties: | sieve bend screen |
Application: | separating;Sizing;Straining;De-watering;Filtering;Drying;Water intake |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of stainless steel Wedge Wire sieve bend screen for coal

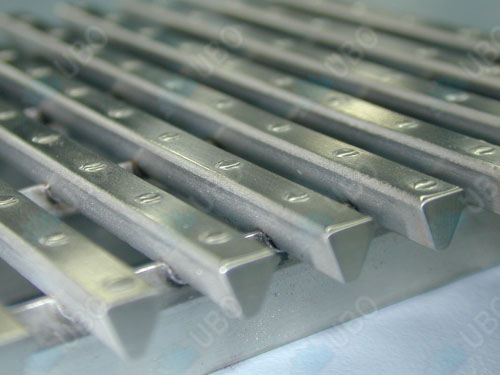

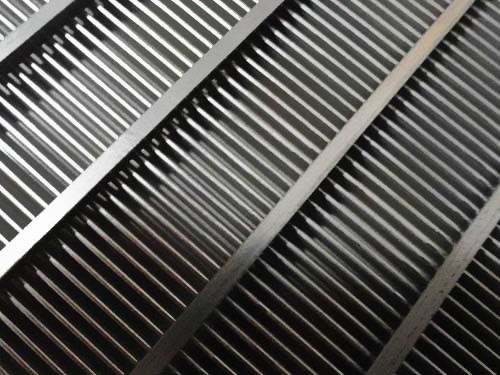

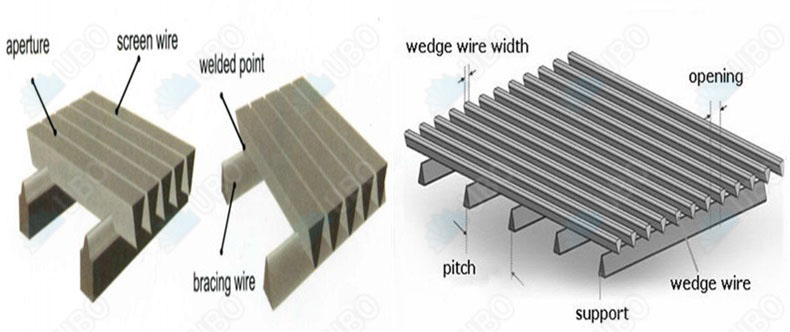

Wedge wire screen is manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded.
Applications for Stainless Steel Wedge Wire Sieve Bend Screen for Coal:
Used for separating;Sizing;Straining;De-watering;Filtering;Drying;Water intake;Media retention.
Features for Stainless Steel Wedge Wire Sieve Bend Screen for Coal:
-- More open area;
-- Precise openings;
-- Maximum design flexibility;
-- Stronger and more durable, economical;
-- Easier installation and long-term operating etc.
Futures for Stainless Steel Wedge Wire Sieve Bend Screen for Coal:
• Energy efficient--operate with no moving parts and with no energy input
• Space effficient-- treats up to 122 liters per second per square meter of floor space
• Quite operation--no moving parts mean no mechanical or electrial vibrations
• Accurate size-- can be used for sizing solid particles down to 0.2mm
Specification for stainless steel sieve bend Wedge Wire screens:
Specifications of stainless steel Wedge Wire sieve bend screen for coal:
Material:Galvanized low carton (LCG), Stainless steel(SS)
Wedge Wire (mm):Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm Slot Size:0.02 -- 6.00mm ,also can be customized as your request.
Length:Max 6 meters.
Out Diameter:25mm -- 1200mm.
End Connection:Plain beveled ends, flanged or threaded couplings
Note: Other specifications can be customized according to your requirement.
