Sieve Bend Screen wedge wire welding screen panels

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Sieve Bend Screen wedge wire welding screen panels

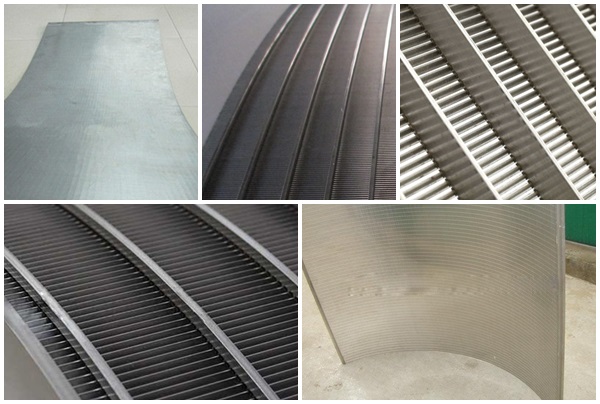

    A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

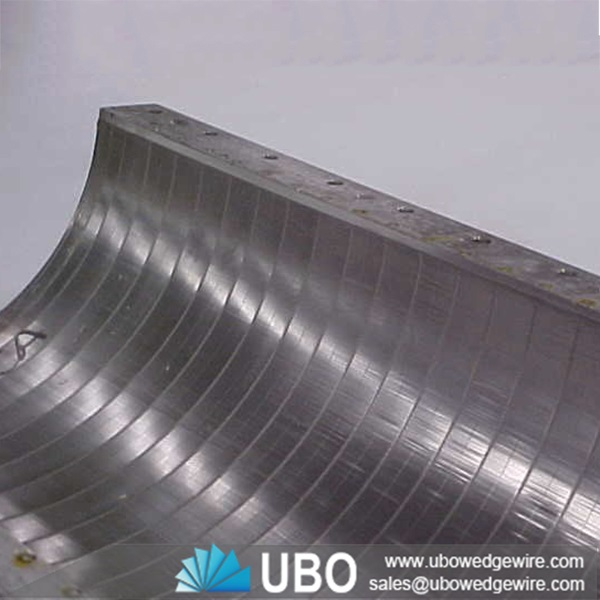

Sieve Bend Screen Wedge Wire wedge wire welding screen panels

Used for Sieve Bend Screen wedge wire welding screen panels:

Sieve bend screening unit is the answer to many de-watering, sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.

Advantages for Sieve Bend Screen wedge wire welding screen panels:

High open area
Quick filtration
Economical solution, also for refurbishing of existing lauter tuns
Accurate filter rating
Longer service life
Low maintenance costs
Possible to build-in in existing equipment(custom made)

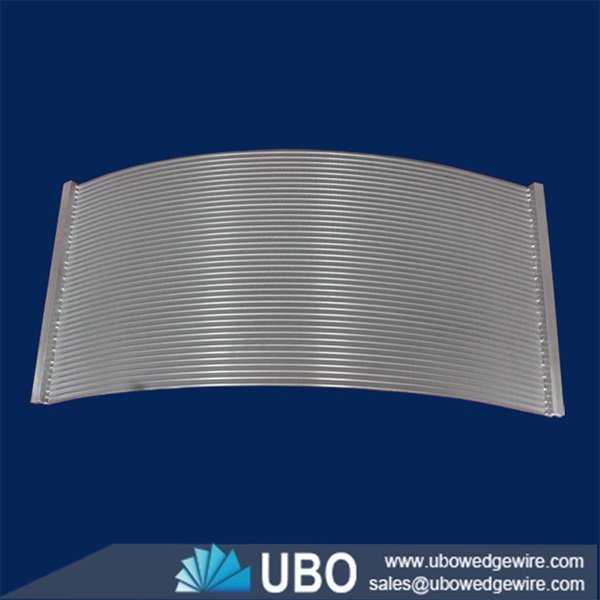

Sieve Bend Screen Wedge Wire wedge wire welding screen panels

Specifications of Sieve Bend Screen wedge wire welding screen panels:

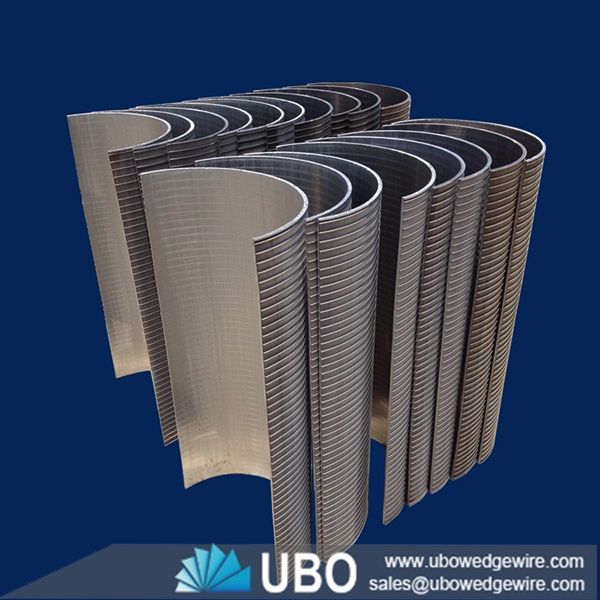

Sieve Bend Screen Wedge Wire wedge wire welding screen panels

Model NO.
Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
ZNS 0.3
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
ZNS 0.6
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
ZNS 0.9
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
ZNS 1.2
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
ZNS 1.5
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
ZNS 2
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
ZNS 3
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~22

Packaging and Transportation of Sieve Bend Screen wedge wire welding screen panels:

Sieve Bend Screen Wedge Wire wedge wire welding screen panels
