Sieve Bend Screen For Starch Making Equipment

More Views

Sieve Bend Screen For Starch Making EquipmentSieve Bend Screen For Starch Making EquipmentSieve Bend Screen For Starch Making Equipment

Sieve Bend Screen For Starch Making Equipment

Category:Sieve Bend Screen
Material:AISI316L, AISI316, AISI304, AISI312, AISI430, etc
Properties:wedge wire sieve bend screen
Application:mineral processing, coal washing plants and preparation, fish processing, fruit jouce processes, canneries, sugar mills, starch making and so on

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Sieve Bend Screen For Starch Making Equipment

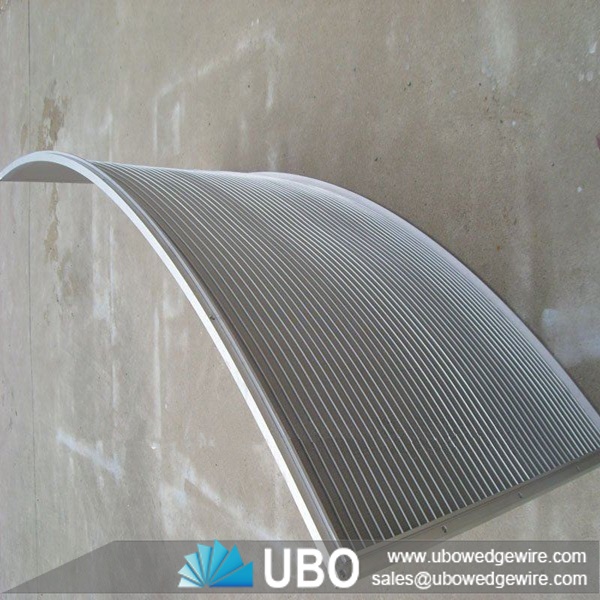

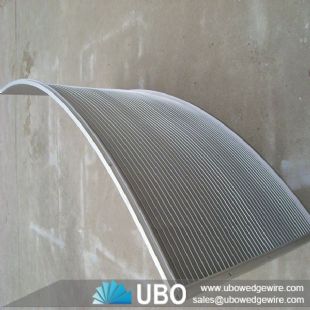

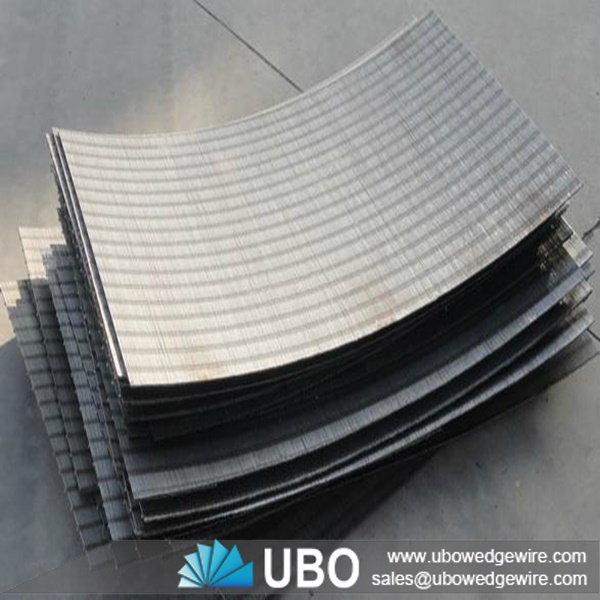

Wedge Wire Sieve Bend Screen

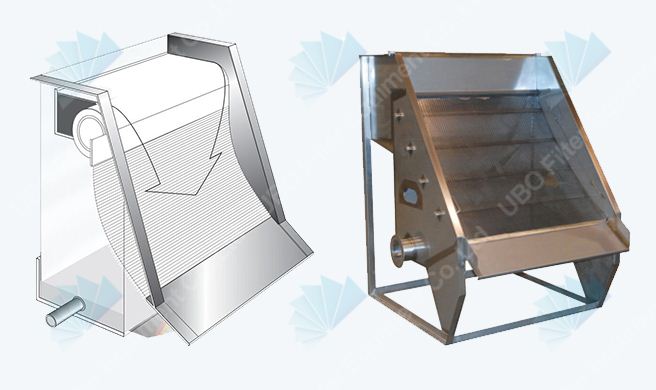

The wedge wire sieve bend screen, also known as the wedge wire run down screen, wedge wire side hill screen, DSM screen, Parabolic screen, wedge wire curve screen and so on. The sever bend screen could be custom made and designed according to the application. They are usually used to separate solids from liquids. The curved screen of sieve bend provides greater capacity than flat wedge wire screen due to increased gravitaonal forces on material frowing against the curve.


Specification of Wedge Wire Sieve Bend Screen


·Various Material could be choose, AISI304, AISI316L, AISI430, AIDI201 and so on.

·Any size could be custom made

·Slot could be also custom made, the minimum is 0.02mm.

·Every kind profile wires are available

·Various support rod could be used

·Custom made angle

·Could weld the frame as request

sieve bend screen  for starch making equipment


Idea for Features and Benefits


·Mineral processing ·Could be custom made and design

·Coal washing plants and preparation ·Long service life

·Fish processing ·Energy efficient operation with no

·Fruit juice processes moving pars and no energy input

·Canneries · Easy to clean a

·Sugar Mills ·Not easy to jam

·Sewage Treatment

·Pulp and paper mill

·Corn wet Milling

·Gold recovery

·Other industry

sieve bend screen for starch making equipment

Specifications of Sieve Bend Screen For Starch Making Equipment:

Specification of Sieve Bend Screen For Starch Making Equipment

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

Packaging and Transportation of Sieve Bend Screen For Starch Making Equipment:

Package: in wood case
Delivery: 5-25 days.
