Sieve Bend Screen/ wedge wire welding screen

More Views

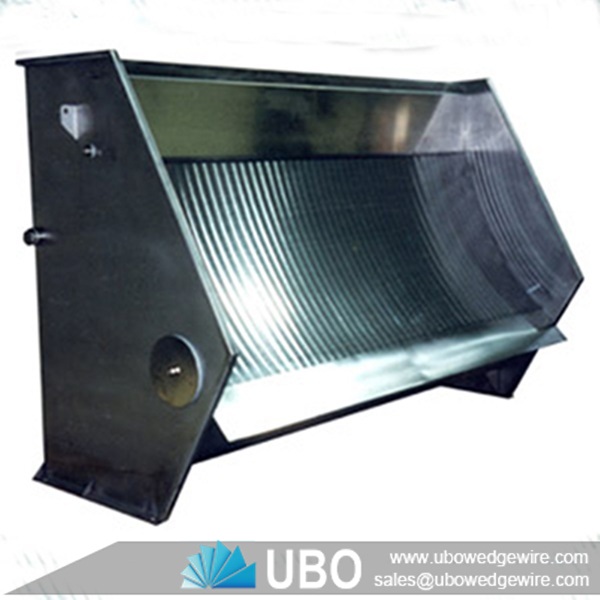

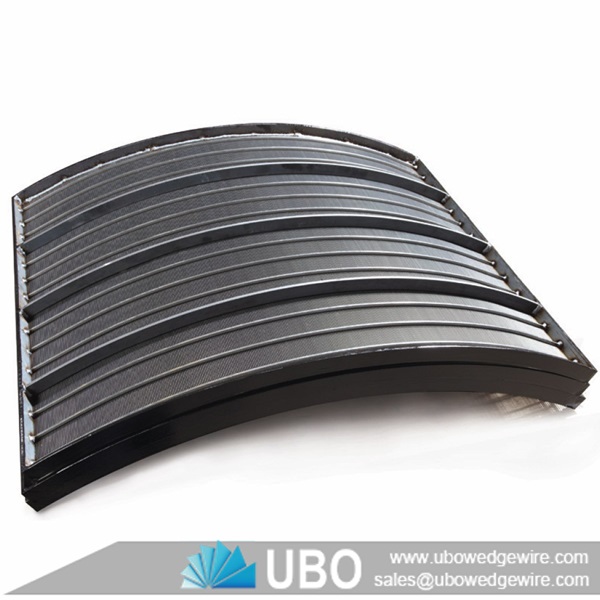

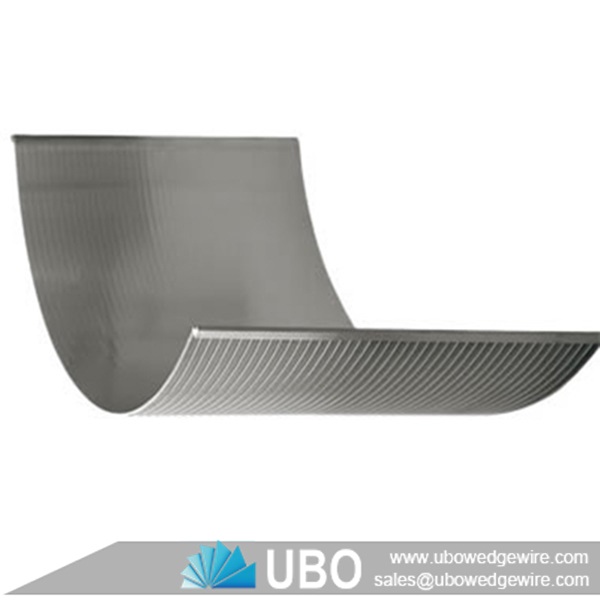

Sieve Bend Screen/ wedge wire welding screenSieve Bend Screen/ wedge wire welding screenSieve Bend Screen/ wedge wire welding screen

Sieve Bend Screen/ wedge wire welding screen

Category:Sieve Bend Screen
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:water treatment equipment, environment protection,the sea water desalination,water softening treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Sieve Bend Screen/ wedge wire welding screen

    Wedge wire sieve bend screen is a high efficiency curve separate madia by wet material pressure.Vee wedge wire screen have high strenthen and carrying capacity,the V wire make sure the screen will not block,easy clean,working very long time.The curve screen made by Nanrui with high accuracy and can instead of all Wedge Wire screen.

Sieve Bend Screen/ wedge wire welding screen



Applications for Sieve Bend Screen/ wedge wire welding screen:

Can be parts of deep well pumps or submersible pumps;can be used for water treatment equipment, environment protection,the sea water desalination,water softening treatment,oil and chemical processing; terminal filtration for petrolic products,filtration for chemical acid and soda liquid,for alcohol and other organic solvents recycle filteration.

Chracteristic for Sieve Bend Screen/ wedge wire welding screen:

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

Advantage for Sieve Bend Screen/ wedge wire welding screen:

1 Excellent roundness
2 Very good slot width precision
3 High mechanical load capacity
4 No form closure connection that would allow vibration of the profiled bars
5 Automated welding process for high-precision manufacturing
6 Perfectly adjusted screen basket profiles
7 Available for all screens
8 Surface finishing as required

Sieve Bend Screen/ wedge wire welding screen

Specifications of Sieve Bend Screen/ wedge wire welding screen:

Sieve Bend Screen/ wedge wire welding screen

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Sieve Bend Screen/ wedge wire welding screen:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearlymarked with:
Name & identification mark of manufacturer
Batch number
Date of manufacture
Material
Safe heating & application temperature
