304 wedge wire curve screen panel for filtration

More Views

304 wedge wire curve screen panel for filtration304 wedge wire curve screen panel for filtration304 wedge wire curve screen panel for filtration

304 wedge wire curve screen panel for filtration

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 304 wedge wire curve screen panel for filtration

The 304 wedge wire curve screen panel consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface

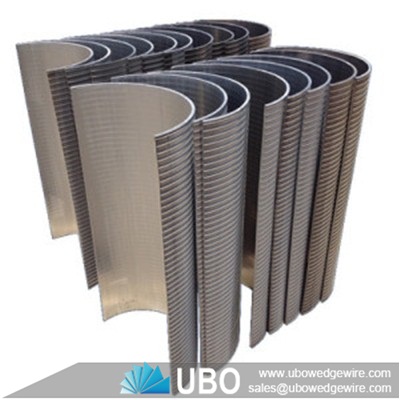

304 wedge wire curve screen panel for filtration

Advantages of 304 wedge wire curve screen panel for filtration

1 A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2 A "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3 A uniform and efficient well development due to the continuous slot opening.
4 Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5 Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Used of 304 wedge wire curve screen panel for filtration

The uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.

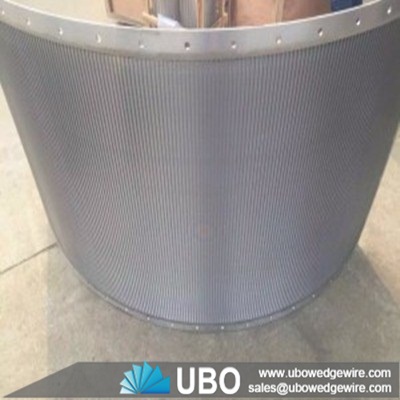

304 wedge wire curve screen panel for filtration

Specifications of 304 wedge wire curve screen panel for filtration:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º  30º   60º  120º and as your special request

wedge wire screen curve panel

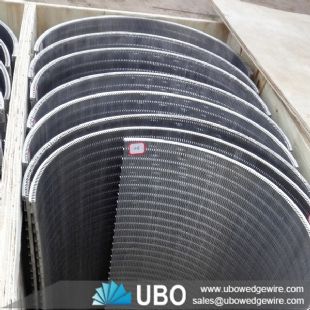

Packaging and Transportation of 304 wedge wire curve screen panel for filtration:

transportation
