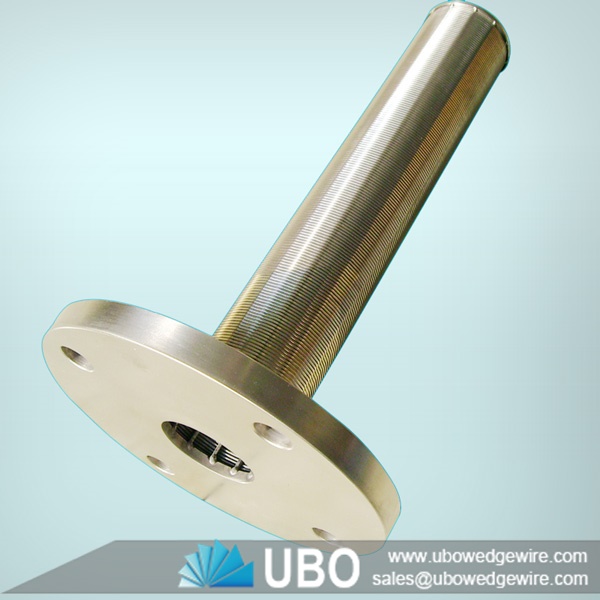

stainless steel wedge wire screen resin trap

More Views

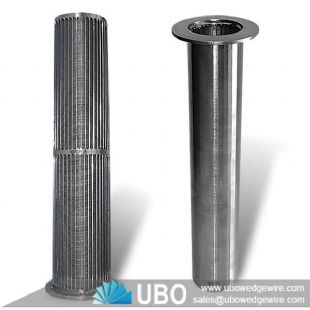

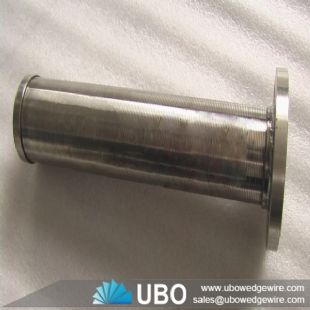

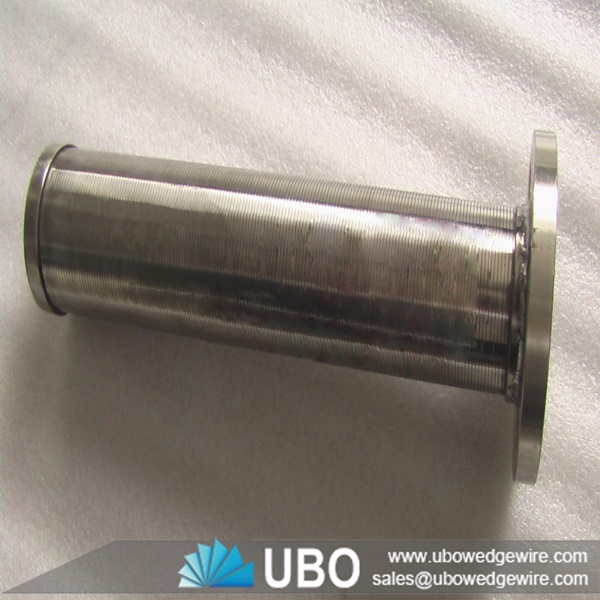

stainless steel wedge wire screen resin trapstainless steel wedge wire screen resin trapstainless steel wedge wire screen resin trap

stainless steel wedge wire screen resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire screen resin trap

The stainless steel wedge wire screen resin trap is normally a slot tube, but can also be a cylinder. A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.

Principle of stainless steel wedge wire screen resin trap

A resin trap/strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low, so that cleaning can be done during flow interruption.

Advantages of stainless steel wedge wire screen resin trap

High open area
Quick filtration
Economical solution, also for refurbishing of existing lauter tuns
Accurate filter rating
Longer service life
Low maintenance costs
Possible to build-in in existing equipment(custom made)

Features of stainless steel wedge wire screen resin trap

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Application of stainless steel wedge wire screen resin trap

Pressure Screens are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

stainless steel wedge wire screen resin trap

Specifications of stainless steel wedge wire screen resin trap:

stainless steel wedge wire screen resin trap

stainless steel wedge wire screen resin trap

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Connection:thread or flange, according to your special requirement

Packaging and Transportation of stainless steel wedge wire screen resin trap:

transportation
