ss wedge Wedge Wire screen resin trap

More Views

ss wedge Wedge Wire screen resin trapss wedge Wedge Wire screen resin trapss wedge Wedge Wire screen resin trap

ss wedge Wedge Wire screen resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

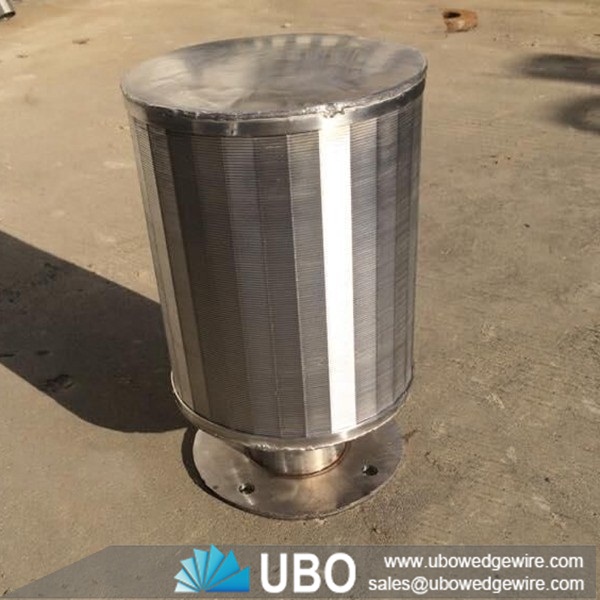

Details of ss wedge Wedge Wire screen resin trap

SS wedge Wedge Wire screen resin trapare used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly.
UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Uses of ss wedge Wedge Wire screen resin trap

The resin trap is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantages of ss wedge Wedge Wire screen resin trap

very precise slots for perfect particle retention combined with minimum obstruction of the process flow.flexibility in design.strong construction (self supporting).large open area.plug-resistant slot design.please tell us your demand and then we design ,manufacture for you.

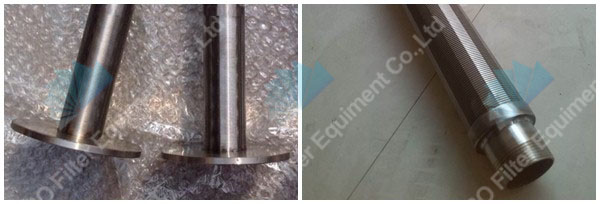

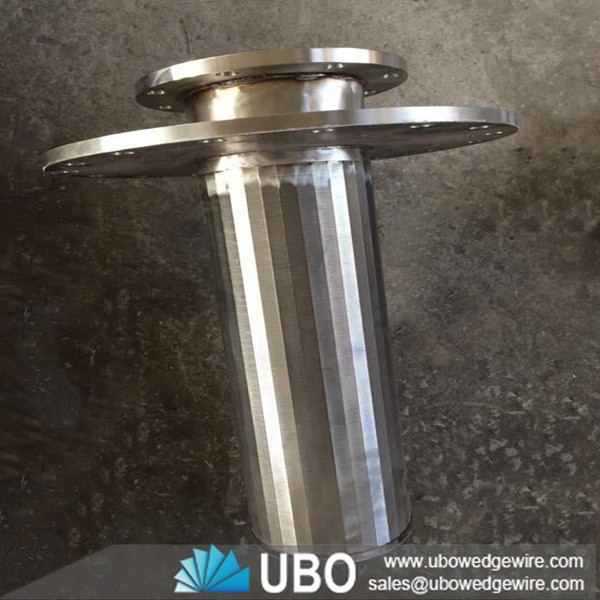

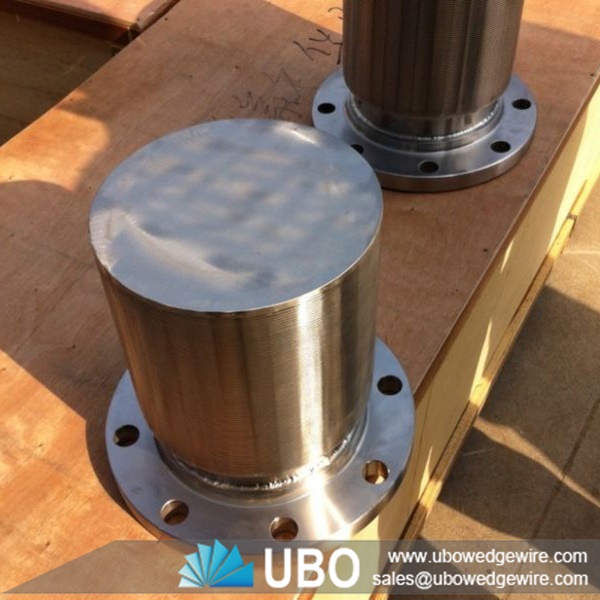

Construction of ss wedge Wedge Wire screen resin trap

the wedge wire element in a resin trap/ strainer is normally a slot tube, but can also be a cylinder. a resin trap / strainer is normally closed on one side and has a flange on the other. they can be made for flow-in-to-out (fito) or flow-out-to-in (foti) filtration.

ss wedge Wedge Wire screen resin trap

Specifications of ss wedge Wedge Wire screen resin trap:

Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2  0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150,

200

442,496,547,

600,654,705,

758,812,863,

916,970,1021,

1074,1128,1179,

1232, 1286

ss wedge Wedge Wire screen resin trap

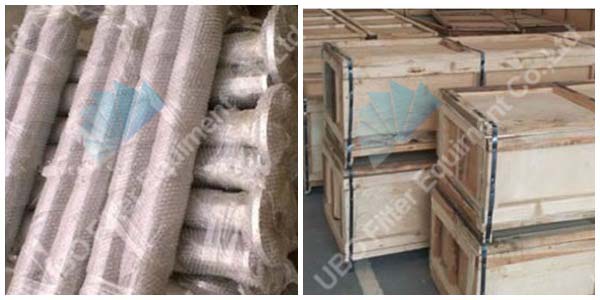

Packaging and Transportation of ss wedge Wedge Wire screen resin trap:

packing
