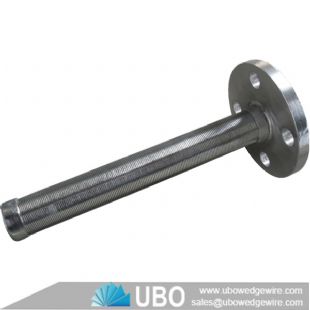

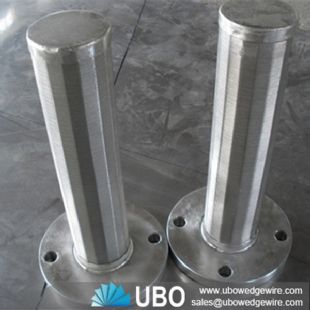

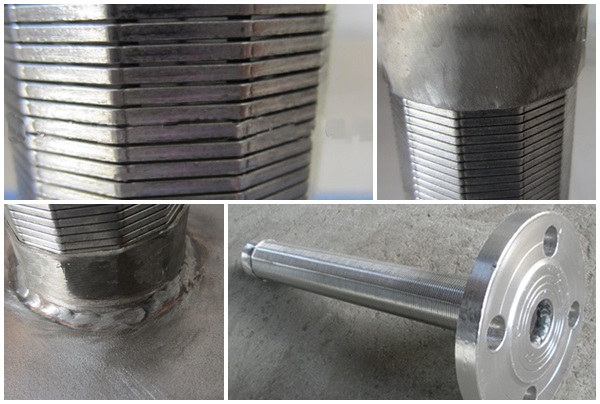

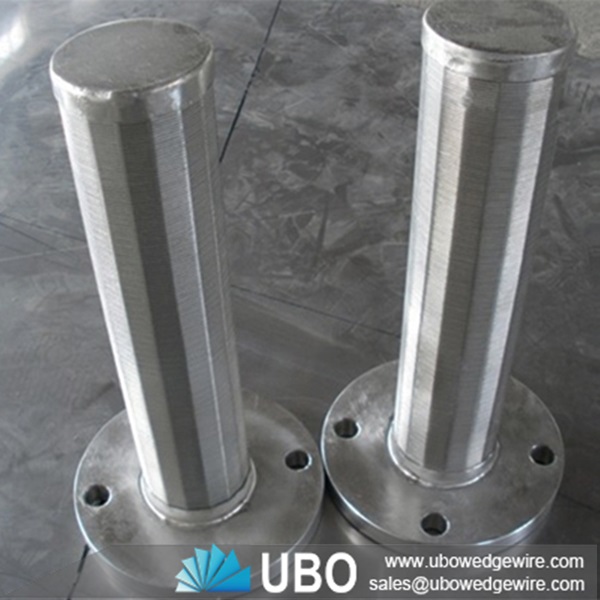

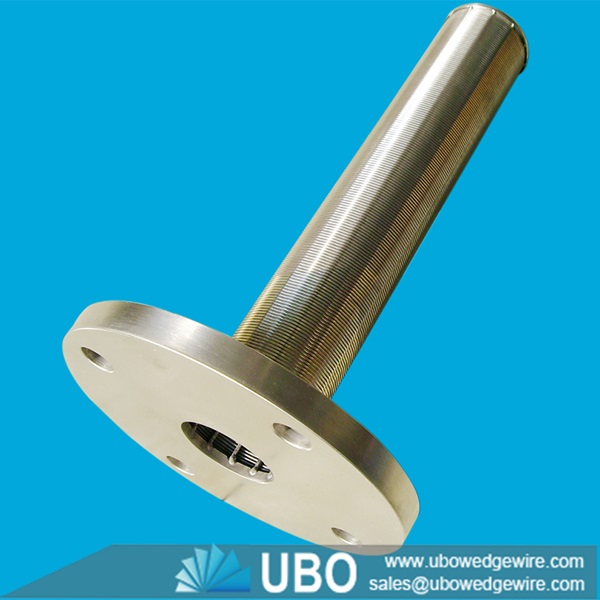

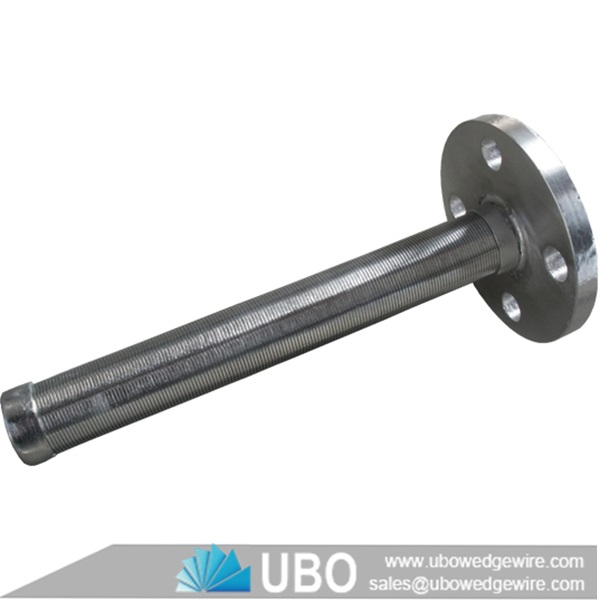

Stainless Steel Wedge Wire Welded Resin Traps

A resin trap is a safety device used on the overflow lines of ion exchange units, high-purity water systems and activated carbon and media filters.

In many systems, a valve failure can allow media to escape from the treatment vessel. Not only is the loss of expensive media significant, but damage can easily occur to downstream pumping equipment.

Resin traps, placed inline, provide positive protection. The traps can be designed to capture media particles of any size.

Usages for Stainless Steel Wedge Wire Welded Resin Traps:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Principle for Stainless Steel Wedge Wire Welded Resin Traps:

A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.

Advantages for Stainless Steel Wedge Wire Welded Resin Traps:

• Continuous slot design, allowing traps to capture media particles of any size, providing sufficient open

area to let process flow move smoothly

• Stainless steel construction (other alloys can be used, depending on pressure and temperature)

• Various options for sizes, shapes and connections, depending on process flow characteristics

Pressure loss:0.01-0.03Mpa
Working power supply:380v,AC 50HZ
Filtration precision:less than 6mm
Water volume for back-washing:less than 3% design flow
Hole shape:round
Length:R1 R2 R3,up to 6m
Wire type:wedge wire
Filter rating:60% up
Slot size:0.1min
Width:1000mm
Thickness:10mm
Diameter:25-1500mm
Surface treatment:polishing,chroming

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
