Stainless Steel Wedge Wire Screen for Resin Traps

More Views

Stainless Steel Wedge Wire Screen for Resin TrapsStainless Steel Wedge Wire Screen for Resin TrapsStainless Steel Wedge Wire Screen for Resin Traps

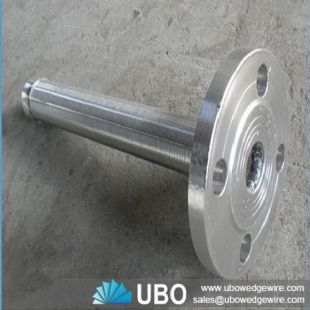

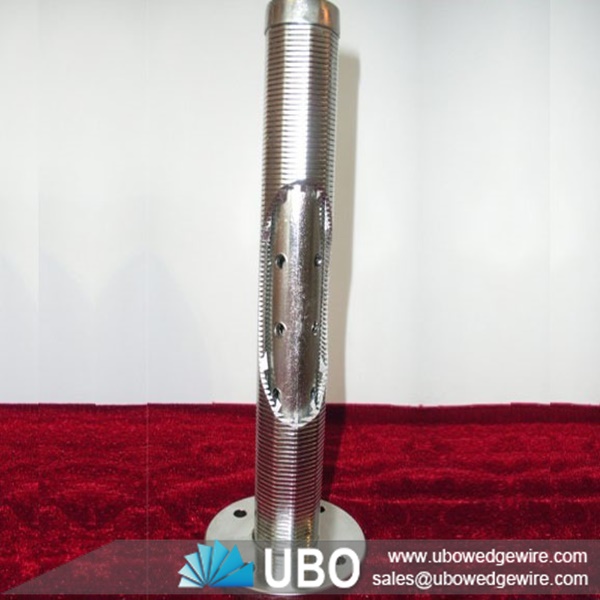

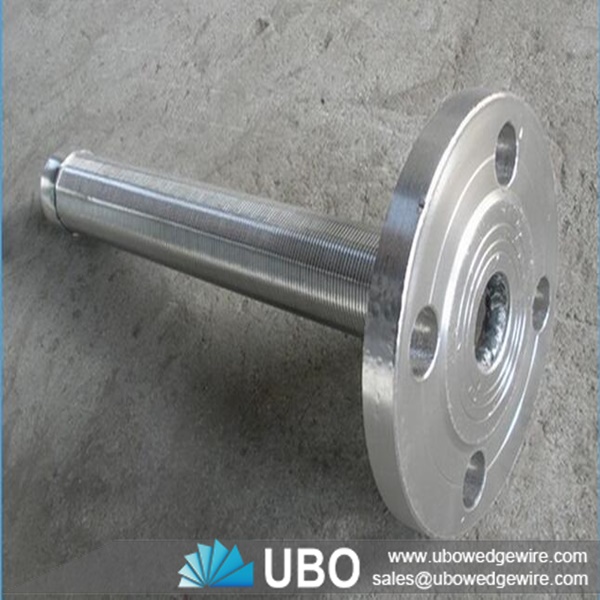

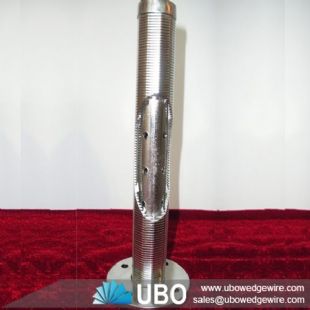

Stainless Steel Wedge Wire Screen for Resin Traps

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen for Resin Traps

Stainless steel wedge wire screen for resin traps is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

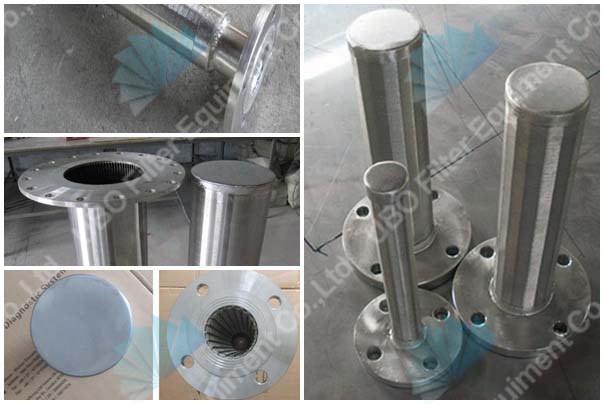

stainless steel wedge wire screen for resin traps

Features of Stainless Steel Wedge Wire Screen for Resin Traps

1) filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.

2) trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.

3) resin trap all connected by welding, durable, long life.

4) After working for some time,can filter backwash, multiple use

Application of Stainless Steel Wedge Wire Screen for Resin Traps

1) feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation

2) precious metals catalysts recovery for hydrogenation system

3) Catalytic outer rejection oil automatic backwash cleaning filter system

4) purification of liquid sulphur filter

5) lubricants and heat-conducting oil filter

6) paraffin raw materials and products of filter

7) the rich amine liquid backwash purification filter in the amine desulfurization system

8) high-temperature coal gas, smoke gas and oil gas purification

9) raw materials of paraffin wax and backwash purification filter

10) the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology

Features of Stainless Steel Wedge Wire Screen for Resin Traps

•  Reduced costs, since wedge wire screens have a very long life.

•  Greater resistance to stresses of different pressure and temperature.

•  Maximum effective flow area & operating efficiency is maintained.

•  Costly downtime for cleaning plugged screens is minimize.

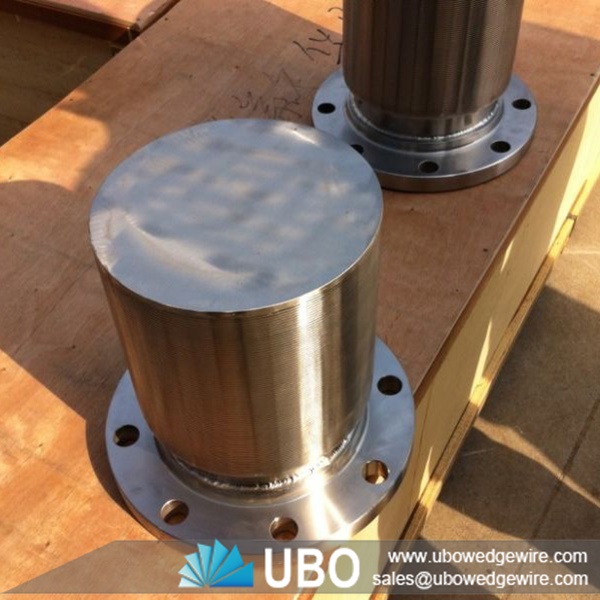

stainless steel wedge wire screen for resin traps

Specifications of Stainless Steel Wedge Wire Screen for Resin Traps:

Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2  0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150,

200

442,496,547,

600,654,705,

758,812,863,

916,970,1021,

1074,1128,1179,

1232, 1286

Packaging and Transportation of Stainless Steel Wedge Wire Screen for Resin Traps:

Package: in wood case

Delivery Time: 5-25 days
